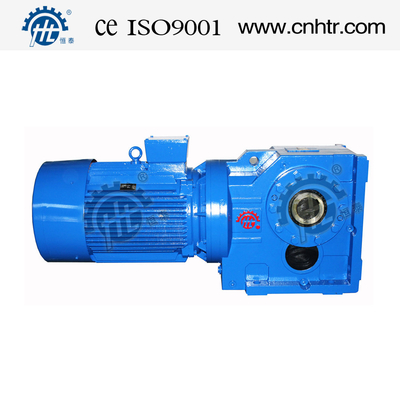

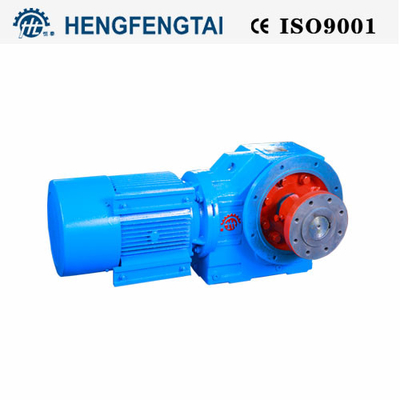

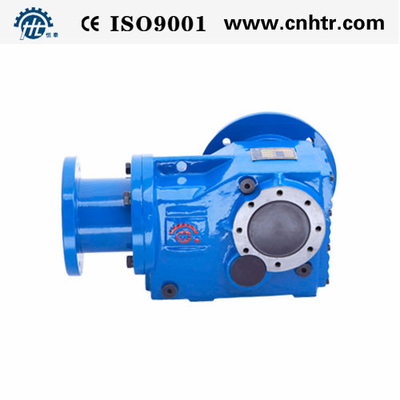

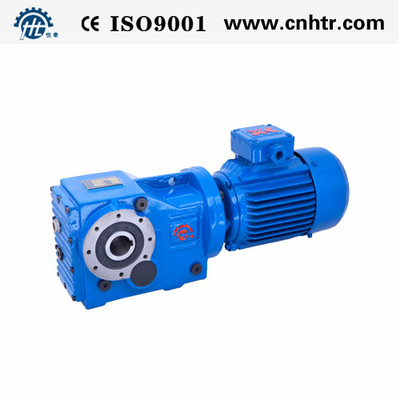

HK Series Helical Bevel Foot Mounted Gearbox with AC Motor For Conveyor Application

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name HENGTAI
Certification CE,ISO9001:2008,TUV,SGS
Model Number HK series
Minimum Order Quantity 10PCS
Price USD150-5000/PCS
Packaging Details Wooden Case, Standard Export Package.
Delivery Time 30 DAYS
Payment Terms L/C, T/T
Supply Ability 10000 PCS PER YEAR
Product Details
Ratio Up To 200 Model Numbe HK37-187
Mounting Position Foot Mounted Output Torque Up To 27200Nm
Rated Power Up To 200kw Input Speed Up To 2000RPM
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

HK Series Helical Bevel Foot Mounted Gearbox with AC Motor For Conveyor Application​:


The K series of right angle gearmotors is the first product to prove equally good in regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.

We have test the K series of right angle gearmotors after 50, 000 operating hours, the result showed that the K series of right angle gearmotors do not reveal any noticeable wear.

Our K series of right angle gearmotors do not have any thermal restrictions because of optimum lubrication compact and space-saving design low friction.

Products Benefits:

1. The manufacturing history of HKA more than 10 years.

2. Have the strong and professonal technical term design and remould for HK.

3. We can produce HKA series according to your special requirement, like the dimension, structure and performance.

Warranty.:

The quality warranty date is 18 months from the shipping date for order.

HFT guarantees the products sold for one year after you received. Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.

The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased

Competitive Advantage:

1. HFT total registered capital in RMB 58, 000, 000. We had 2 sub companies located in Binghai& Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.


2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more than 40 professional technical engineers. We had 49 items patents including 7 items of invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent and 5 items which are accepted by National SIPO wait for approval


3. According to the globalization strategy, we have established pre-sale, after-sale and whole-process selling network. Relying on high quality products and perfect service, our products have been successfully applied by more than 5000 customers.



Model 37 47 57 67 77 87 97 107 127 157 167 187
Structure K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW 0.12~3 0.12~3 0.12~4 0.18~5.5 0.37~11 0.75~22 1.1~30 3~45 7.5~90 11~160 15~200 15~200
Transmission Ratio   i 4.09~ 106.6 4.66~ 131.7 4.68~ 143.5 7.1~ 646.2 7.11~ 192.7 7.42~ 195.2 8.88~ 176.5 8.72~ 147.2 8.6~ 144.4 12.7~ 151.1 17.3~ 161 17.1~ 180.7
Allowed Torque  Nm 170 340 510 705 1320 2300 3670 6800 11050 15300 27200 42500
Weight   kgs 12 22 30 37 63 94 145 275 420 680




About HK:



HK Series Helical Bevel Foot Mounted Gearbox with AC Motor For Conveyor Application 0

HK Series Helical Bevel Foot Mounted Gearbox with AC Motor For Conveyor Application 1



Company Information:


Zhejiang Hengfentai Reducer Mfg. Co.,Ltd was established in 1991, with the development of more than 24 years, we have accomplished the following achievements:

Main product: Reducers, Mixing equipments, Thickener tank, Aluminum process equipments etc.



R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.



Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 450 personnel, and advanced equipments & machines.



Turnover of last year: 50Million USD
