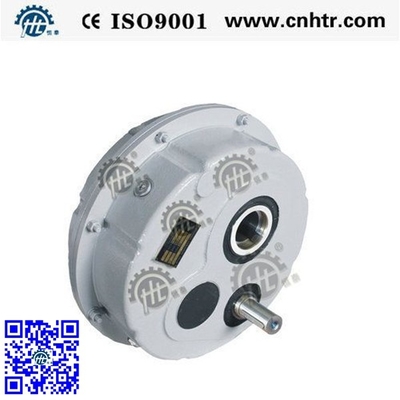

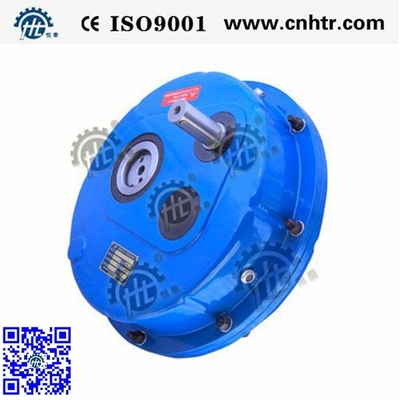

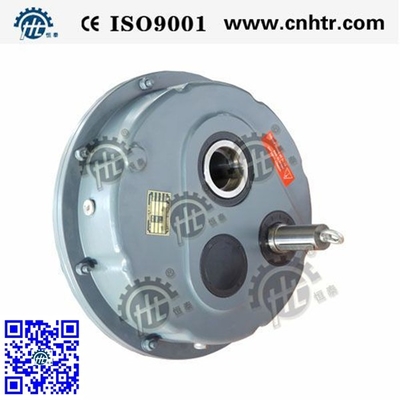

Shaft Mounted Hollow Shaft Worm Gear Reducer Up To 17000Nm Output Torque

  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name HENGTAI
Certification CE, ISO9001:2008, TUV, SGS, etc
Model Number TA 35-125
Minimum Order Quantity 10PCS
Price USD150-3000/PCS
Packaging Details Wooden Case, Standard Export Package.
Delivery Time 7-30DAYS ACCORDING TO QTY
Payment Terms L/C, T/T, Western Union
Supply Ability 2000PCS/MONTH
Product Details
Ratio 5-31 Popular Ratio 15
Output Torque Up To 17000Nm Rated Power Up To 193Kw
Mounting Position Shaft Mounted Output Shaft Form Hollow Shaft Output
Surface Hardness Of Gear HRC58-62 Accessories Back Stop,Torque Arm,etc
Output Shaft Diameter 35-120mm
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Description:

The TA series - Shaft mounted reducer has long established itself in the
industry until becoming a best seller for the quarry and mine applications
where absolute reliability and low maintenance are key factors.
Also appreciated is the backstop option that prevents backdriving in case of
incline conveyors.



Sizes:



TA35,TA40,TA45,TA50,TA60,TA70,TA80,TA100,TA125

Ratio:5,15,20,25,30


Technical data:

Torque Range (n1= 900 min-1)
150 Nm ... 16.000 Nm

Mechanical Rating (n1= 900 min-1)
1,1 kW ... 156 kW

Gear ratios
5,0 ... 31,5

Output
Keyed hollow shaft
Up to three bore options per frame sIze

Gearcase
Sturdy cast housing suitable for outdoor installation

Backstop
Available on all frame sizes - externally accessible



Type Torque Nm
TA 30 150
TA 35 400
TA 40 900
TA 45 1.350
TA 50 2.100
TA 60 3.500
TA 70 4.900
TA 80 6.600
TA 100 10.500
TA 125 16.000




Section:



Shaft Mounted Hollow Shaft Worm Gear Reducer Up To 17000Nm Output Torque 0



Practical package to you:


Shaft Mounted Hollow Shaft Worm Gear Reducer Up To 17000Nm Output Torque 1

Shaft Mounted Hollow Shaft Worm Gear Reducer Up To 17000Nm Output Torque 2



Company Information:



 Zhejiang Hengfentai Reducer Mfg. Co.,Ltd was established in 1991, with the development of more than 24 years, we have accomplished the following achievements:



Main product: Reducers, Mixing equipments, Thickener tank, Aluminum process equipments etc.



R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.



Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 450 personnel, and advanced equipments & machines.



Turnover of last year: 50Million USD
