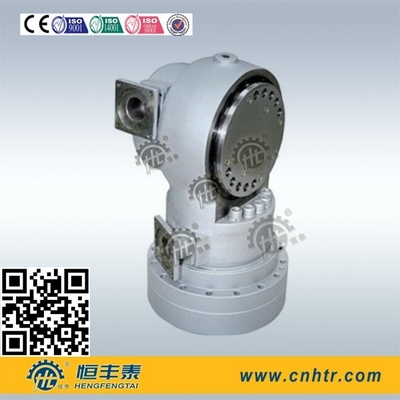

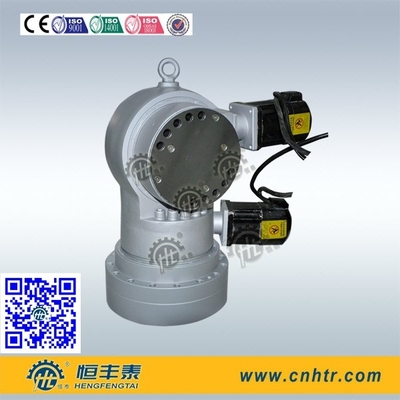

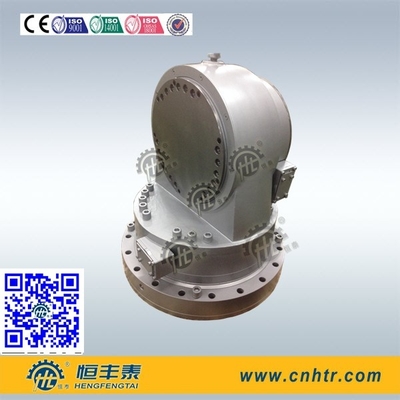

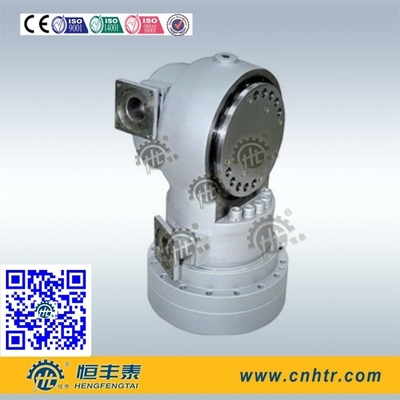

HDR Series Dual Axis Shaft Solar Heat Positioner Tracking Gear Drive For Tower System
Product Details
| Input Motor | Servo Motor | Input Power | 100-1100 W |
|---|---|---|---|
| Precision | ＜0.015° | Allowable Max.dynamic Torque | Up To 62500Nm |
| Max.stiffness | Up To 47.7Nm | Tilting Moment | Up To 125000Nm |
| High Light | planetary reduction gearbox,electric motor gear reducer |
||
Product Description
About HDR Series Dual Axis Shaft Solar Heat Positioner Tracking Gear Drive For Tower System:
1). CE, ISO9001, ISO14001
2). High precision, output backlash below 0.015° .
3). Big ratio, 20000-50000
4). Power 0.02-0.75KW
5). Horizonal and vertical dual axis output
Application areas:
Widely applied for energy, military industry, aerospace, industrial automation and other transmission equipment industries, especially for solar thermal power generation and tracking system of heliostat, the sun tracking system of photovoltaic panels, radar tracking system etc.
Model and technical details:
|
Model |
Ratio |
Max dynamic torque(N.m) |
Max static torque(N.m) |
|
|
Horizontal |
Vertical |
|||
|
HDR30 |
11088 |
8348.4 |
3150 |
4500 |
|
HDR50 |
11088 |
8348.4 |
4950 |
7030 |
|
HDR100 |
40200 |
40367.5 |
10190 |
15500 |
|
HDR190 |
40200 |
40367.5 |
18670 |
28290 |
|
HDR270 |
50250 |
50417.5 |
27500 |
45800 |
|
HDR400 |
50250 |
50417.5 |
39900 |
66500 |
|
HDR600 |
55200 |
55372.5 |
62500 |
104000 |
Competitive Advantage:
1). High-precision drive, low backlash, the inaccuracy is limited to less than 1 arc centimeter, no gap for the output shaft.
2). Big output rigidity, great loading capacity. Output with multi-tooth meshing. Capables of high loading and resisting to shock, under the same conditions the transmission capacity is bigger than worm drive 4 to 5 times.
3).Big transmission ratio, high efficiency. Combination with high-precision gears and precision rolling gears, transmission ratio is about 50, 000, the overall efficiency is higher than 68%.
4).Vertical and elevation transmission in the same housing with compact structure lead to high anti-overturning moment,with self-locking capacity.
