HH Series High Power Industrial Helical Gear Reducer With Hollow Shaft Output
| Place of Origin | Zhejiang province, China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE, ISO, TUV, SGS, etc |
| Model Number | HH series |
| Minimum Order Quantity | 10PCS |
| Price | USD1000-20000/PCS |
| Packaging Details | Wooden Case, Standard Export Package. |
| Delivery Time | 30-45 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 3000PCS PER YEAR |
Product Details
| Gearing Type | Helical Gear | Output Shaft Type | Hollow Shaft |
|---|---|---|---|
| Ratio Range | Within 400 | Heat Treatment | Yes |
| Color | Blue RAL5010 | Cooling System | Air Cooling System, Water Cooling System, Etc |
| High Light | helical speed reducer,helical bevel gearbox |
||
Product Description
Introduction of HH Helical gear reducer:
Design:
HH series gear unit is a completely new design. Advantages are:
1) Highly standard modular designed, more sizes with a reduced variety of parts.
2) Higher operational reliability combined with increased power capacity.
Mounting position:
The gear units can be supplied for either horizontal or vertical installation.
Other arrangements are also possible on request.
Long service life:
Under the condition of accurately selecting type size and the normal maintenance and use, main components(expect those easily-disabled parts) can last as long as up to more than 50,000 hours.
Low noise:
All key components are finished by precisely machining: grinding the gears; designing noise absorbing housings; accurate assembly, and finally tested, and therefore, fairly low noise is reached.
Thermal conduction:
Industrial gear units have a favorable Thermal conduction, because:
1) The gear units have a high efficiency.
2) Through enlarged housing surface areas.
3) Because large fans incorporating a new type of air conduction fan cowl are being used.
Type and Size:
HH series gear units include sizes 3-26, number of stages is 1-4, and ratio is 1.25-450.
Combining with CR, S and K series, ratio will be higher.
Technical Data:
|
Stage |
Model |
Ratio |
Nominal Power (KW) |
Nominal Torque(N.m) |
Shaft |
Mounting |
|
Single-stage |
3--19 |
1.25--5.6 |
30-4,744 |
2,200-165,300 |
S. Solid Shaft H. Hollow Shaft D. Hollow Shaft for Shrink Disk |
H: Horizontal V: Vertical M: Horizontal Design Without Feet |
|
Double-stage |
4--26 |
6.3--28 |
21-5,193 |
5,900-843,000 |
||
|
Three-Stage |
5--26 |
22.4--112 |
9-4,749 |
10,600-952,000 |
||
|
Four-Stage |
7--26 |
100--450 |
4.1-1,325 |
18,400-944,000 |

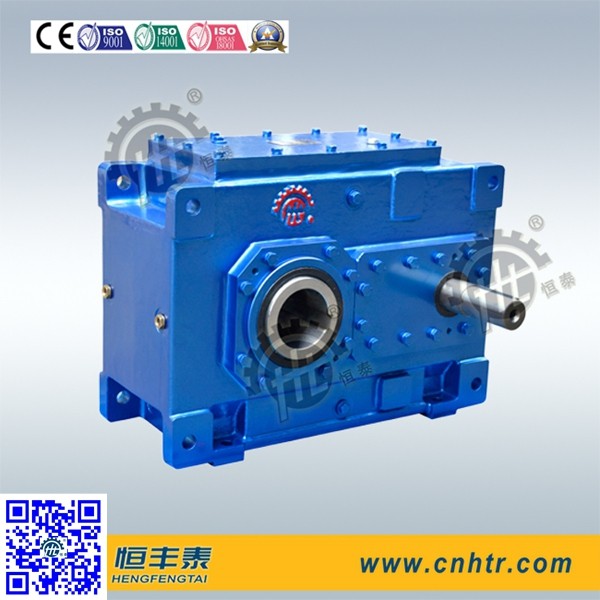

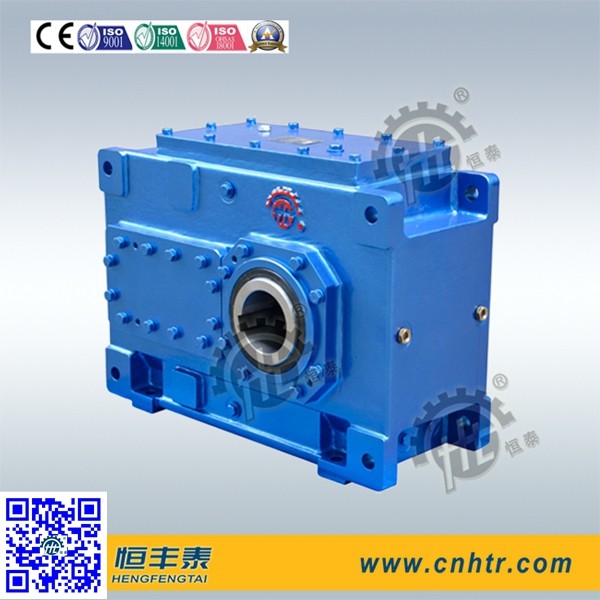

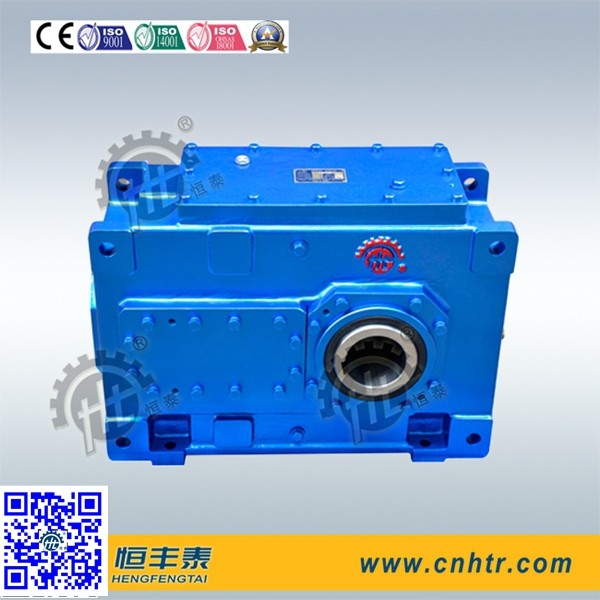

Products Show:
