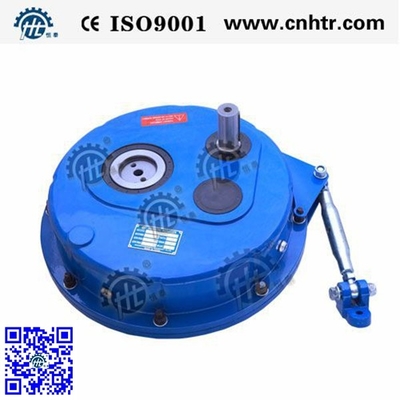

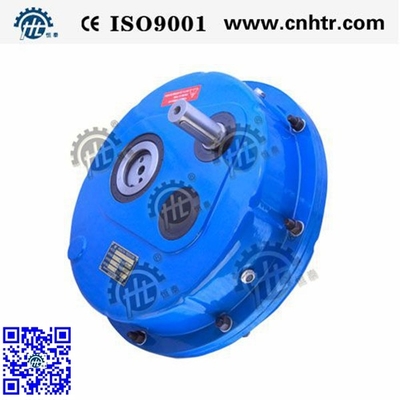

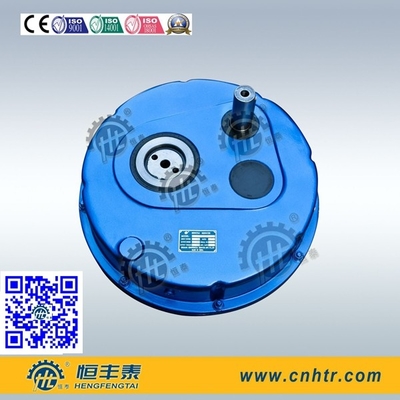

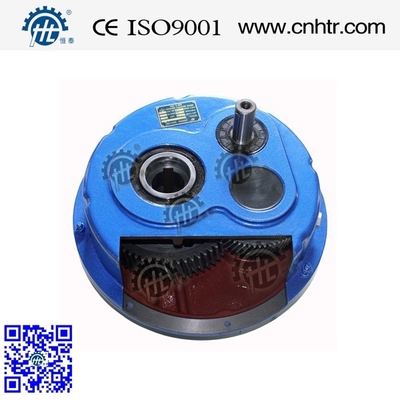

TA45-45D TA50-50D Blue Color Cast Iron Worm Gear Reducer For Conveyor Belt

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name HENGTAI
Certification CE, ISO, TUV, SGS, etc
Model Number TA45-45D, TA50-50D
Minimum Order Quantity 20 pcs
Price USD120-1200/PCS
Packaging Details Standard export wooden case
Delivery Time 7-30 Days
Payment Terms L/C, T/T
Supply Ability 2000PCS PER MONTH
Product Details
Material For Housing HT250 Cast Iron Reduction Stage 2 Stages
Bearings NSK , SKF Dia. Of Bore 45mm, 50mm
Finishing Good Sharp Round
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Components:

1. Housing: Nodular Cast Iron(Ductile Iron) HT250
2. Gears Profile: Hardened Helical Gears
3. Gears Material: 20CrMnTi
4. Gears Processing: Carburizing, Quenching, Grinding
5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
6. Gears Accuracy: 6 Class
7. Shafts Material: 40Cr
8. Input Configurations:
Keyed Solid Shaft Input
IEC Normalized Motor Flange
9. Output Configurations:
Keyed Hollow Shaft Output
10. Oil Seal: TAIWAN NAK
11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC
12. Spare Parts: Torque arm, Optional Backstop


Models:

1 Stage: TA35, TA40, TA45, TA50, TA60, TA70, TA80, TA100, TA125
2 Stage: TA35D, TA40D, TA45D, TA50D, TA60D, TA70D, TA80D, TA100D, TA125D

Features:

1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded TA35) to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

Parameters:

ModelsOutput Bore Dia.Maximum TorqueNominal Ratio(i)
TA3030mm180Nm5
7
10
12.5
15
20
25
31
TA3535mm420Nm
TA4040 mm/45mm950Nm
TA4545mm/50mm/55mm1400Nm
TA5050mm/55mm/60mm2300Nm
TA6060mm/70mm3600Nm
TA7070mm/85mm5100Nm
TA8080mm/100mm7000Nm
TA100100mm/125mm11000Nm
TA125125mm/135mm17000Nm

Applications:

Material Handling Industry, Quarrying and Mining Industry
Belt Conveyors Transmission Mechanism:
Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line


Installation:

Hanging Shaft Mounted With Torque Arm
Belt Conveyor & Pulley Drive System: TA, Electric Roller, Pulley, Electric Motor, Torque Arm
TA45-45D TA50-50D Blue Color Cast Iron Worm Gear Reducer For Conveyor Belt 0

TA45-45D TA50-50D Blue Color Cast Iron Worm Gear Reducer For Conveyor Belt 1

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling


Tags:

Shaft mounted Gear Reducer

shaft mounted gearbox

hollow shaft gear reducer
