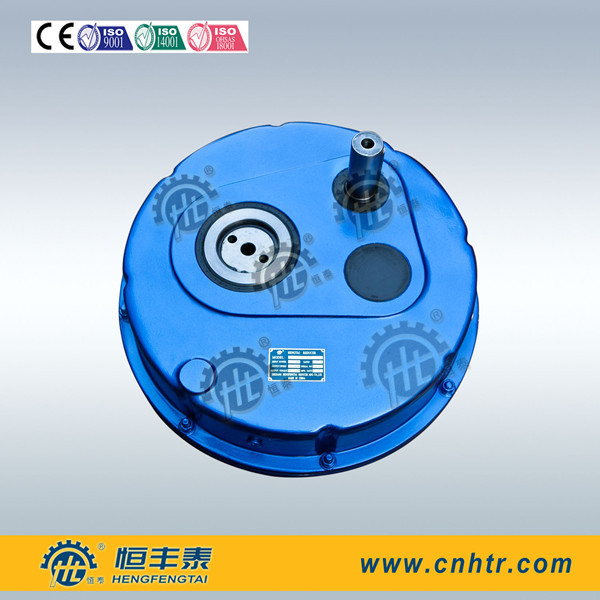

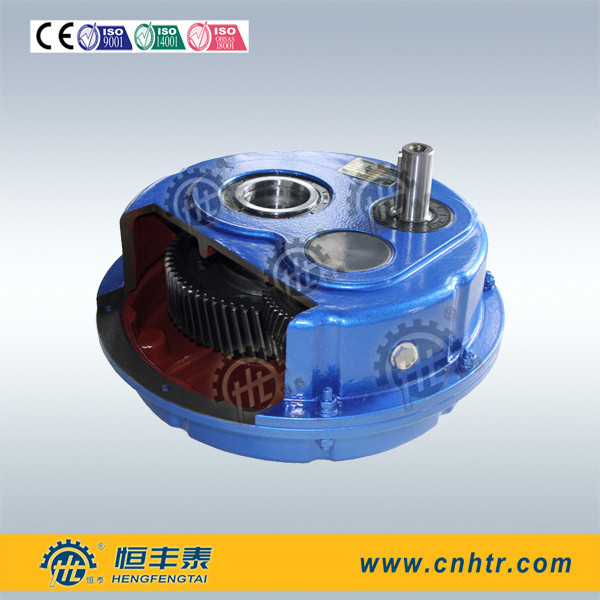

Helical Shaft Mounted Speed Reducer Use For Conveyor Belt Equipment

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification CE, ISO9001,TUV,SGS
Model Number HXG35-HXG125
Minimum Order Quantity 1 PCS
Price USD 200-2000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 500 Pieces per Month
Product Details
Gearing Arrangement Helical Output Torque 180Nm-17000Nm
Rated Power 0.8-226KW Input Speed 500-1400RPM
Output Speed 16-280RPM Ratio 5-31
Mounted Shaft Mounted Color According To Customer
Input Form Solid Shaft Output Form Hollow Shaft
Housing Material Cast Iron Surface Hardness Of Gear HRC58-62
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description
About HXG

Descriptions (Helical shaft mounted Speed Reducer use for conveyor belt equipment ):

The HXG series shaft mounted gear reducer, made by Zhejiang Hengfengtai Reducer Mfg.Co.,ltd which was
wildly used in mechanical transmission such as agriculture, commerce, posts and food industry, automotive
industry, cement industry, tourism industry, especially for quarry and mining applications.

  • Use low-carbon alloyed steel cementation processing completely.
  • Gear, shaft with high precision for low noise and long service life.
  • Small volume, light weight, strong carring ability and high efficiency.
  • Double lip seals keep oil in and contaminants out. Double seals available for severe duty applications.
  • Dimension same with Bonfiglioli (TA).



Permitted torque:



HXG30

HXG35

HXG40

HXG45

HXG50

HXG60

HXG70

HXG80

HXG100

HXG125

180Nm

420Nm

950Nm

1400Nm

2300Nm

3600Nm

5100Nm

7000Nm

11000Nm

17000Nm





Maintenance:

After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Please do not mix the mineral oil and synthetic oil.
Please check the oil level in regular time.



Products benefits:

1. High efficiency

2. Small volume

3. Long service life

4. Anti-leaking oil

5. Widely application

6. Strong capacity of being overloaded

7. simple structure and convenient to be installed and maintained



Warranty:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.



Product Identification:

Helical Shaft Mounted Speed Reducer Use For Conveyor Belt Equipment 0




Applications:

Mechanical transmission fields

Helical Shaft Mounted Speed Reducer Use For Conveyor Belt Equipment 1


Company Information:

Company name: Zhejiang Hengfengtai Reducer MFG.CO.,Ltd
Founding year: 1991
Quantity of employees: 500 employees
Factory square: 50000 square meters
Main products: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.
Qualifications of quatity: CE, ISO9001



Package:

Helical Shaft Mounted Speed Reducer Use For Conveyor Belt Equipment 2
