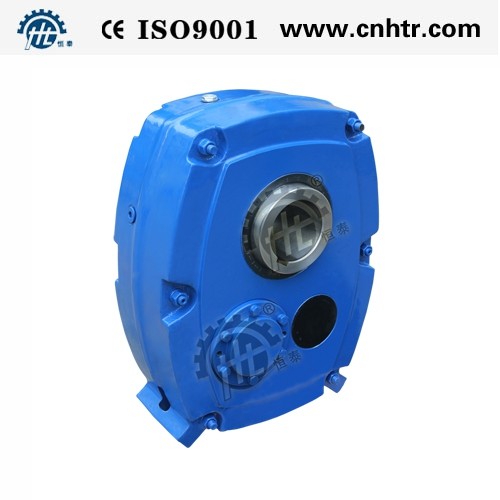

2-150Kw HSMR Hollow Shaft Gear Reducer With Torque Arm And Backstop

  • img.alt
Place of Origin China
Brand Name Hengtai
Certification CE, ISO9001,TUV,SGS
Model Number HXGF30.HXGF40,HXGF50,HXGF55......
Minimum Order Quantity 1 PCS
Price USD 100-1500
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 500 Pieces per Month
Product Details
Gearing Arrangement Helical Output Torque 200-10000Nm
Rated Power 2-150KW Input Speed 500-1800RPM
Output Speed 30-360RPM Ratio 5-20
Mounted Shaft Mounted Color According To Customer
Input Form Solid Shaft Output Form Hollow Shaft
Housing Material Cast Iron Surface Hardness Of Gear HRC58-62
Accessories Holdback Rod, Back Stop
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description
HSMR Shaft Mounted Gear Reducer sale in UAE with torque arm and backstop

Model selection table:



Ratio:5:1
Model HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Output(RPM) 100-400 100-400 100-400 100-400 100-400 100-400 100-400 100-400
Power Rating(KW) 2.68-7.14 4.2-9.66 6.62-15.65 10.29-24.57 15.12-35.91 25.2-59.9 36.2-81.9 62.2-134.2
Permissible torque(Nm) 256 401 632 983 1444 2407 3457 5940



Ratio:13:1 and 20:1

Model HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Output(RPM) 10-115 10-115 10-115 10-115 10-115 10-115 10-115 10-115
Power Rating(KW) 0.29-3.11 0.49-4.62 0.82-7.81 1.25-11.55 1.97-17.01 3.11-27.09 4.9-40.7 7.8-60.5
Permissible torque(Nm) 277 468 783 1194 1881 2970 4680 7449

Dimension:

Dimension(mm) HXGF Size
HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Standard size of shaft 30 40 50 55 65 75 85 100
Alternative size of shaft 40 50 55 65 75 85 100 120
Input shaft keyway 6x3.5x50 6x3.5x59 8x4x63 8x4x70 10x5x70 12x5x90 14x5.5x100 16x6x100





Maintenance:



After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.

Please do not mix the mineral oil and synthetic oil.



Products benefits:



1) All torque arms/fulcrums are plated to eliminate them being rusted in use.

2) The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is safe from contamination.

3) The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.

4) Input shaft front bearing is a roller bearing as it takes in more radial load from the belt pressure.

5) Breather plugs are extended so that the dust does not clog the breather hole.

6) All oil seals imported from Taiwan.

7) Our gear units now have higher load capacity as the gears have been redesigned.

8) All gears are case carburised to a casedepth and ground inhouse.

9) All gear units are machined on a CNC machining center so are very accurate in alignment.

10) Finish of all gear units are far superior to any other brand being sold out of India.

11) The shaft mounts are available with keyed hollow shafts or hollow taper bores with taper clamps.





Applications:



Screw conveyors, belt conveyor bulk handing machinery and process equipment for:Baggage handing.



Aggregate and mining.



Mixers and process equipment.



Grain and agriculture.
