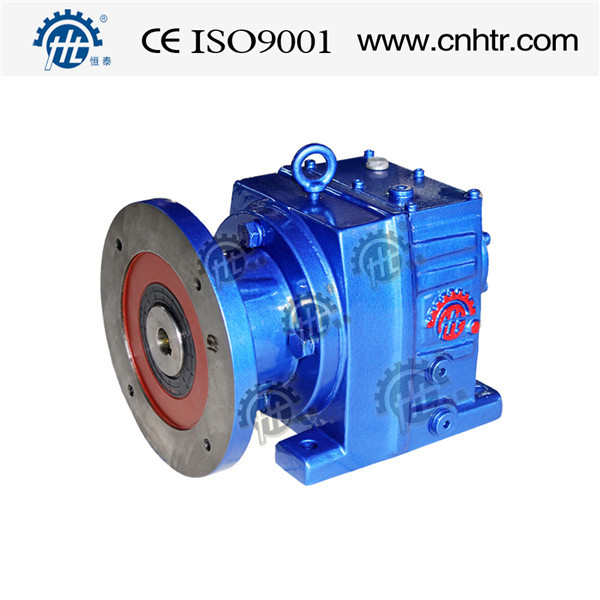

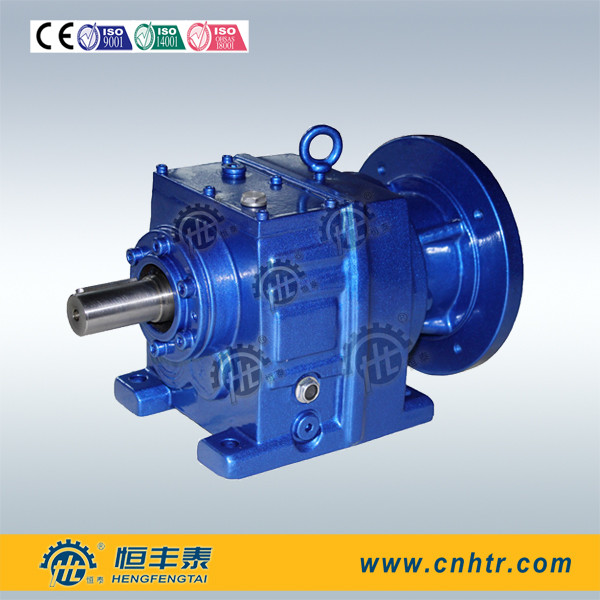

R series Helical Gear Reducer Hard Gear connect directly with motor
| Place of Origin | China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE, ISO9001,TUV,SGS |
| Model Number | HR37-HR167 |
| Minimum Order Quantity | 1 PCS |
| Price | USD 100-1800 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 work days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 500 Pieces per Month |
Product Details
| Gearing Arrangement | Helical | Output Torque | 110-15300 N.m |
|---|---|---|---|
| Rated Power | 0.12-160 KW | Input Speed | 750-1800 Rpm |
| Output Speed | 2.67-534 Rpm | Ratio | 3.4-280.6 |
| Mounted | Foot Mounted, Flange Mounted | Color | RAL5010 |
| Input Form | Direct Connection With Motor, Flange For Mounting Motor, Solid Shaft | Output Form | Solid Shaft |
| Surface Hardness Of Gear | HRC58-62 | Transimission Stage | Single, Two, Three-stage |
| High Light | helical bevel gearbox,helical speed reducer |
||
Product Description
R series Helical Gear Reducer Hard Gear connect directly with motor
About HR
Descriptions (R series Helical Gear Reducer Hard Gear connect directly with motor ):
HR is based on the unique modulation combination system, so its convenient for them to fit all types of motors or to connect with other power input. The same type of reducer can fit motors with different power, so that its possible for different types of machines to combine or connect.
Specification:
| Model | 27 | 37 | 47 | 57 | 67 | 77 |
| Structure form | HR,HR..F,HRF | |||||
| Input power | 0.12-3 | 0.12-3 | 0.12-5.5 | 0.12-7.5 | 0.12-7.5 | 0.18-11 |
| Ratio | 3.37-136 | 3.4-133.3 | 3.87-182.6 | 4.32-183.2 | 4.32-180.7 | 5.28-200.9 |
| Permissible torque | 110 | 170 | 255 | 380 | 510 | 700 |
| weight | 6.2 | 9.4 | 11 | 20 | 28 | 40 |
| Model | 87 | 97 | 107 | 137 | 147 | 167 |
| Structure form | HR,HR..F,HRF | |||||
| Input power | 0.55-22 | 0.55-37 | 2.2-55 | 5.5-75 | 11-110 | 11-160 |
| Ratio | 5.33-245.7 | 4.52-280.6 | 4.98-255.4 | 5.22-223.2 | 4.93-162.1 | 10.43-224.6 |
| Permissible torque | 1320 | 2550 | 3670 | 6800 | 11050 | 15300 |
| weight | 70 | 112 | 169 | 245 | 440 | 770 |
Product Advantages:
1:Compact design, small volume, nice appearance and strong capacity of being overloaded.
2:percise division , wide selection range.
3:High efficiency, low energy consumption, excellent function, small vibration, and low noise.
4:All - purpose use, convenient, low cost maintenance.
5:Hr series gear can match all kinds of motors/mounting position/structure projects.
6:Using new seal device-good protection , stong adaptability, capable of working continually in corrosive or damp environment.
7:With small volume, helical gear units achieves the output torque range of 69-18000NM, and output power as much as 200 KW.
Maintenance:
After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Please do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
Warranty:
HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or
replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.
The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or
indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
Applications ( R series Helical Gear Reducer Hard Gear connect directly with motor ):
1. Conveyor machinery
2. Craning
3. Bagger
4. Enginery for food industry
5. Washer
6. working machine
7. Machines for plastic industry
Package:
Factory Show:
Quality control:
Quality certificate:
Other products:
Contact Me:
Welcome to contact me for more details:
