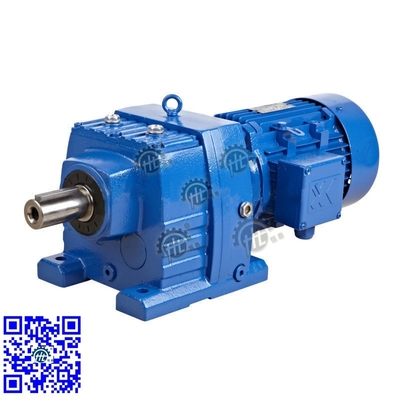

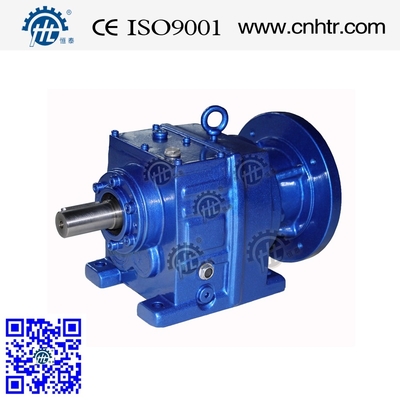

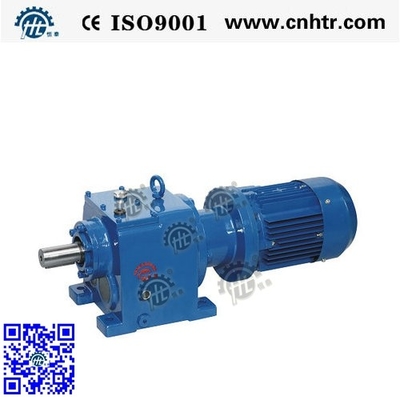

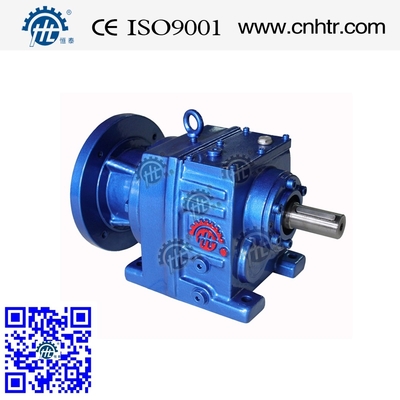

HR17-167 Helical Inline Reduction Gear Motor With AC 3 Phase Motor

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001,TUV,SGS,BV, etc
Model Number HR17-167
Minimum Order Quantity 5 PCS
Price USD500-2000/PCS
Packaging Details Standard export package
Delivery Time 7-30days(according to qty)
Payment Terms L/C, T/T, Western Union
Supply Ability 1000PCS/MONTH
Product Details
Ratio 3.4-280.6 Mounting Position Foot Mounted
Motor Power Up To 160 KW Material For Housing Cast Iron HT250
Material For Gear 20 CrMnTi Bearings ZWZ, LYC
High Light

helical bevel gearbox

,

helical speed reducer
Leave a Message
Product Description

HR17-167 Helical Inline Reduction Gear Motor With AC 3 Phase Motor​





Characteristics:



Based on modular combined system, SGR design and develop all kind series gearbox included Coaxial Inline Helical Geared Motor, which is the most common and advanced transmission device nowadays among international power transmission industry, with our strict quality criteria and quality control, we try our best to provide Coaxial Inline Helical Geared Motor with moderate price & high quality, replace oversea product in the field of Transmission Part.


Material:
Products Name HR helical inline gear motor
Housing material
HT250 High strength cast iron
Housing hardness HBS90-240
Gear material: 20CrMnTi
Gear surface hardness HRC58°-62°
Gear core hardness HRC33°-40°
Shaft material(Input/Output ) 20CrMnTi
Shaft hardness (Input/Output ) HBS241°-286°
Shaft hardness at oil seal position HRC48 ° -55 °
Precision of gears material Accurate grinding 6 grade
Heat treatment tempering & quenching etc
Efficiency 96%-998%
Noise(Max) 65-70dB
Temperature rise 0 - 40°C

Vibration ≤20um
Backlash ≤20Arcmin
Bearing brand NSK,ZWZ,LYC,etc
Brand of Oil seal NAK, KAK, etc.
Oil type 220
Motor specification IP55, F class
Motor shaft 40Cr, Tempering, cementing, quenching etc



Product application::



HR17-167 Helical Inline Reduction Gear Motor With AC 3 Phase Motor 0
