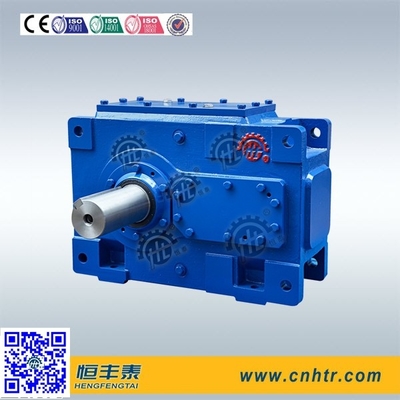

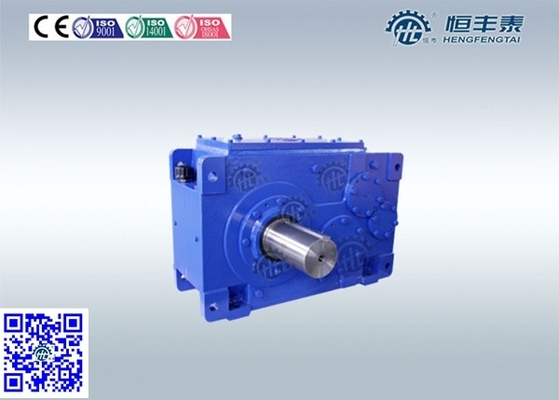

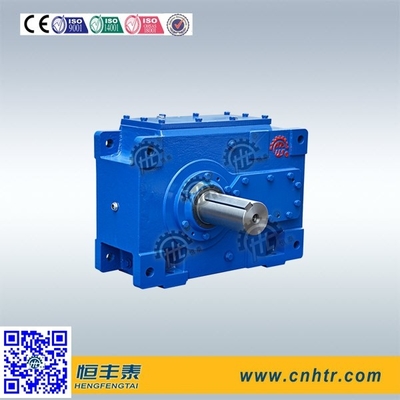

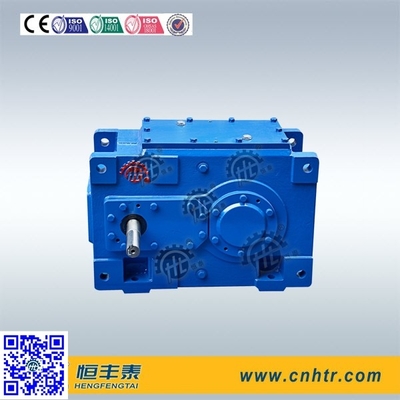

H Series Industrial Helical Parallel Shaft Gearbox For Mill Application With Big Torque

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang province, China
Brand Name HENGTAI
Certification CE, ISO, TUV, SGS, BV, etc
Model Number H series
Minimum Order Quantity 1 PCS
Price USD800-20000/PCS
Packaging Details Wooden Case, Standard Export Package.
Delivery Time 30-45 Days
Payment Terms L/C, T/T
Supply Ability 2000 PCS PER YEAR
Product Details
Gearing Arrangment Helical Type Output Shaft Type Solid Output Shaft
Gear Ratio Up 400 Application Mill
Rated Torque Up To 1000KNm Rated Power Up To 1000KW
High Light

helical bevel gearbox

,

helical speed reducer
Leave a Message
Product Description

H Series Industrial Helical Parallel Shaft Gearbox For Mill Application With Big Torque





Advantage:



Hengtai H series gearbox has the features of high versatility,good combination and heavy loading capability, along with other merits such as easy to attain various transmission ratios, high efficiency, low vibration and high permissible axis radial load.
1) Output speed: 1.7~1200r/min
2) Output torque: up to 47,000N.m
3) Motor power: 2.52~5366kW
4) Mounted form: foot-mounted ,flange-mounted, axis mounted, shrink mounted



Features:



A. Design:
H series Gearbox reference to similar foreign products, with a new design, mainly in:
1 highly modular, fewer types of parts and gearbox specification more.
2 Transmission power, high operational reliability.
B. Mounting
PV series gearbox mounting flexible and can be horizontal or vertical installation, in accordance with user requirements for other forms of installation, please contact us.
C. Life
The correct selection and proper use and maintenance conditions, gear box (except wearing parts) of the main components is generally not less than 50,000 hours lifespan.
D. Noise
The main gearbox parts are precision machining; gear grinding teeth practitioner with low noise technology; using noise absorbing cabinet structure and through the carefully assembled and tested, and thus a lower gear noise.



Specification:

Item Name H  Series Gearbox
Model No. H  series Gearbox
Material Housing/cast iron
Gear/20CrMnTi; Shaft/ High-strength alloy steel
Input Speed Up to 2000rpm
Output Speed 1.7-1200RPM
Ratio 1.25-450
Input Power 1.5KW~1800KW
Service Factor /
Pole 4-8 pole
Max Permissible Torque 2,300-900,000N.M

Quality Control

System

 ISO9001-2008;CE;IQNet
Packing Plastic bag + PE foam + Wooden case + Metal strap
Delivery 15-30 days after order



Products in HFT workshop:



H Series Industrial Helical Parallel Shaft Gearbox For Mill Application With Big Torque 0



Mill application:



H Series Industrial Helical Parallel Shaft Gearbox For Mill Application With Big Torque 1
