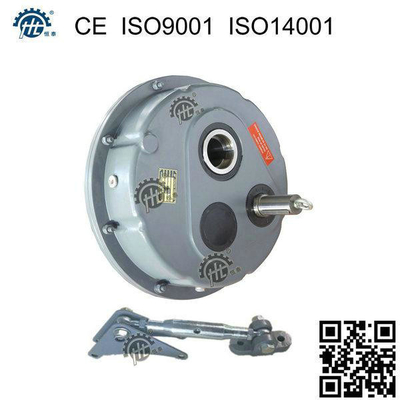

Ratio 15:1 Output Shaft Bore 45~80 Mm HXG / TA Shaft Mounted Speed Reducer Gearbox For Crushers Conveyors

  • img.alt
  • img.alt
Place of Origin Zhejiang Province, China
Brand Name Hengtai Reducer
Certification ISO9001-14001-18001, CE, TUV, SGS
Model Number HXG/TA 35,40,45,50,60,70,80,100,125
Minimum Order Quantity 2 pcs
Price USD150.00 ~ USD1800.00
Packaging Details Export used wooden box, each pcs with inner package.
Delivery Time 10~35 work days according to different order QTY.
Payment Terms T/T, L/C
Supply Ability 8000 pcs per month.
Product Details
Ratio 15 Used Power 1.1~ 55 KW
Used Motor 4 Poles, 6 Poles, 960~1800 Rpm, 50Hz Or 60 Hz, 3 Phase Input Shaft 19, 24, 28, 38, 48, 55 Mm
Output Shaft Bore 35,40,45,50,55,60,70,80,100,125,135 Mm Anti-back Backstop
Spares With Torque Arm
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Ratio 15:1 output shaft bore 45~80 mm HXG/TA shaft mounted speed reducer gearbox for crushers conveyors:





Applications:



Crusher plant, Quarry plant, Concrete batch, cement plant belt conveyor; Shredder machine.

Special for crusher belt conveyors.





Products features:



1). Certificates: CE, ISO

2). Same with Bonfiglioli TA, similar to SITI RP, PGR···.

3). Torque arm mounted, easy installation.

4). Spares backstop can choose, for proof conveyor counterclockwise running.







Technical data:



Power:  1.5, 2.2, 3, 4, 5.5, 7.5, 11, 15, 22, 30, 37, 45, 55 KW.



General Ratio for conveyor: 15, 20 (for big models and width conveyor)



Pulley: 1:1 between motor and gearbox.



Gearbox output speed: 90~115 rpm



Coveyor speed: 1.2~2 m/s







Model details:

Model Output shaft diameter Input shaft diameter Suggest Input power (4P, pulley 1:1)
HXG 35 35 mm 19 mm 1.5~2.2 kw
HXG 40 40; 45 mm 24 mm 3~4 kw
HXG 45 45; 50; 55 mm 28 mm 4~5.5 kw
HXG 50 50; 55; 60 mm 38 mm 7.5~11 kw
HXG 60 60; 65; 70 mm 38 mm 11~18.5 kw
HXG 70 70; 75; 80; 85 mm 42 mm 15~22 kw
HXG 80 80; 85; 90; 100 mm 48 mm 22~37 kw
HXG 100 100; 120; 125 mm 48 mm 30~45 KW
HXG 125 125; 135 mm 55 mm 45~55 kw



































Business points:



1). MOQ: 1 pcs

2). Delivery time: 10~35 days send goods after order confirmed.

3). Payment: T/T 30% for order confirmed, T/T 70% before delivery; or by L/C, cash, others.

4). Shipment: Ningbo, Shanghai, any port in China; Or CIF.

5). Warranty: 12-18 months.
