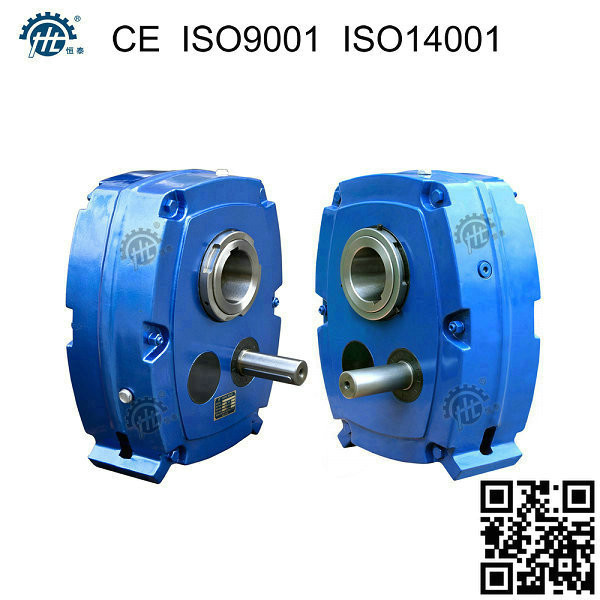

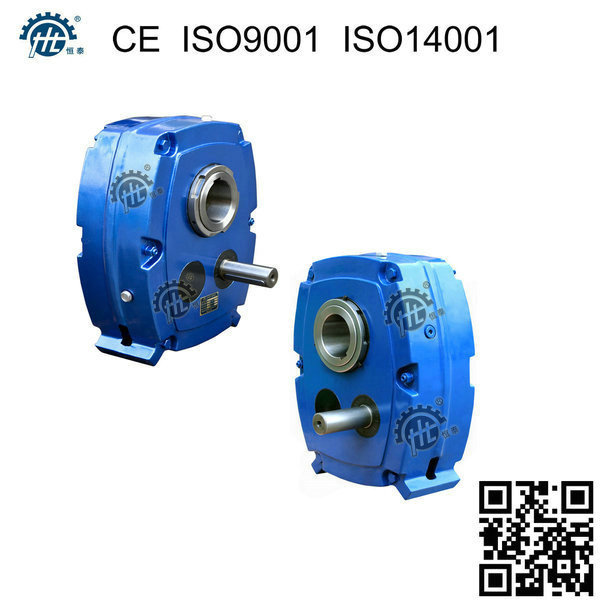

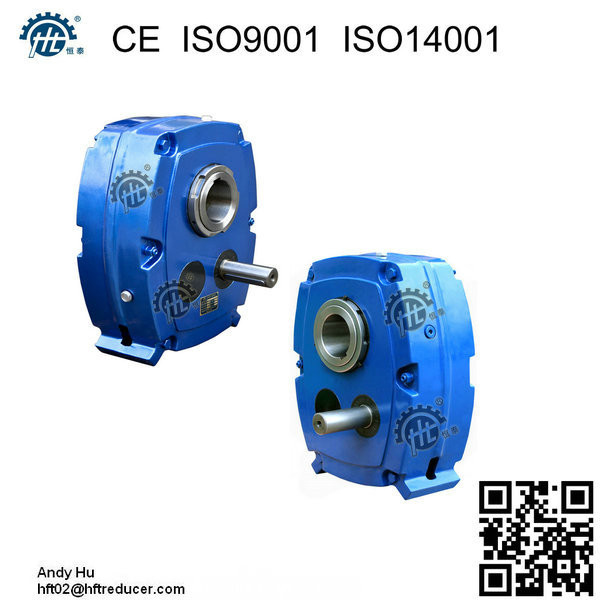

Compact Shaft Mounted Speed Reducer , 30~120 Mm Output Shaft Helical Gear Reducer

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai Reducer
Certification CE, ISO
Model Number HSM, SMSR, SMR
Minimum Order Quantity 2 pcs
Price USD120.00/pcs
Packaging Details 8 PCS/pallet, each pcs with inner package, export used wooden box.
Delivery Time 15 days send goods after order confirmed
Payment Terms T/T, L/C, MoneyGram
Supply Ability 3000 PCS / month
Product Details
Similar Models China SMR, Fenner SMSR, Challenge SMSR, Sumitomo HSM Ratio 5; 13; 15; 20
Input Shaft 19,22,25,28,32,42,48,55 Mm Output Shaft 30~120 Mm
Spares Torque Arm Anti-back Backstop
Use Power 0.37~55 KW Use Torque 110~7500 N.m
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description



SMR / Sumitomo HSM / Challenge SMSR / Fenner SMSR shaft mounted speed reducer:





Products features:



- Compact, rugged design

- Use carbon steel, 20CrMnTi, 40CrMnTi good materials, hardened gears and shafts, make sure

  good qulaity and long time usage.
- Bore sizes ranging from 30mm to 120mm available
- Easy fit backstops available
- Special for belt conveyor drive
- ISO, CE certification available







Mainly technical data:



Input shaft:  19, 22, 25, 28, 32, 42, 48, 55 mm



Output shaft: 30-120 mm



Ratio(i): 5, 13, 15, 20



Power: 0.37-55 KW



Torque: 180-7500 N.m



With: torque arm, backstop.



Applications:

1). Belt conveyor
2). Crusher machines
3). Shredder
4). Other machines.







Model details:



Each manufacturers Model names Output shaft Input shaft Suggest Input power
Fenner Sumitomo Challenge Our company
C B B HXGF 30 30; 40 mm 19 mm 0.75~1.1 kw
D C C HXGF 40 40; 50 mm 22 mm 1.1~3 kw
E D D HXGF 50 50; 55 mm 25 mm 3~4 kw
F E E HXGF 55 55; 60; 65 mm 28 mm 4~7.5 kw
G F F HXGF 65 65; 70; 75 mm 32 mm 5.5~11 kw
H G G HXGF 75 75; 80; 85 mm 42 mm 4~15 kw
J H H HXGF 85 85; 90; 100 mm 48 mm 5.5~22 kw
S J J HXGF 100 100; 120 mm 55 mm 18.5~30 KW

































Business FAQS:



1). MOQ: 2 pcs
2). Delivery lead time: 15-20 days.

3). shipment: FOB, CIF

4). Payment: T/T, L/C
5). Warranty: 15 months



Compact Shaft Mounted Speed Reducer , 30~120 Mm Output Shaft Helical Gear Reducer 0









Compact Shaft Mounted Speed Reducer , 30~120 Mm Output Shaft Helical Gear Reducer 1



Compact Shaft Mounted Speed Reducer , 30~120 Mm Output Shaft Helical Gear Reducer 2





Compact Shaft Mounted Speed Reducer , 30~120 Mm Output Shaft Helical Gear Reducer 3





Contact us:


Mr.Andy Hu (Sales Engineer)
Mobile: 0086-18072111286
Tel: 0086-577-86111028
Fax: 0086-577-86118098
