900-1800 Rpm Input Speed Shaft Mounted Speed Reducer TA 35 40 45 50 60 70 80 100 125

  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengtai Reducer
Certification TUV, ISO, CE
Model Number TA 35 40 45 50 60 70 80 100 125
Minimum Order Quantity 1 PCS
Price USD 180.00 / PCS
Packaging Details Each PCS with Inner Package, Export Wooden Box.
Delivery Time 15~20 days
Payment Terms T/T, L/C, Western Union, D/P, MoneyGram
Supply Ability 2500 PCS / month
Product Details
Ratio 5, 7, 10, 12.5(13), 15, 20, 25, 30 Input Shaft Diameter 19, 24, 28, 38, 48, 55 Mm
Hub / Output Shaft Diameter 35, 40, 45, 50, 55, 60, 65, 70,80, 85, 100, 120, 125mm Used Motor Y2 Series, 4 Poles/6 Poles
Used Power 1.1-90 Kw Input Speed 900-1800 Rpm
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

hina Reducteur Reductor Bonfiglioli TA 40 45 50 60 70 80 100 gearbox shaft mounted speed reducer:


Models:

1). TA35-35,

2). TA40-40, TA40-45,

3). TA45-45, TA45-50, TA45-55

4). TA50-50, TA50-55

5). TA60-60/D-A (with backstop)

6). TA70-70/D-A (with backstop)

7). TA80-80/D-A (with backstop)

8). TA100-100/D-A (with backstop)

9). TA125-125/D-A (with backstop)


Ratio: 5; 7; 10; 13, 15, 20, 25, 30



Torque:

Model TA35 TA40 TA45 TA50 TA60 TA70 TA80 TA100 TA125

Torque

(N.m)

 420 950 1400 2300 3600 5100 7000 11000 17000





Mounted: Torque arm.



Anti-back: Backstop.


Descriptions and applications:

The HXG gearbox dimensions same with Bonfiglioli TA gearbox, which special used in quarry, cement, crusher, concrete batching plant belt conveyors.


How long time for Delivery?

1-50 pcs: 15 days

51-100 pcs: 25 days

101-200 pcs: 30 days

201-500 pcs: 40 days



Payment:

1).TT 30% for order confirmed, TT 70% before delivery or see B/L documents copy.

2).L/C 100% at sight.





Package:

TA35 -- 12pcs/pallet

TA40 -- 12pcs/pallet

TA45 -- 12pcs/pallet

TA50 -- 12pcs/pallet

TA60 -- 8pcs/pallet

TA70 -- 8pcs/pallet

TA80 -- 4pcs/pallet

TA100--1pcs/pallet

TA125--1pcs/pallet



20'' container: 150-200 pcs

40'' container: 350-400 pcs




Warranty:

12-18 months according to application and model selection.





Product and colors:

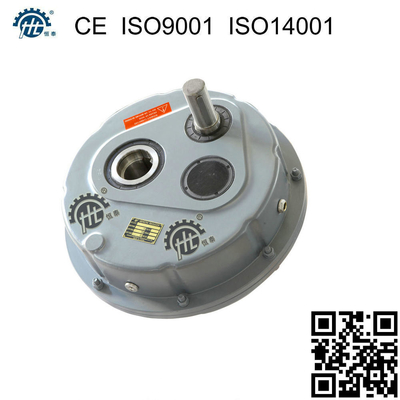

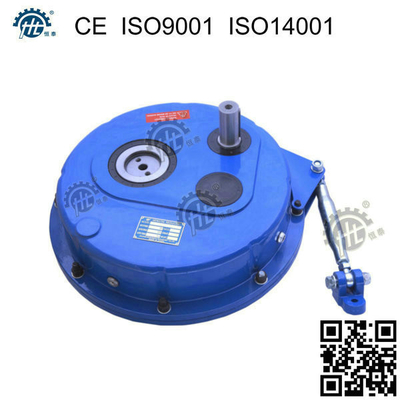

900-1800 Rpm Input Speed Shaft Mounted Speed Reducer TA 35 40 45 50 60 70 80 100 125 0







Package:

900-1800 Rpm Input Speed Shaft Mounted Speed Reducer TA 35 40 45 50 60 70 80 100 125 1







About us:

Company name: Zhejiang Hengfengtai Reducer Mfg.Co.,Ltd

Founding year: 1991

Area: 50000 m²

Employee: 350
Qualifications: ISO9001:2008, CE, ISO14001, GB/T28001 etc

900-1800 Rpm Input Speed Shaft Mounted Speed Reducer TA 35 40 45 50 60 70 80 100 125 2





900-1800 Rpm Input Speed Shaft Mounted Speed Reducer TA 35 40 45 50 60 70 80 100 125 3







For more details or questions, please freely to contact us:





Mr.Andy Hu (Sales Manager & Engineer)

Mobile: 0086-18072111286

Tel: 0086-577-86111028

Fax: 0086-577-86118098
