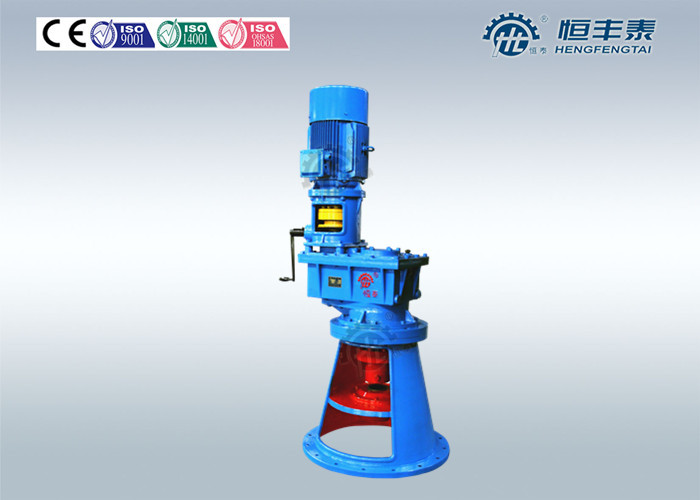

Tank Agitator gearbox Liquid Mixer Agitator With Parallel Shaft

Side Entry Agitator With Parallel Shaft , Tank Agitator gearbox



Quick Details:



·                                      Gearing Arrangement: Helical



·                                 Output Torque:550~32000N.m



·                                 Rated Power: 0.55~360KW



·                                 Input Speed: 4P~8P motor



·                                 Output Speed: 34~300RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number:LPY series



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 5~22



·                                 Mounting position: Vertical Flange mounted



·                                 Material for box: Cast Iron



·                                 Packing: Standard Fumigation Wooden





Other name:





Parallel Agitator gearbox



Aluminium application vertical agitator



Shaft mounted Metallurgy Blender







Description:



LPY series Industrial Mixer Blender is vertical helical hardened gear reducers with parallel axia



two stage,both has medium and low revolution with big torque for extended agitator shaft under high



efficiency and heavy load.







Your benefits:



1.     Larger bearing interval on the output shaft



2.     Combined with Oil cyling and Cooling system



3.     Connected by flaxible coupling for smooth running



4.     Low Noise



5.     Easy Disassembling



6.     Automatically coming away when handwork is stopping and not affecting opening mechanical by



        electricity.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:



Widely used for Metallurgy,Mine,Construction,Chemical industry,Light industry etc.





For example:



                     PHOTO:LPY series applied for Aluminium Industry





Specifications:



Type	Output Axis diameter	Overall size						Setup size											Weight(kg)
		B	L	H	H1	G	G1	D1	D2	D3	C	h	n	do	L1	L2	b	t
171	50	252	378	487	245~435	300	434	230	260	290	6	16	6	14	100	100	14	44.5	110
215	60	320	474	595	340~600	348	505	270	305	340	6	20	8	18	130	130	18	53	185
240	70	360	534	650	435~705	375	580	320	360	400	6	20	8	18	130	130	20	62.5	241
272	80	440	660	752	535~785	440	685	380	430	480	8	24	8	18	160	145	22	71	415
305	90	440	660	752	535~860	440	685	380	430	480	8	24	8	18	190	170	25	81	450
375	100	520	785	865	600~1040	510	725	455	520	580	8	28	8	23	190	170	28	90	650
430	110	570	865	970	700~1400	570	915	455	520	580	8	28	8	23	220	200	28	100	835
500	130	650	1000	1015	755~1400	615	975	530	590	640	10	30	12	23	220	220	32	119	1245
550	140	690	1070	1067	900~1400	670	1045	560	590	700	10	35	12	23	220	225	36	128	1330















Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.
