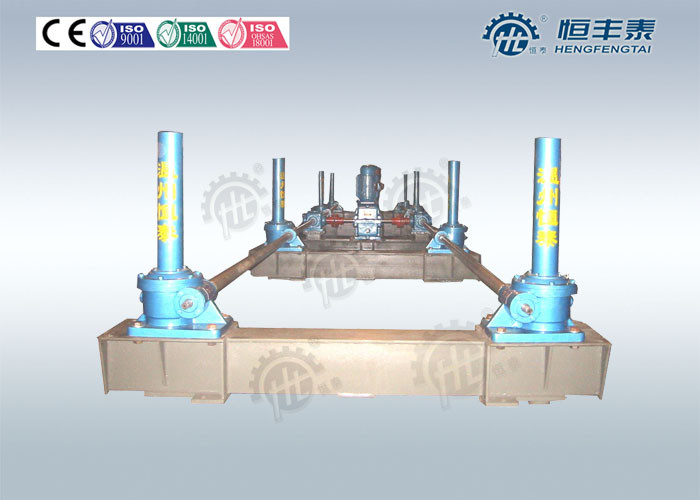

Vertical Articulated Magnetic Lifting Equipment Electro Lifting Magnets

Vertical Articulated Magnetic Lifting Equipment Electro Lifting Magnets

Quick Details:

Total hoisting weight: 25~160T (Customization can be provided)

Exaltation speed: 50~100mm/min (Customization can be provided)

Quantity of suspension point: 8 suspension points

Mounting position: mounted

Lift stroke: 350~500mm

Lift Mechanism: Articulated Lift

Lift drive / Actuation: Electric motor

Usage: Construction Hoist

Sling Type: Cable

Brand Name: Hengtai

Other name:

Electrolytic Aluminum Equipment

Aluminum lifting equipment

HT Anode hoisting gear equipment vertical 8 pole

Descriptions:

"Anode raising machine" series of products are important equipment of reserve electrolytic transmission

system in metallurgy industry, widely used in metallurgy workshop with strong magnetic field, high temperature and much dust to ensure electrolysis is produced continually and safely.

Because the equipment can bear a great deal of charge and make it stably rise or drop, it can be used as

riser manufacturing and repairing motorcycle, larger-scale vehicle and marine.

The property of machine is reliable, operation is advanced, and it has been listed as national-level important new products.

Our factory can design and make all kinds of rising equipment with other use according to user's demand.

Specifications:

Applications:

The products are important equipment of reserve electrolytic transmission system in metallurgy industry.

Technical Feature:

1, Driver fountain is placed in the middle of two set points, are parallel driving from the middle to the  both sides.

2, There is only one driver, there isn’t any question about  synchronization, there isn’t height difference between the two generator, the voltage of tank is stability, current density is equal , there is effect of saving energy and reducing consumption.

3, It is half than the single-drive transmission chain structure, reduce the power loss.

4, Increase the weight 80 to 90 tons.

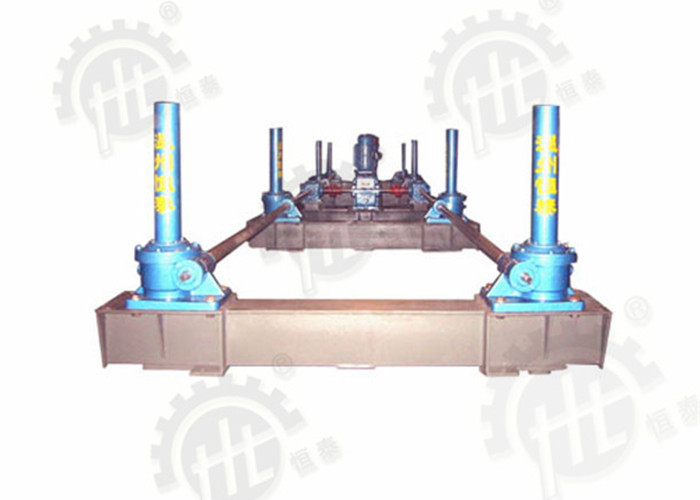

Photo:  Frame Drawing of Electrolytic Aluminum Products

Competitive Advantage:

The Eight-points Anode Suspension Mechanism (National patent) for Aluminum Electro-bath is important

state new products, as “One of the first state new products design, and reached the international advance

level” products that is identified by China  Non-ferrous Industry Association, China Aluminum Corporation,

the Guiyang aluminum-magnesium design Institute, aluminum-magnesium and Design Institute of

Shenyang, Zhengzhou Light Metal Research Institute, China North University of Technology, Henan

Zhongfu enterprise , and other authorities Institute, the product won the "high-tech products of Zhejiang

Province", Wenzhou City," the first prize of the first technological innovation," " Second prize of progress of science and technology awards of Wenzhou, "under the"2007  Zhejiang Province to speed up the

development of key manufacturing equipment in the field of the first (set) a list of products.
