Worm Cast Iron Electric Motor Speed Reducer Torque Arm High Efficiency

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HS series
Minimum Order Quantity 5 PIECE
Price USD122-1648
Packaging Details 1pcs packed in one small box, 7-8 small boxes packed in one wooden crate
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 2000 pcs/month
Product Details
High Light

worm gear speed reducer

,

worm gear boxes
Leave a Message
Product Description

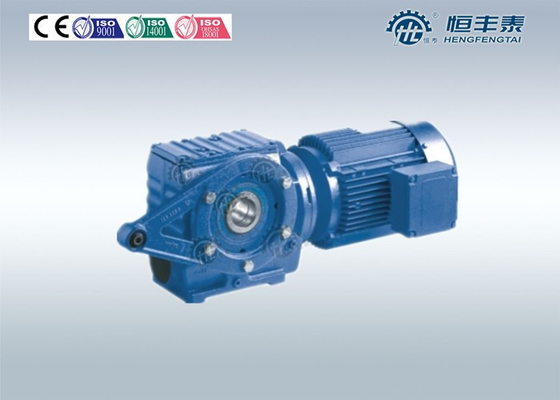

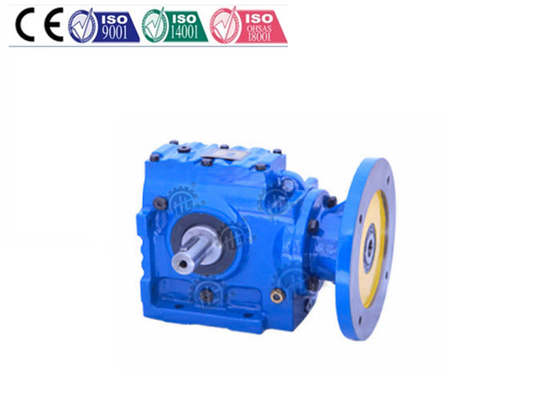

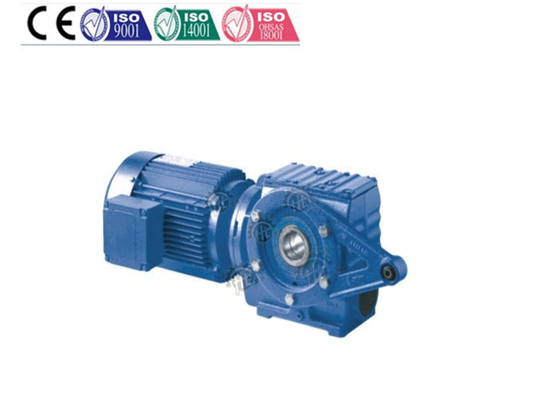

Worm Cast Iron Electric Motor Speed Reducer Torque Arm High Efficiency







Quick Details:





Output Torque 78~3400N.m
Rated Power 0.12~75KW
Output Speed 2.28~199RPM
Ratio 7~291.4
Gearing Arrangement Worm gear
Input Speed Accordingly
Place of Origin Zhejiang, China (Mainland)
Model Number HS series
Brand Name HENGTAI
Mounting position flange mounted or foot mounted
Material for box Cast Iron
Packing Standard Fumigation Wooden
Color According to customer









Descriptions:



Worm gearbox HS series same as SEW S series can be used in every industrial sector and tailored to



individual torque and speed requirements due to their outstanding efficiency.





Your benefits:



1.     Economical operation



2.     Low noise



3.     Long service life



4.     High permitted overhung loads







Warranty:



HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:



Widely applied for the Building machinery,Chemical industry,Conveyor machinery,Metal cutting machine



and Metal rolling machine etc.







Specification:



                  Model

37

47

57

67

77

87

97

Structure

S,SA,SF,SAF,SAZ,SAT

Input Power KW

0.12~75

0.12~1.5

0.12~3

0.12~3

0.25~7.5

0.55~18.5

0.75~22

Transmission Ratio   i

7~157.3

7.33~198.8

7.33~198.8

8.75~210

8.17~265.7

7.83~291.4

8.12~288.7

Allowed Torque  Nm

78

145

250

450

1080

1940

3400

Weight   kgs

8

11

15.5

29

55

110

190





Note:



SA:   hollow shaft output



SF:   flange-mounted output



SAF:  flange-mounted hollow shaft output



SAZ:  short-flange-mounted hollow shaft output



SAT:  torque-arm-mounted hollow shaft output





Competitive Advantage:



      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.



2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.



3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
