xProduct Details
| Highlight | sedimentation tanks,liquid solid separation equipment |
||
|---|---|---|---|
Product Description

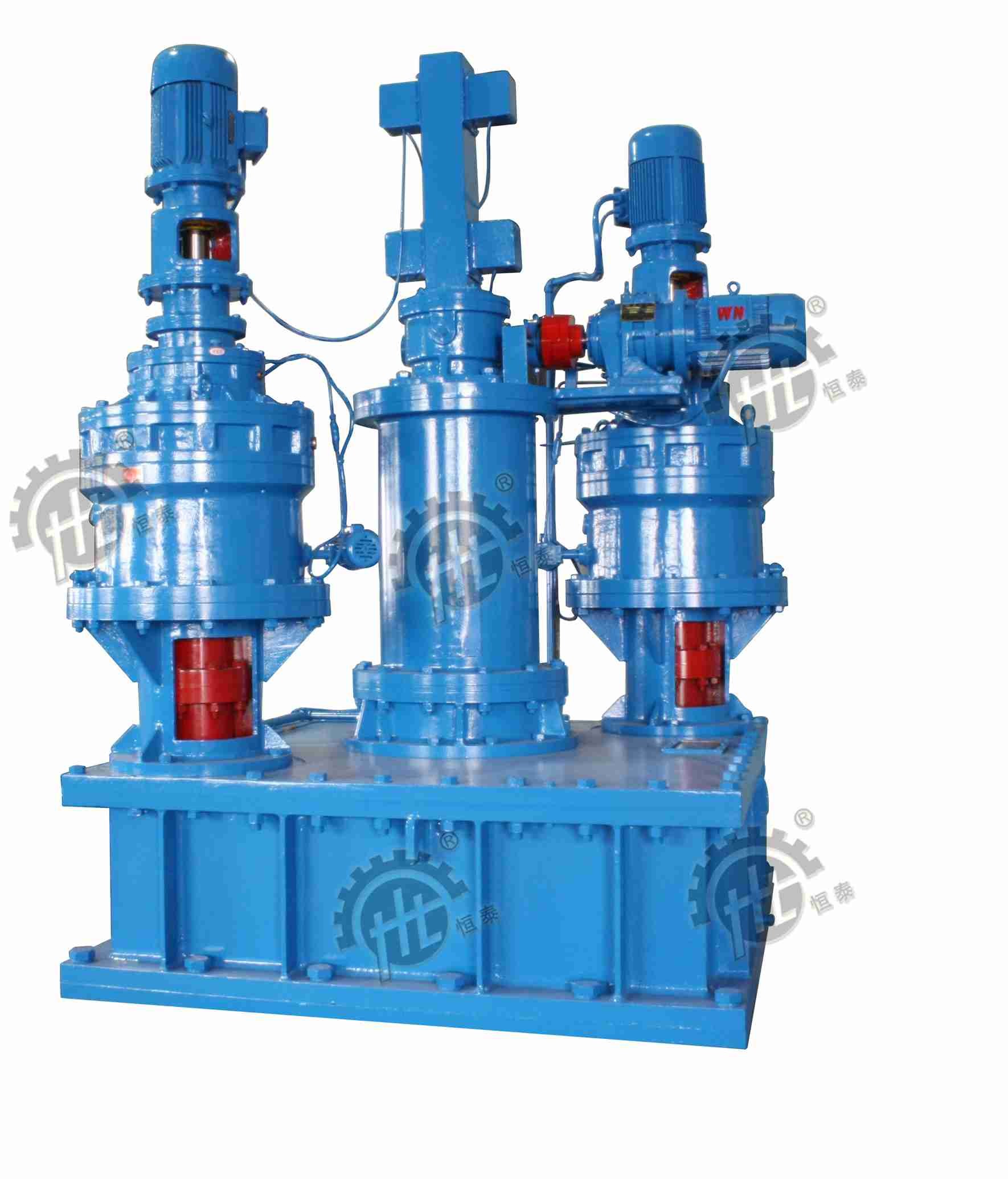

High Rate Deep Cone Solid Liquid Separation Thickener Drive Automation Dilution
Quick Detail:
High rate thickener units are provided in sizes ranging from 5' to 250' in diameter,
and can accommodate drive head torques of up to 4 million foot pounds.
They are available in shaft or cage driven models.
Other name:
CQC planetary drive lifting drive shaft thickener
CQC heavy duty thickening
CQC rake lifting device with mechanism protection
Applications:
Thickeners are used for dewatering slurries of either tailings or product. A thickener is a large circular tank
that is used to settle out the solid material from the water in the feed slurry. It is widely used for dealing
with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials,
environmental protection department etc.
Specifications:
Lets us pick a topic, red mud settlement of alumina industry, as an example.
|
Model |
Quantity of settlement (t/h) |
Output rotate speed(r/min) |
Maximum torque (n·m) |
Weight(kg) |
|
GLDS 7 |
6~12 |
1~0.1 |
200000 |
19600 |
|
GLDS 10 |
20~28 |
1~0.1 |
250000 |
28650 |
|
GLDS 14 |
32~40 |
1~0.1 |
300000 |
38900 |
|
GLDS 16 |
60~80 |
1~0.1 |
400000 |
39800 |
|
GLDS 18 |
90~100 |
1~0.1 |
500000 |
43250 |
|
GLDS 20 |
110~130 |
1~0.1 |
680000 |
49800 |
Performance Feature:
Continuous rated torque 100 % (KN.m):20-281
Output speed (RPM):0.6-0.1
Output power (KW):2.2-6
Elevator input power(KW):0.75-4KW
