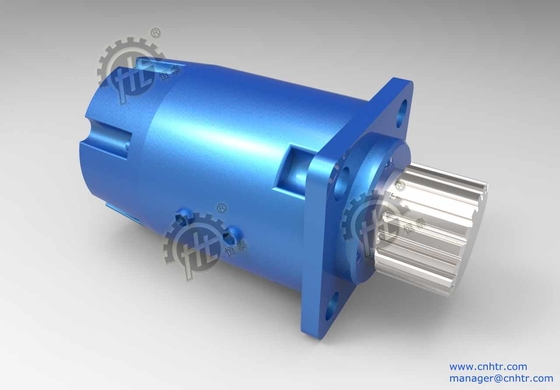

High Speed Planetary Motor Gearbox Two Stage Planetary Gear Transmission
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | planetary reduction gearbox,inline planetary gearbox |
||
|---|---|---|---|
Product Description
High Speed Planetary Motor Gearbox Two Stage Planetary Gear Transmission
Quick Details
Hengtai reducer offers planetary swing drives ranging in output torque from 15,000 in.lb. to
60,000 in.lb. Applications include truck mounted and rough terrain cranes, utility digger derricks
and any other application where rotation bearings need to be driven hydraulically.
Product Specifications
Operating Torque: 40,000 in-lbs/ 4,519 Nm
Torque: n/a
Ratio: 36:1, 18:1
Brake Torque: Consult Factory
Weight: 175 lbs/80 kg
Product Features
Heavy duty tapered roller bearings on output shaft
Spring-applied, hydraulically released brake
High efficiency planetary gearing
Available in pinion up or down models
Multiple input and output options
Applications:
Factory Certifications:
