Industrial Planetary Reduction Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HN series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD1000-USD100000 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 500 PCS PER MONTH |
Product Details
| Mode | Inline Or Right Angle | Model | P9-36 |
|---|---|---|---|
| Gear | Bevel Planetary | ||
| High Light | Low Backlash Planetary Gearbox,parallel shaft helical gearbox |
||
Product Description

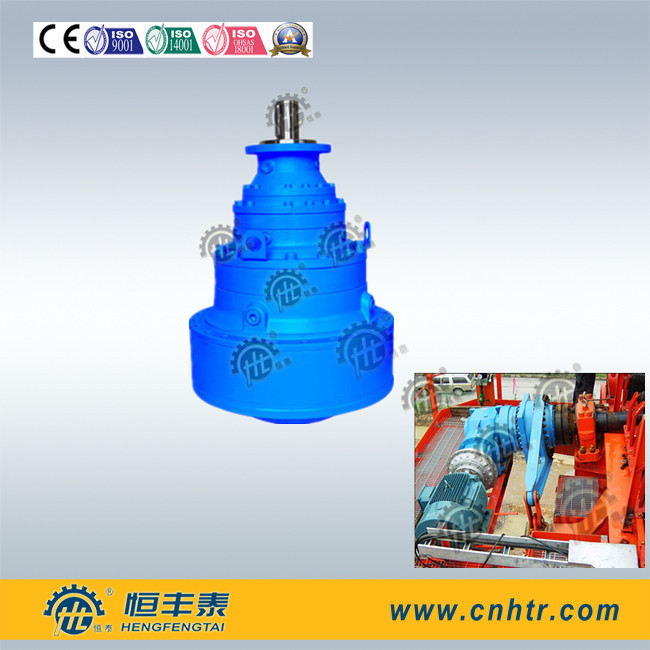

P2K17 Industrial Planetary Gearbox Torque 202000Nm With 95mm Input Shaft Shredder
Quick Details:
Power range:0.4∼ 9551 KW
Ratio rang: I = 3.5∼15000
Torque rang: 450∼11205000 N.m
Input Speed: 750rpm – 1800 rpm
Output Speed: 0.1 rpm- 350 rpm
Gearcase housing: HT cast Iron Housing suitable for outdoor installation
Mounting position: foot mounted, hollow shaft mounted, solid shaft mounted
Output shaft: hollow shaft , solid shaft
Backstop: Available on all frame sizes With/without anti-back Backstop
Descriptions:
With the HN Series Planetary Gear Reducer unit series, HENGTAI provides also standardized gear unit
solutions for higher power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic
types the PLANUREX series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of
4,000:1.
This type of efficiency ensures that a high proportion of the energy being input is transmitted through the
gearbox, rather than being wasted on mechanical losses inside the gearbox.
Benefits:
-
Low weight and compact, place-saving design owing to a load sharing system
-
Saving operating expenses owing to high efficiencies and optimized maintenance intervals
-
Easy to combine with other gear units, e.g. primary helical, worm, bevel, or bevel-helical gear units
-
Low-noise running owing to low rolling and sliding speeds at the tooth flan
Specifications:
Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W
Sizes:9,10,11,12,13,14,16,17,18,19,20
|
Model |
HN2B |
||||||||||
|
9 |
10 |
11 |
12 |
13 |
14 |
16 |
17 |
18 |
19 |
20 |
|
|
Output Torque(Nm) |
22000 |
31000 |
42000 |
60000 |
83000 |
117000 |
160000 |
202000 |
244000 |
295000 |
35400 |
Applications:
-
Roller presses
-
Slewing gear drives
-
Bucket wheel drives
-
Apron conveyor drives
-
Agitator drives
