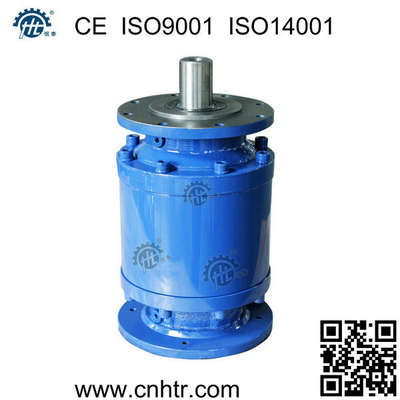

Similar to Bonfiglioli 300 series inline coaxial helical planetary gear reducer gearbox riduttori

Similar to Bonfiglioli 300 series inline coaxial helical planetary gear reducer gearbox riduttori:

Advantages:

1). With certificates CE, ISO9001, ISO14001
2). Models same with Bonfiglioli 300 series

3). Inline or right angle type
4). Compact design, high torque density
5). Low backlash, high torsional stiffness
6). Low moment of inertia, high dynamics
7). High efficiency, low noise



General technical data:

Power range: 0.37-1000 KW
Ratio rang: I = 3.5-4300
Torque range: 450-11205000 N. M
Input Speed: 750rpm-1800 rpm
Output Speed: 0.4 rpm- 350 rpm
Mounting position: Foot mounted, hollow shaft mounted, solid shaft mounted
Output shaft: Hollow shaft, solid shaft
Gearcase housing: HT cast Iron Housing suitable for outdoor installation
Backstop: Available on all frame sizes With/without anti-back Backstop,


Maintenance:

1). After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
2). Pls do not mix the mineral oil and synthetic oil.
3). Pls check the oil level in regular time.


Storage:

1). Pls do not store in outdoor.
2).Pls put cardboard, wood or other material between the products and floor. The gear box cannot directly touch the floor.



Warranty:

15 months



FAQS:

1). MOQ: 1 pcs
2). Delivery lead time: 25 -30 days.
3). Warranty: 15 months
4). Replace products: Bonfiglioli, Brevini, ROSSI···.

Model and rated torque details:
