2 Axis Industrial Planetary Gearbox Tower Concentrate Solar Plant Tracking
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HDR series |
| Minimum Order Quantity | 1pcs |
| Price | US $ 3000 - 90000 / Piece |
| Packaging Details | 1 PCS packed in ONE WOODEN CRATE |
| Delivery Time | 40 days |
| Payment Terms | T/T or LC |
| Supply Ability | 100pcs/month |
Product Details
| Backlash | 0.015 Degree | Mirror Volume | 100 Square Meters |
|---|---|---|---|
| Torsion Torque | 60000Nm | Model | HDR600 |
| Use Life | 25 Years | Torque | 3000Nm |
| High Light | Low Backlash Planetary Gearbox,helical planetary gearbox |
||
Product Description

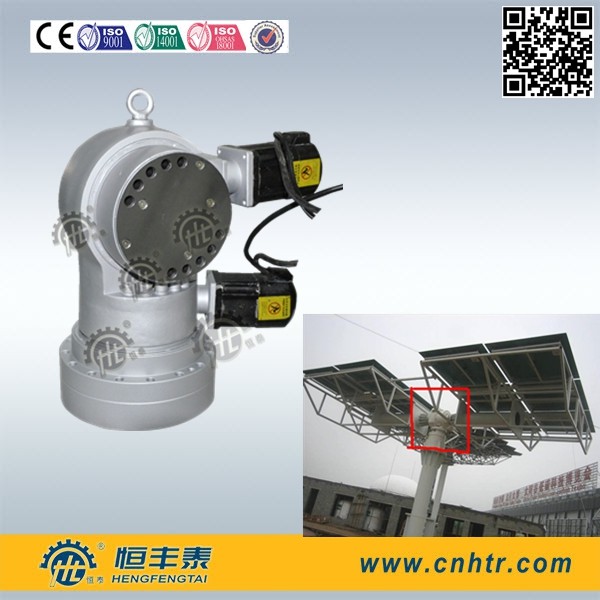

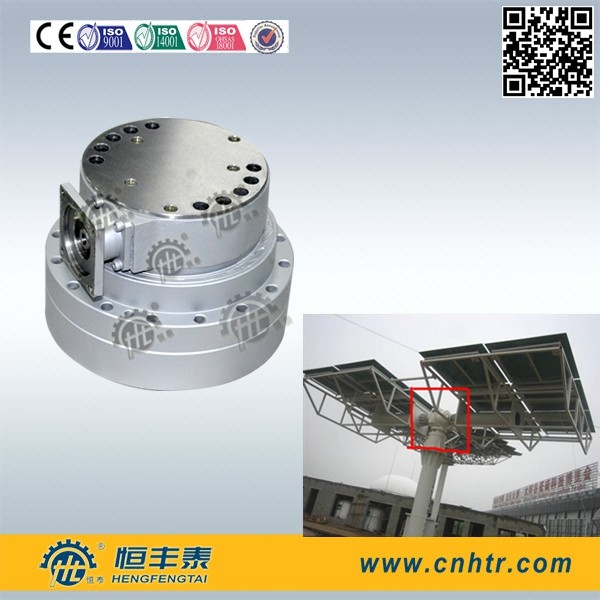

2 Axis Industrial Planetary Gearbox Tower Concentrate Solar Plant Tracking
Quick Details
Gearing Arrangement: Dual drive transmission device
Ratio: up to 49295
Nominal output torque up to 40000Nm
Max output torque up to 100000Nm
Static load 120 KN
Dynamic Load 75KN
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
|
Type |
Torque Nm |
|
|
Horizontal torque |
Elevation torque |
|
|
HJR01 |
1030 |
1360 |
|
HJR02 |
5590 |
6650 |
|
HJR03 |
10700 |
13250 |
|
HJR04 |
21350 |
25500 |
|
HJR05 |
38950 |
44500 |
|
HJR06 |
47800 |
55700 |
|
HJR07 |
59600 |
68500 |
|
HJR08 |
67600 |
75800 |
HDR high precision dual shafts drive device performance features
Multitooth meshing output, big output torque radius value, powerful carrying capacity with self-locking capacity.
Break through the general rigidity mesh transmission only 1-2 pair teeth mesh limitations. Realized the multitooth mesh together and drive output. Therefore it had high carrying capacity and anti-impact overload capacity.
Inside with big diameter bearings construction increase the loading capacity of outside support. Increase the torque stiffness and max allow torque. In the same outline dimensions the transmission capacity is 2-4 times bigger than double lead, second formed worm drive.
High-precision transmission, large output stiffness, low retrace tolerance, output backlash error below 0.015°
|
Performance
Model |
Ratio |
Rotate range (o) |
Horizontal allowable maximum dynamic torque (N.m) |
Horizontal allowable maximum static torque (N.m) |
Elevation allowable maximum dynamic torque (N.m) |
Elevation allowable maximum static torque (N.m) |
Maximum torsional stiffness (N.m/rad) |
Backlash (o) |
|
HJR01 |
35000 ~ 50000 |
360 |
5578 |
9296 |
5132 |
8553 |
15.7×10e6 |
0.015 |
|
HJR02 |
35000 ~ 50000 |
360 |
5976 |
9960 |
5756 |
9593 |
18.4×10e6 |
0.015 |
|
HJR03 |
35000 ~ 50000 |
360 |
10160 |
16933 |
9865 |
16442 |
36.0×10e6 |
0.015 |
|
HJR04 |
35000 ~ 50000 |
360 |
15216 |
25360 |
14512 |
23587 |
38.0×10e6 |
0.015 |
|
HJR05 |
35000 ~ 50000 |
360 |
27430 |
45717 |
26381 |
43968 |
10.5×10e7 |
0.015 |
|
HJR06 |
35000 ~ 50000 |
360 |
36887 |
61479 |
35785 |
59642 |
14.4×10e7 |
0.015 |
|
HJR07 |
35000 ~ 50000 |
360 |
48285 |
80474 |
47665 |
79442 |
19.0×10e7 |
0.015 |
|
HJR08 |
35000 ~ 50000 |
360 |
62595 |
104325 |
61758 |
102930 |
33.3×10e7 |
0.015 |
Competitive Advantage:
a.Vertical and elevation transmission in the same housing with compact structure lead to high anti-overturning moment,with self-locking capacity.
b.
b.Special backlash adjust design no need disassemble main components but with simple wrench and screw driver to adjust is OK.
c.
c.Use high capacity lubricate no leakage.
