xProduct Details
| Backlash | 0.015 Degree | Model | HDR30,470,600 |
|---|---|---|---|
| Torque | 3000Nm | Mirror Volume | 30 Square Meters |
| Csp Model | Tower,Disc,Parabolic | Life | 25 Years |
| Highlight | helical planetary gearbox,parallel shaft helical gearbox |
||
Product Description

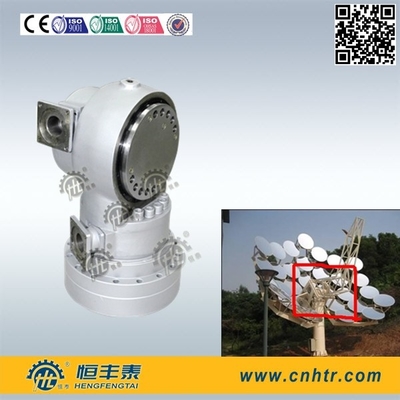

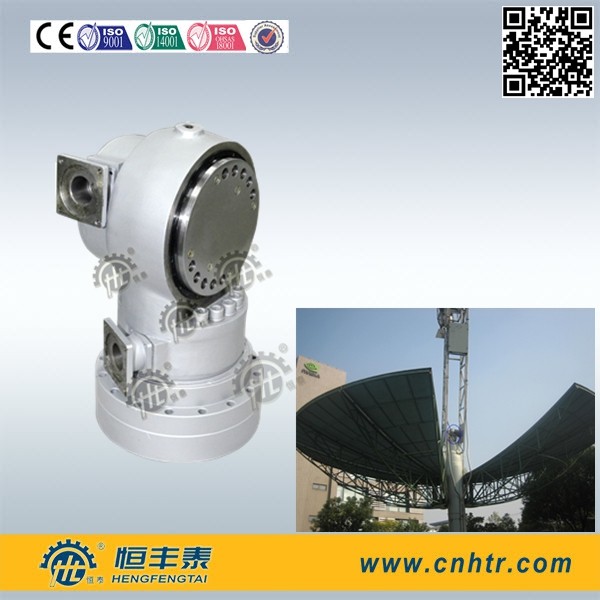

Disc Concentrate Solar Industrial Planetary Gearbox High Torque
Quick Details
Gearing Arrangement: Dual drive transmission device
Ratio: up to 49295
Nominal output torque up to 40000Nm
Max output torque up to 100000Nm
Static load 120 KN
Dynamic Load 75KN
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
|
Minimum Order Quantity: |
ONE PIECE |
|
Price: |
DEPENDS ON REQUIREMENTS |
|
Packaging Details: |
STRONG EXPORTING WOODEN CASE AND PALLETS |
|
Delivery Time: |
DEPENDS ON QUANTITY |
|
Payment Terms: |
T/T or LC |
|
Supply Ability: |
DEPENDS ON THE SPECIFIC MODEL |
HDR high precision dual shafts drive device performance features
Multitooth meshing output, big output torque radius value, powerful carrying capacity with self-locking capacity.
Break through the general rigidity mesh transmission only 1-2 pair teeth mesh limitations. Realized the multitooth mesh together and drive output. Therefore it had high carrying capacity and anti-impact overload capacity.
Inside with big diameter bearings construction increase the loading capacity of outside support. Increase the torque stiffness and max allow torque. In the same outline dimensions the transmission capacity is 2-4 times bigger than double lead, second formed worm drive.
High-precision transmission, large output stiffness, low retrace tolerance, output backlash error below 0.015°
|
Performance |
Ratio |
Rotate range |
Horizontal allowable maximum dynamic torque |
Horizontal allowable maximum static torque |
Elevation allowable maximum dynamic torque |
Elevation allowable maximum static torque |
Maximum torsional stiffness |
Backlash |
|
HJR01 |
35000 |
360 |
5578 |
9296 |
5132 |
8553 |
15.7×10e6 |
0.015 |
|
HJR02 |
35000 |
360 |
5976 |
9960 |
5756 |
9593 |
18.4×10e6 |
0.015 |
|
HJR03 |
35000 |
360 |
10160 |
16933 |
9865 |
16442 |
36.0×10e6 |
0.015 |
|
HJR04 |
35000 |
360 |
15216 |
25360 |
14512 |
23587 |
38.0×10e6 |
0.015 |
|
HJR05 |
35000 |
360 |
27430 |
45717 |
26381 |
43968 |
10.5×10e7 |
0.015 |
|
HJR06 |
35000 |
360 |
36887 |
61479 |
35785 |
59642 |
14.4×10e7 |
0.015 |
|
HJR07 |
35000 |
360 |
48285 |
80474 |
47665 |
79442 |
19.0×10e7 |
0.015 |
|
HJR08 |
35000 |
360 |
62595 |
104325 |
61758 |
102930 |
33.3×10e7 |
0.015 |
|
Maximum radial load (N) |
Maximum axial load (N) |
Maximum bending stiffness (N.m/rad) |
Normal speed (o/min) |
Maximum driving speed (o/min) |
Weight (kg) |
Tilting moment (N.m) |
Environment temperature (℃) |
|
39000 |
25300 |
89.2×10e8 |
0.14 |
12 |
100 |
11000 |
-10 ~ +50 |
|
40000 |
26667 |
90.4×10e8 |
0.14 |
12 |
220 |
12000 |
-10 ~ +50 |
|
45000 |
30000 |
17.8×10e9 |
0.14 |
12 |
320 |
28000 |
-10 ~ +50 |
|
50000 |
33333 |
23.5×10e9 |
0.14 |
12 |
490 |
35000 |
-10 ~ +50 |
|
60000 |
40000 |
65.4×10e9 |
0.14 |
12 |
850 |
60000 |
-10 ~ +50 |
|
64000 |
42667 |
85.9×10e9 |
0.14 |
12 |
1050 |
68000 |
-10 ~ +50 |
|
70000 |
46667 |
10.5×10e10 |
0.14 |
12 |
1400 |
75000 |
-10 ~ +50 |
|
75000 |
50000 |
13.6×10e10 |
0.14 |
12 |
1700 |
80000 |
-10 ~ +50 |
Competitive Advantage:
Hengfengtai started the research and produce on Solar Thermal Plant Drive Device from 2008. We cooperated with Chinese Academy of Sciences electrician research institue, Huangming solar power, Huaneng Clean power academy, First flight energy saving solar thermal company, China Sciences Group Spring Scenery, Beijing Union Communicate heart thermal, Guangdong Five Star Solar Energy, One Japan company etc.
After yearly trial use,customer usually feedback the drive device had small output backlash, large loading capacity, high transmission efficiency.
Manufacture capacity
- 350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
- 2 manufacture plants with area more than 50000 square meters.
- More than 300sets of advanced imported equipments: German CNC, Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc
Quality Control System
- ISO 9001-2000 Certificate
- ISO 14001 Certificate
- GB/T 28000 Certificate
- CMM Inspection on each batch of gears
- Gear Inspection Center
- Material Inspection Lab
- Trial Run Inspection
- Leakage Inspection
- and etc
