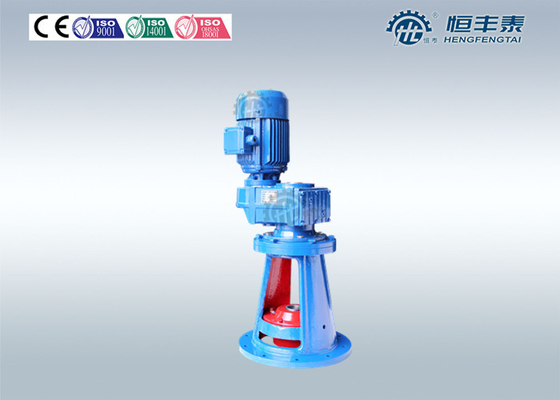

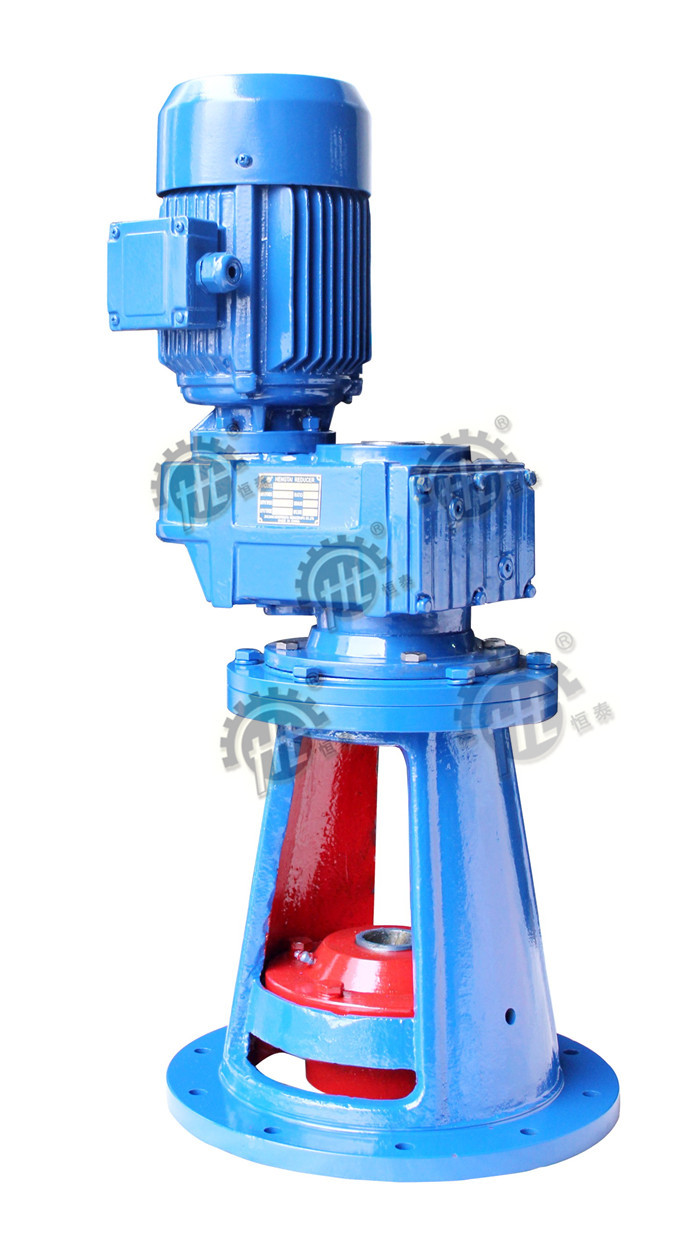

Heavy Duty Tank Side Entry Agitator industrial mixers and blenders

Heavy Duty Tank Side Entry Agitator industrial mixers and blenders

Quick Details:

• Gearing Arrangement: Helical
• Output Torque:110~15300N.m
• Rated Power:0.02~200KW
• Input Speed: Accordingly
• Output Speed: 9.5~385RPM
• Place of Origin: Zhejiang, China (Mainland)
• Model Number:HF series
• Brand Name: HENGTAI
• Color: According to customer
• Ratio: 3.71~276.6
• Mounting position: Vertical mounted
• Material for box: Cast Iron
• Packing: Standard Fumigation Wooden

Other name:

SEW F series reducers for agitating industry

Multi-stage F series agitator reducer

Agitator gear box with High power density

Descriptions:

HF series Industrial Mixer Blender has many different sizes and designs to ensure the gearmotors can be

used in wide variety of applications even under the most unfavorable conditions.

Your benefits:

1.     High power density

2.     Long service life

3.     Multi-stage gear unit for low output speeds

4.     Two-stage or three-stage versions

5.     Same reducer as SEW F series

        High permitted overhung loads

Warranty:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

Applications:

Widely applied for the agitator industries,such as Building machinery-Concrete Mixer,Liquid Mixer,Semi-

liquid Mixer and Rubber Machines etc.

Specifications:

Note:

FA:  Single key hollow shaft connected

FF:  Flange-mounted

FAF: Flange-mounted single key hollow shaft output

FAZ: Small-flange-mounted hollow shaft output

FHZ: Locking disc hollow shaft connected
