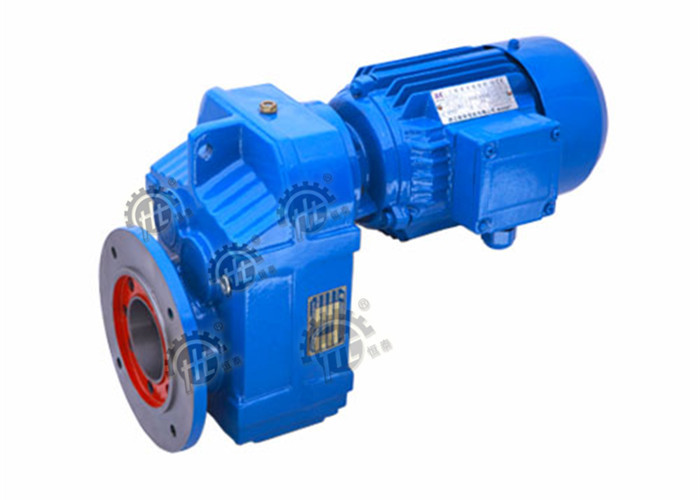

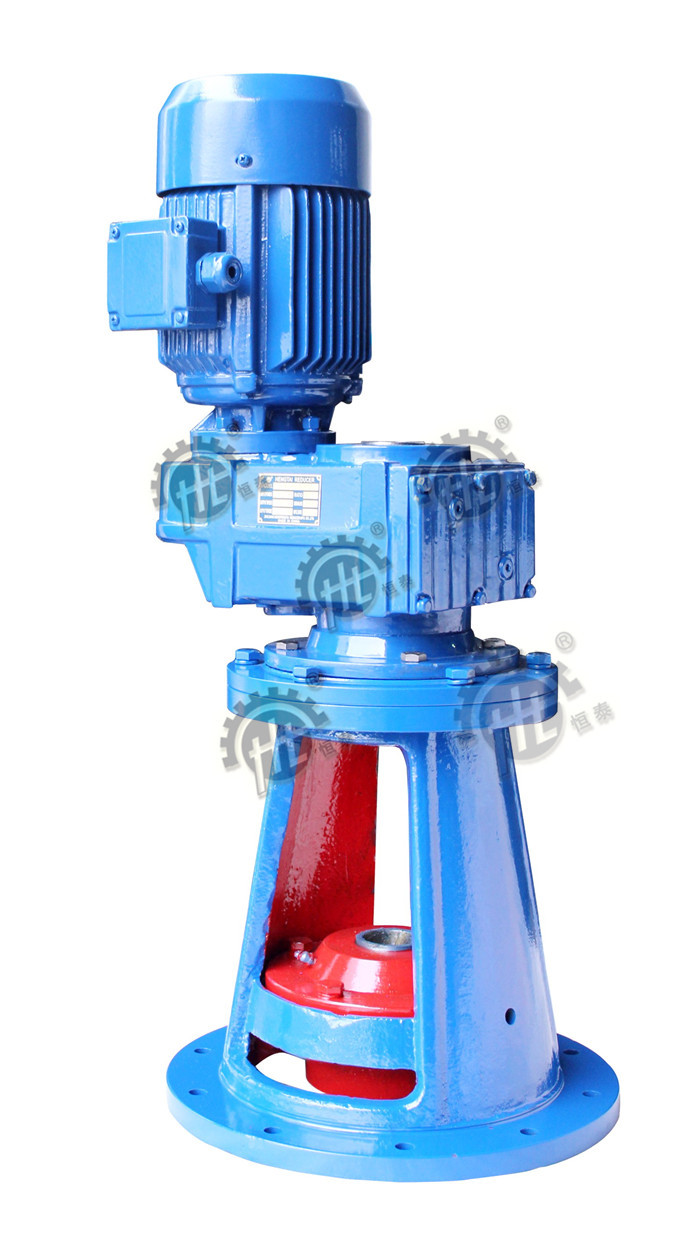

Tank Agitators Shaft Mounted Speed Reducer , Industrial Tank Mixers

Tank Agitators Shaft Mounted Speed Reducer , Industrial Tank Mixers





Quick Details:





·                                 Gearing Arrangement: Helical



·                                 Output Torque:110~15300N.m



·                                 Rated Power:0.02~200KW



·                                 Input Speed: Accordingly



·                                 Output Speed: 9.5~385RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number:HF series



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 3.71~276.6



·                                 Mounting position: Vertical mounted



·                                 Material for box: Cast Iron



.                                 Packing: Standard Fumigation Wooden



Other name:





SEW F series reducers for agitating industry

Multi-stage F series agitator reducer

Agitator gear box with High power density







Descriptions:





HF series Industrial Mixer Blender has many different sizes and designs to ensure the gearmotors can be



used in wide variety of applications even under the most unfavorable conditions.









Specifications:







Model	37	47	57	67	77	87
Structure	F,FA,FF,FAF,FAZ,FHZ
Input Power KW	0.12~3	0.12~4	0.12~5.5	0.18~7.5	0.37~18.5	0.75~22
Transmission Ratio   i	3.71~129.8	5.01~189.2	5.26~193.8	3.98~174.7	4.34~199.4	4.06~276.6
Allowed Torque  Nm	170	340	510	705	1280	2550
Weight   kgs	14.5	20	38	61	100	165





Modelmo	87	97	107	127	157
Structure	F,FA,FF,FAF,FAZ,FHZ
Input Power KW	0.75~22	0.75~30	2.2~55	4~90	11~160
Transmission Ratio   i	4.06~276.6	4.7~279.9	6.26~250.7	4.61~170.4	11.67~262.9
Allowed Torque  Nm	2550	3670	6670	10200	15300
Weight   kgs	165	290	450	770	1870





Note:



FA:  Single key hollow shaft connected



FF:  Flange-mounted



FAF: Flange-mounted single key hollow shaft output



FAZ: Small-flange-mounted hollow shaft output



FHZ: Locking disc hollow shaft connected









Your benefits:





1.     High power density



2.     Long service life



3.     Multi-stage gear unit for low output speeds



4.     Two-stage or three-stage versions



5.     Same reducer as SEW F series



        High permitted overhung loads







Applications:





Widely applied for the agitator industries,such as Building machinery-Concrete Mixer,Liquid Mixer,Semi-



liquid Mixer and Rubber Machines etc.



Warranty:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.









Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.







3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
