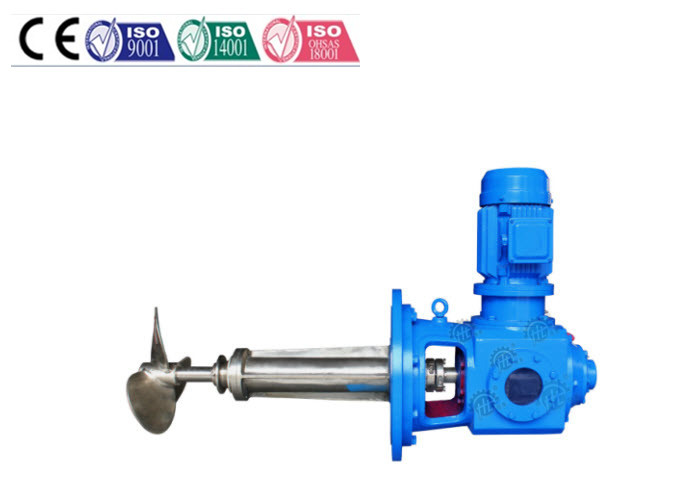

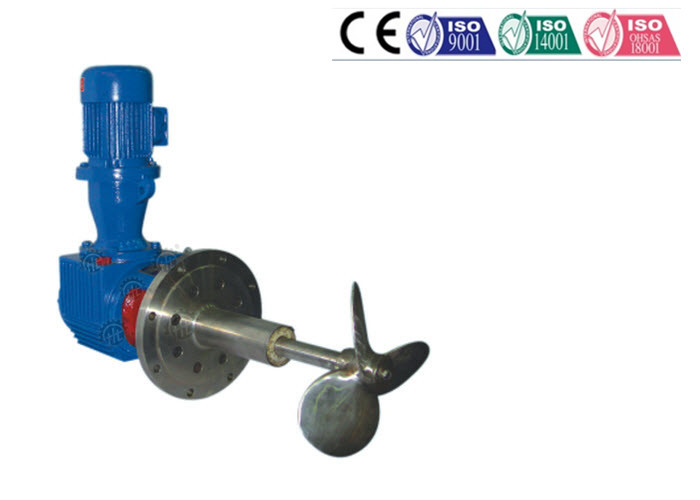

Mechanical Agitator Side Entry Flange Mounted Cast Iron Helical
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | FL series |
| Minimum Order Quantity | ONE PIECE |
| Price | DEPENDS ON REQUIREMENTS |
| Packaging Details | 1PC PACKED STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | DEPENDS ON THE SPECIFIC MODEL |
Product Details
| High Light | side entry mixer,industrial agitators mixers |
||
|---|---|---|---|
Product Description
Liquid Mixer Agitator / Mechanical Agitator Side Entry Flange Mounted
Quick Details:
| Power range (kw) | 0.55 < P < 22 |
| Ratio range | 2.73 < i < 4.09 |
| Speed range (rpm) | 240 < n < 550 |
| Torque range (N.m) | 65 < M < 650 |
| Material of Housing | Cast Iron |
| Gear arrangement | Helical |
Descriptions:
FL series Side Entry Agitator is designed as box structure with nice look and well-formed and the motor is
fixed on the housing directly.This series Side Entry Agitator can be mounted by foot or by flange.When the
mechanical airproof need repairing or changing,no need to empty the left liquid,only pull out mixer shaft for
some distance to make the block head enter intor the airproof seat,then turn the shaft,the block head and
airproof seat will be fastened to keep the liquid out of the outside,installed pushing agitate and formed a
agitator with small power,high rotating speed and efficiency.
Specifications:
|
Type |
Outview axis diameter |
Puddler |
Weight(kg) |
|
FL40 |
φ40 |
TX250-TX400 |
<125 |
|
FL55 |
φ55 |
TX400-TX550 |
<370 |
|
FL65 |
φ65 |
TX500-TX700 |
<710 |
Benefits:
1. Strong carring,Long life
2. Small volume and Light Weight
3. Small Power,High Rotating Speed and Efficiency.
4. Save Electric energy of 30-50% if large-scale milled kettle in the condition of the same milled
effect.
Other name:
Side enter agitator reducer
Awl gear reducer applied for agitating industry
Coned gear box with more transmission efficiency
Warranty:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
Applications:
Mainly applied for Chemical Industry and Machinery for Food Industry.
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more than 40 professional technical engineers. We had 49 items patents including 7 items of invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process selling network. Relying on high quality products and perfect service, our products have been successfully applied by more than 5000 customers.
