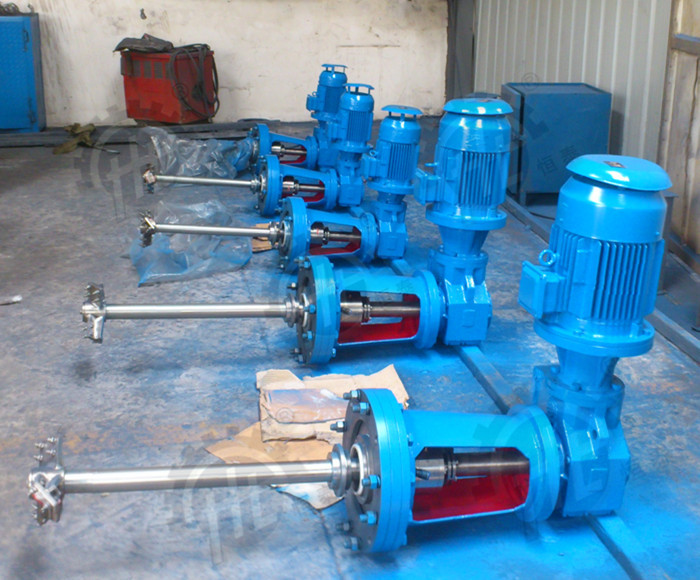

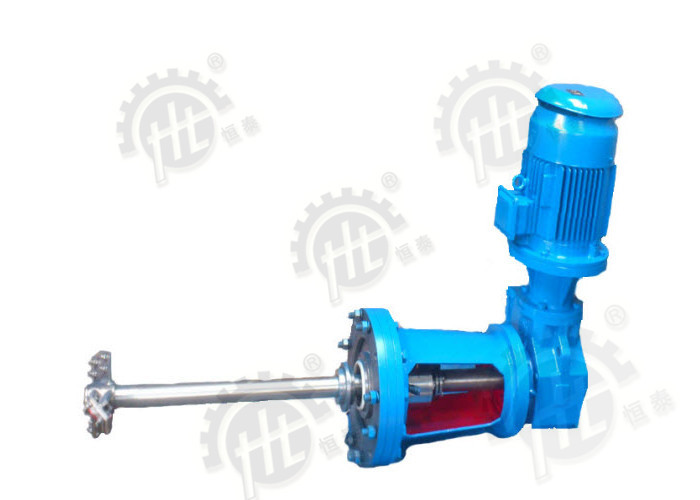

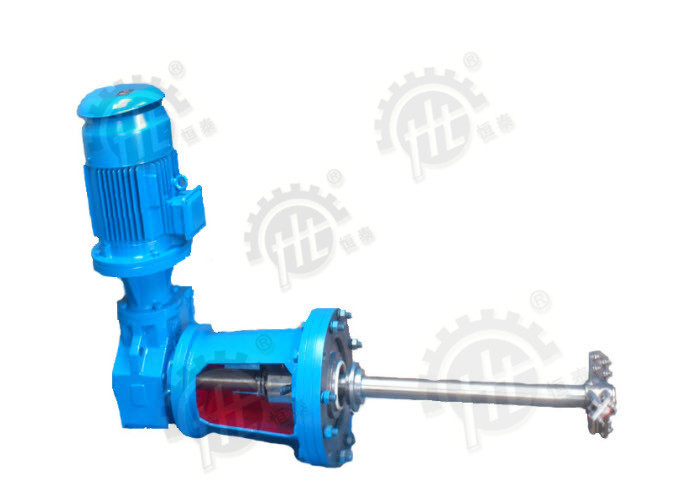

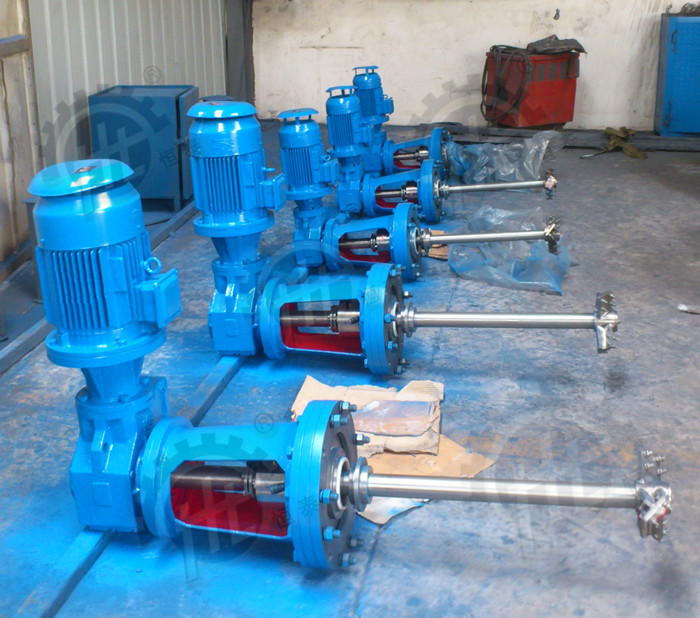

Shaft Mounted Industrial Agitators Mixers Reducer Side Entry

Shaft Mounted Industrial Agitators Mixers Reducer Side Entry





Quick Details:



Power range (kw) : 0.55 < P < 22



Ratio range : 2.73 < i < 4.09



Speed range (rpm) : 240 < n < 550



Torque range (N.m) : 65 < M < 650



Gear arrangement: Helical



Material of Housing: Cast Iron



Color: According to customer



Mounting position: Shaft mounted



Material for box: cast iron



Packing: Strong wooden cases for exporting









Descriptions:





FL series Side Entry Agitator reducer The machine is with shutoff equipment when it is urgent.When  the



mechanical airproof need repairing or changing,no need to empty the left liquid,only pull out mixer shaft for



some distance to make the block head enter intor the airproof seat,then turn the shaft,the block head and



airproof seat will be fastened to keep the liquid out of the outside,installed pushing agitate and formed a



agitator with small power,high rotating speed and efficiency.It is proved that in large-scale milled kettle can



save electric energy of 30%~50% in the connection of the same milled effect.









Specifications:





Type	Outview axis diameter	Puddler	Weight(kg)
FL40	φ40	TX250-TX400	<125
FL55	φ55	TX400-TX550	<370
FL65	φ65	TX500-TX700	<710





Benefits:





1.     Strong carring,Long life



2.     Small volume and Light Weight



3.     Small Power,High Rotating Speed and Efficiency.



4.     Save Electric energy of 30-50% if large-scale milled kettle in the condition of the same milled



        effect.





Other name:



 Side enter agitator reducer



       Awl gear reducer applied for agitating industry



       FL series bevel gear reducer mixer (Side Entry Agitator)







Warranty:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





1. Mainly applied for Chemical Industry and Machinery for Food Industry.



2. Pushing agitator, it is used in the liquid of low viscosity, usually operates in turbulent flow zone, speed of



revolution generally is 100-500r/m, speed of revolution of direction cut is 3-15m/s. It is necessary for center



entrance to use under the condition a whole dam board operates







THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution
