Flender Planetary Shaft Mounted Speed Reducer For Filter Presses
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HN series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | DEPENDS ON QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | Low Backlash Planetary Gearbox,parallel shaft helical gearbox |
||
|---|---|---|---|
Product Description

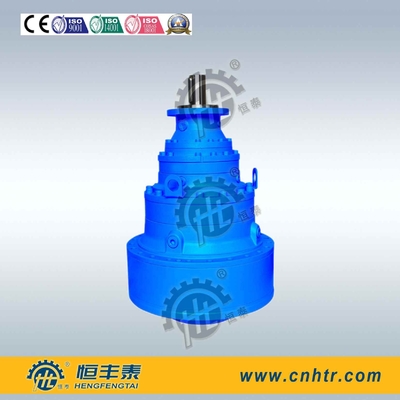

Flender Planetary Shaft Mounted Speed Reducer For Filter Presses
Quick Details:
Models:
P2S, P3N, P3S, P2K, P2L, P3K.
B=Solid shaft with parallel key or involute splines
A:=hollow shaft with shrink disk or involute splines
K=bevel-helical gear stage
L=bevel gear stage
S=helical gear stage
Power range:0.4∼ 9551 KW
Ratio rang: I = 3.5∼15000
Torque rang: 450∼11205000 N.m
Input Speed: 750rpm – 1800 rpm
Output Speed: 0.1 rpm- 350 rpm
Mounting position: foot mounted, hollow shaft mounted, solid shaft mounted
Output shaft: hollow shaft , solid shaft
Gearcase housing: HT cast Iron Housing suitable for outdoor installation
Backstop: Available on all frame sizes With/without anti-back Backstop
Applications:
Waste water treatment thickener central drive
Filter presses
Flocculation appaarata
Raking equipment
rotary rakes
Pre-thickeners
screw pumps
certrifugal pumps.
Specifications:
Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W
Sizes:9,10,11,12,13,14,16,17,18,19,20
Model | HN2B | ||||||||||
9 | 10 | 11 | 12 | 13 | 14 | 16 | 17 | 18 | 19 | 20 | |
Output Torque(Nm) | 22000 | 31000 | 42000 | 60000 | 83000 | 117000 | 160000 | 202000 | 244000 | 295000 | 354000 |
Competitive Advantage:
1. Raw material from original steel rolling factory.
2. Strict controll on gear processing heat treatment.
3. 18 months quality guarantee.
