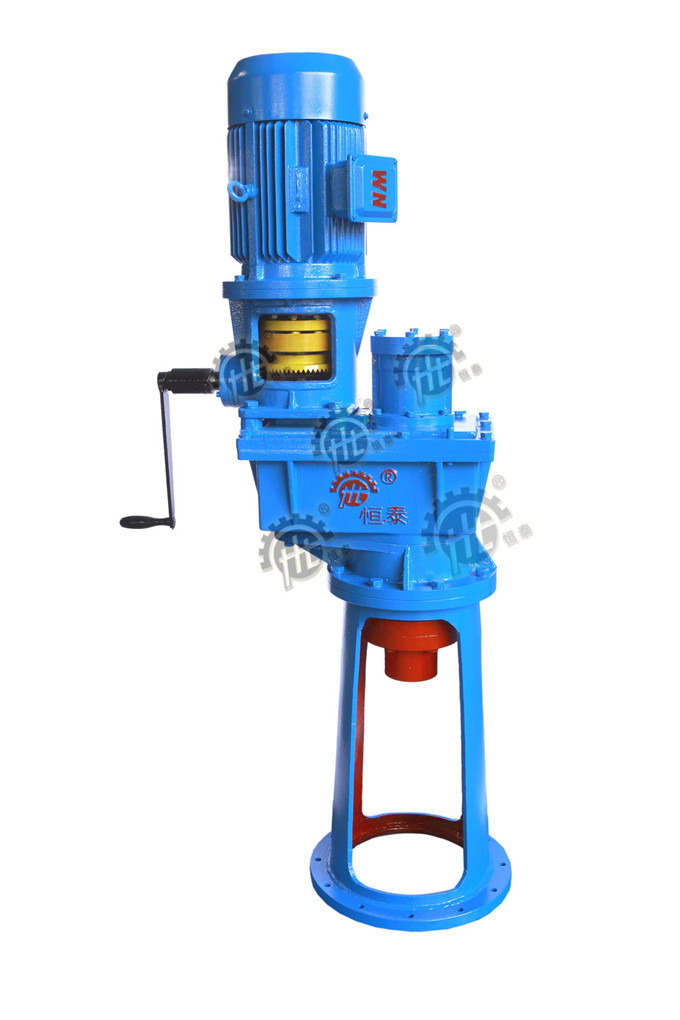

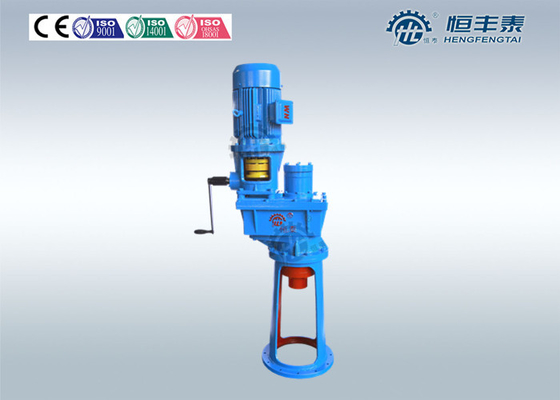

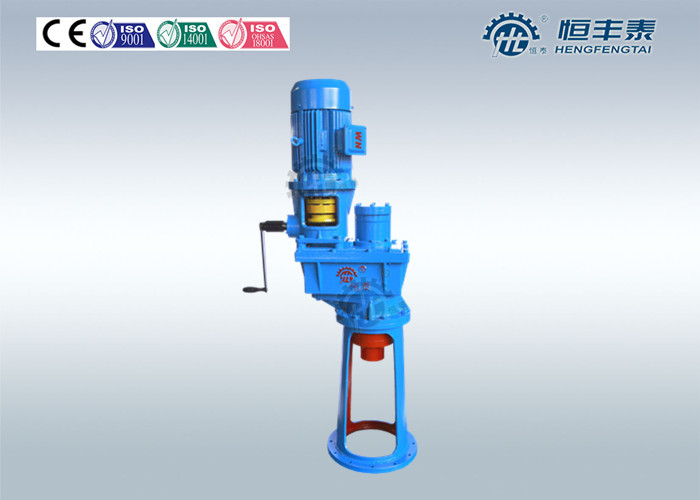

Helical Liquid Mixer Agitator Gearbox Vertical mounted for Metallurgy

Helical Side Entry Agitator Gearbox Vertical mounted for Metallurgy





Quick Details:





 1,  Gearing Arrangement: Helical



 2,  Output Torque:90~20000N.m



 3,  Rated Power: 0.55~200KW



 4,  Input Speed: According



 5,  Output Speed: 34~330RPM



 6,  Place of Origin: Zhejiang, China (Mainland)



 7,  Model Number:LPB series



 8,  Brand Name: HENGTAI



 9,  Color: According to customer



10,  Ratio: 4.5~22



11,  Mounting position: Vertical mounted



12,  Material for box: Cast Iron



13,  Packing: Standard Fumigation Wooden







Other name:





Agitator gearbox



Aluminium application agitator



Metallurgy Blender







Descriptions:





LPB series Industrial Mixer Blender is vertical parallel shaft two-grade reducer.Industrial Mixer Blender is a



kind of new product absorbed advance technology from home and abroad and designed on the base of



parallel shaft horizontal gear reducer.





Your benefits:





1.     Low Noise



2.     Low Speed of Revolution



3.     Big Torsion



4.     Super Long Agitator Shaft,BUT Anti Leaking.



5.     The Structure Simple,Operation Convenient,Saving Strength,Safe,Reliable.



6.     Automatically coming away when handwork is stopping and not affecting opening mechanical by



       electricity.







Warranty:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





Widely applied for Chemical Industry,Machines for Plastic Industry,Rubber Machines and Metal Industry etc.





Such as:

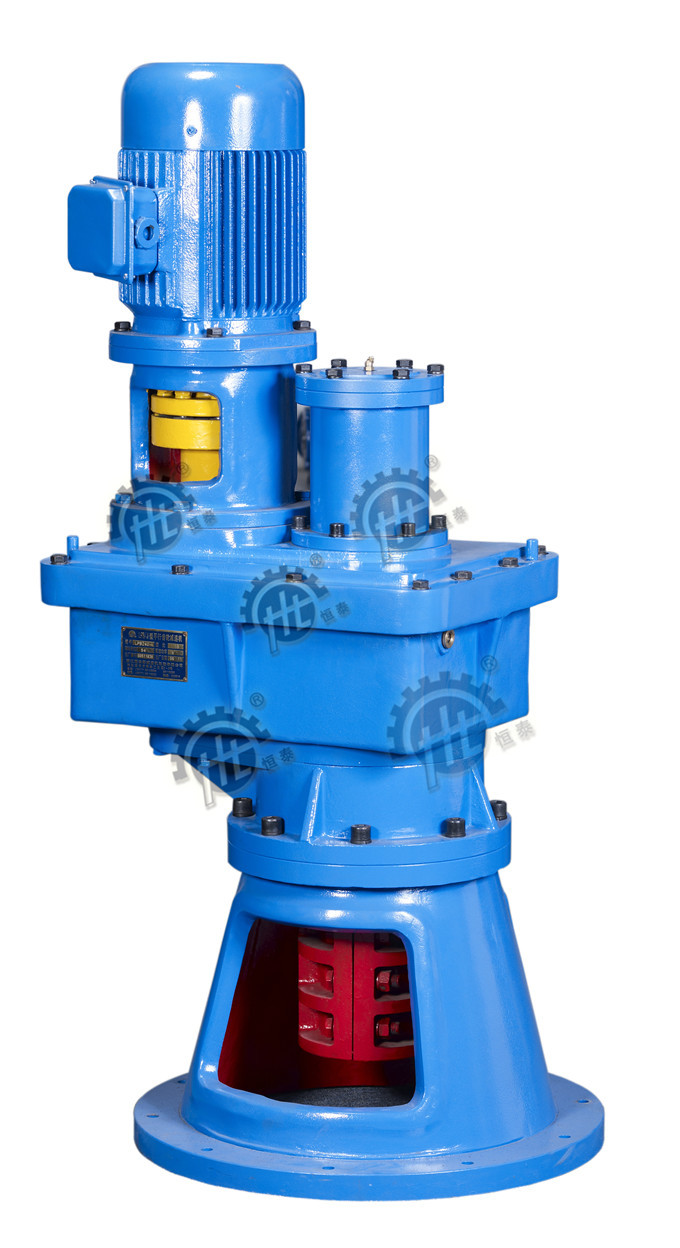

                  Photo: LPB series applied for Aluminum Industry







Specifications:





The Outview size of type LPJ/LPB two-stage reducer:



Type	Axis diameter	Overall size						Setup size												Weight(kg)
		B	L	H1	H	G	G1	D1(H8)	D2	D3	C	h	n	do	F	L1	L2	b	t
171	40k6	315	425	375	665-710	145	280	200	230	260	5	16	6	14	5	82	85	12	35		105
192	50k6	340	440	405	695-773	170	330	230	260	290	5	16	6	14	5	82	100	16	44.5		150
215	60m6	360	470	420	719-1005	185	350	230	260	290	5	16	6	14	5	105	130	18	53		160
240	70m6	400	520	520	926-1160	195	380	270	305	340	6	16	8	18	8	105	130	20	62.5		272
272	80m6	410	550	560	1030-1300	220	420	320	360	400	6	22	8	18	8	130	145	22	71		300
305	90m6	450	600	605	1150-1300	250	500	320	360	400	6	22	8	18	8	130	170	25	81		330
375	90m6	600	730	700	1455-1663	300	580	455	500	580	8	30	8	23	8	130	170	25	81		440
500	100m6	720	1050	955	1755-1935	400	820	640	720	780	10	35	12	23	8	160	170	28	90		980
600	130m6	850	1240	1065	1950-2355	500	930	700	760	820	10	40	12	23	10	180	225	32	119		1610











Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.







3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
