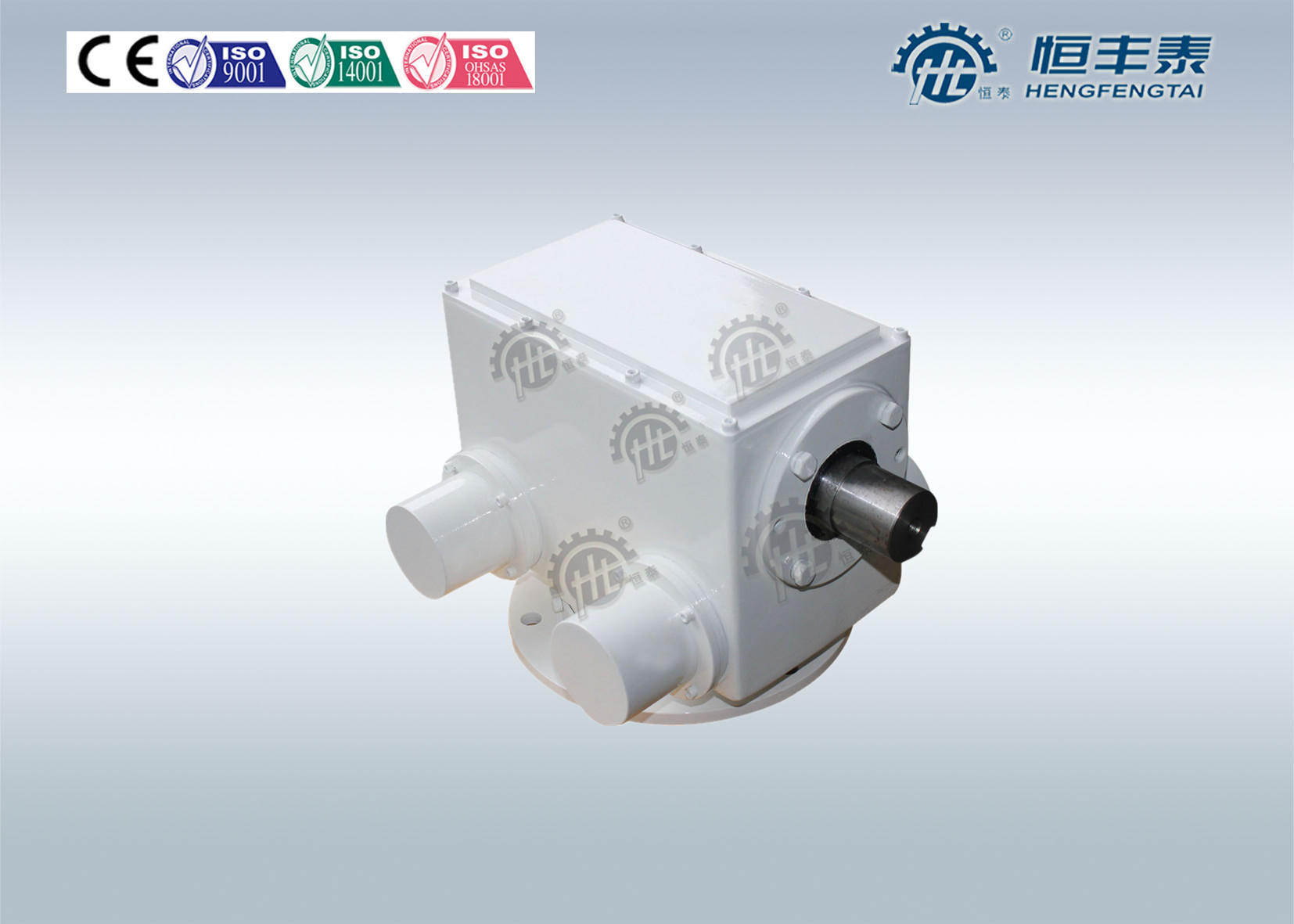

Engine Vertical Worm Gear Reducer Gearbox Dual Drive Power Transmission

Engine Vertical Worm Gear Reducer Gearbox Dual Drive Power Transmission





Quick Details



Gearing Arrangement: Dual drive transmission device



Ratio: up to 49295



Nominal output torque up to 40000Nm



Max output torque up to 100000Nm



Static load 120 KN



Dynamic Load 75KN



Place of Origin: Zhejiang, China (Mainland)



Brand Name: HENGTAI



Color: According to customer



Packing: Strong wooden cases for exporting





Description:



HJW series Worm  Gear Reducer of heat power precision transmission system has their own proprietary intellectual property rights is derived by high



precision worm gear and worm. HJW series Worm Gear Reducer of heat power precision transmission system combined horizontal transmission and



pitching transmission in a gearbox, which adopts the drive principle of a high-precision gears and precision



rolling gears, to accomplish full 360 tracking and accurate location.



Your benefits:



1. Vertical and elevation transmission in the same housing with compact structure lead to high anti-



overturning moment, with self-locking capacity.



2. Special backlash adjust design no need disassemble main components but with simple wrench and



screw driver to adjust is OK.



3. Use high capacity lubricate no leakage.



Specification:



Ratio: up to 49295



Nominal output torque up to 40000Nm



Max output torque up to 100000Nm



Static load 120 KN



Dynamic Load 75KN



Applications:



Widely applied for energy, military industry, aerospace, industrial automation and other transmission



equipment industries, especially for solar thermal power generation and tracking system of heliostat, the



sun tracking system of photovoltaic panels, radar tracking system etc.





Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.



The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution











































Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.



Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
