Electric Motor Speed Inline Cycloidal Gear Box , Compressor / Converter Gearbox
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | cycloidal speed reducer,cyclo gear reducer |
||
|---|---|---|---|
Product Description

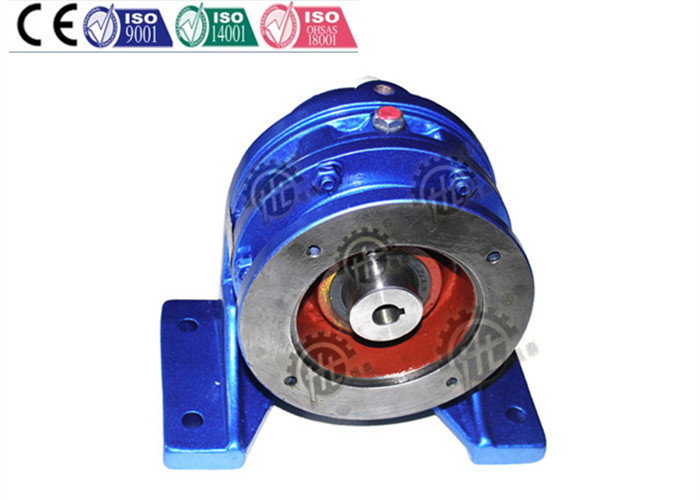

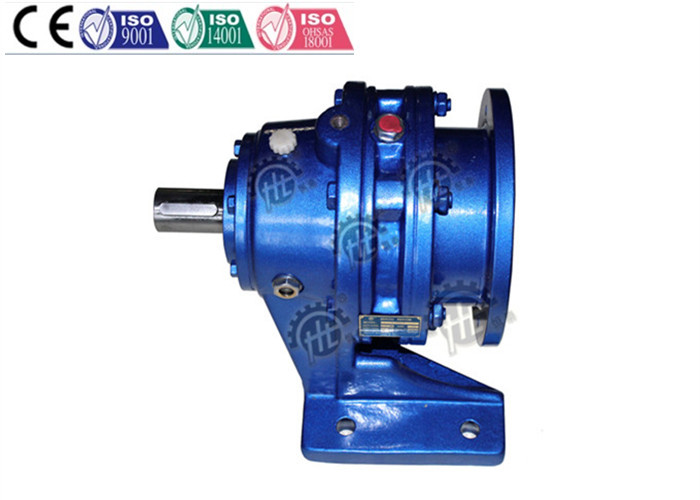

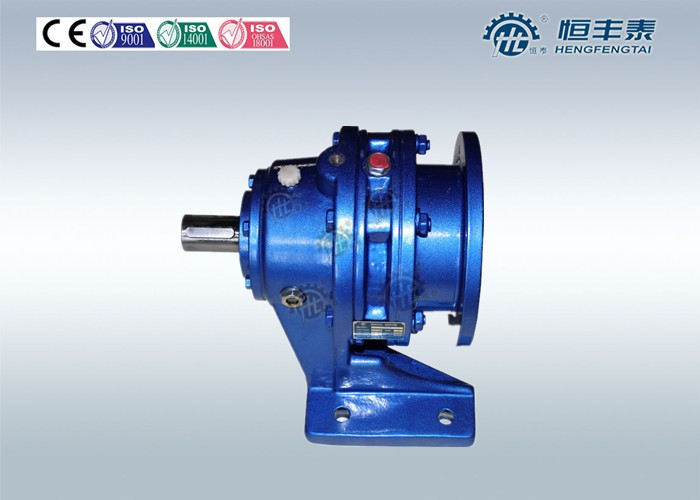

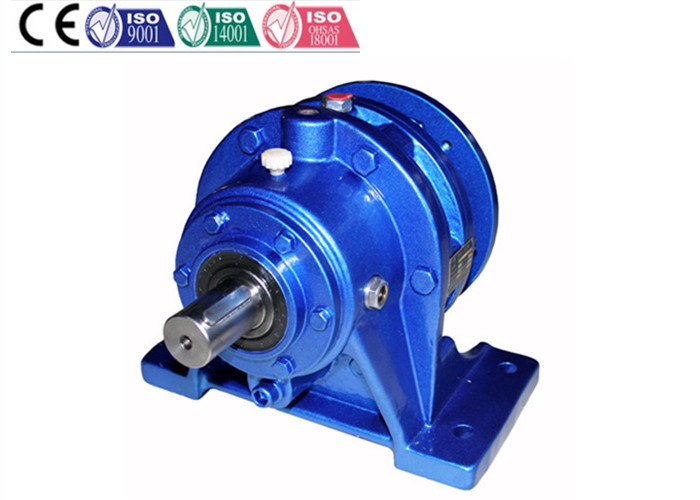

Electric Motor Speed Inline Cycloidal Gear Box , Compressor / Converter Gearbox
Quick Details:
Applications:
Ceramic, drinking, food, light industry, textile, mineral and metallurgical, lifting and transportation, printing
and dyeing industry etc.
| Output Torque | 70Nm-20000 N.m |
| Rated Power | 0.37-55KW |
| Input Speed | 960-1500 rpm |
| Output Speed | 11-167RPM |
| Ratio | 9-87 |
| Output shaft diameter | 25-130MM |
1) Input power: 0.25-18.5Kw
2) Single stage: 11,17, 23, 29, 35,43, 59,71,87
3) Double stage: 121, 187, 289, 385, 473, 595
4) Output form:Solid shaft
Descriptions:
1) Structure: base-mounted, flange-mounted
2) Chief part material: bearing steel
3) Simultaneous multi teeth operation, strong capability for resisting overloading, reliable in operation and
long life.
4) Input and output shafts in the same axis for small volume
5) Smooth and stable run and low noise
6) High speed ratio and efficiency
Specifications:
|
Model |
Ratio |
Power |
Max torque |
|
HXW1 |
9-87 |
0.25-0.37kw |
70N.m |
|
HXW2 |
9-87 |
0.25-1.5kw |
150N.m |
|
HXW3 |
9-87 |
0.55-2.2kw |
250N.m |
|
HXW4 |
9-87 |
0.75-4kw |
500N.m |
|
HXW5 |
9-87 |
1.5-11kw |
1000N.m |
|
HXW6 |
9-87 |
2.2-15kw |
2000N.m |
|
HXW7 |
11-87 |
3-15kw |
2700N.m |
|
HXW8 |
11-87 |
4-18.5kw |
4500N.m |
|
HXW9 |
11-87 |
4-22kw |
9000N.m |
|
HXW10 |
11-87 |
11-45kw |
12000N.m |
|
HXW11 |
11-87 |
15-55kw |
20000N.m |
Other name:
Foot mounted Cyclo gearmotor
cyclo gearbox
inline cycloid gearmotor
Warranty:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
|
Main models of this kind of MB series cyclo gearbox : |
|
MBW , MBWY |
|
MBL(F),MBL(F)Y |
|
MBW-C |
|
MBL(F)-C,MBL(F)Y-C |
|
MBWY-CT |
|
MB-WJ and MBY-XW |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
