Bearing Steel Inline Gear Reducer Industrial Power Transmission Cycloidal Gearbox

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXW series
Minimum Order Quantity 5 PIECES
Price USD 105-4379
Packaging Details 1pcs packed in one small box, 7-8 small boxes packed in one wooden crate
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 2000pcs/month
Product Details
High Light

cycloidal speed reducer

,

speed reduction gearbox
Leave a Message
Product Description

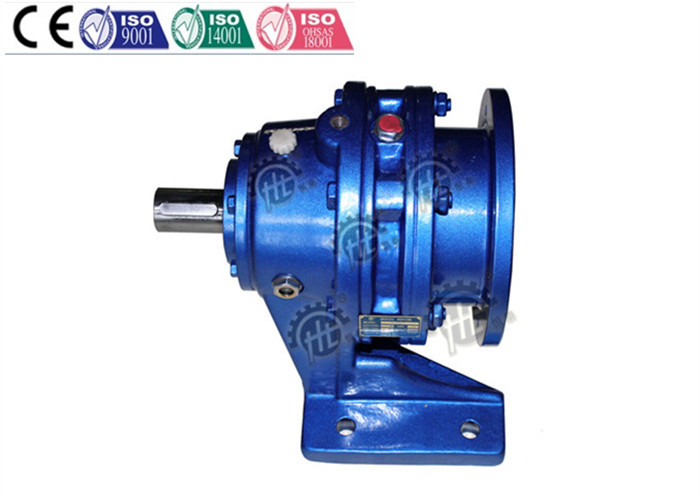

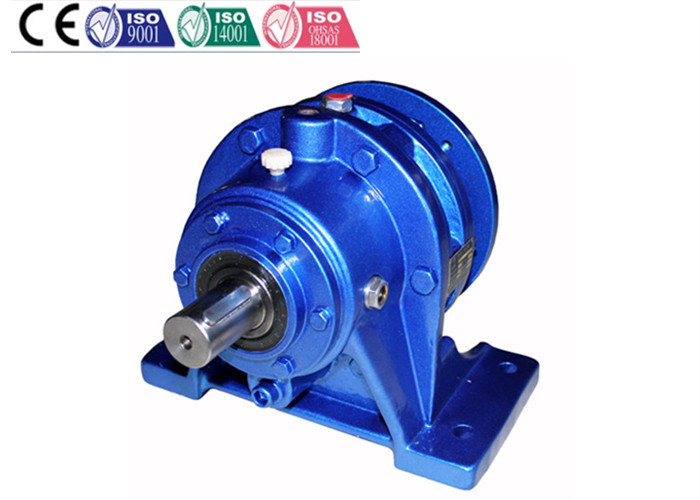

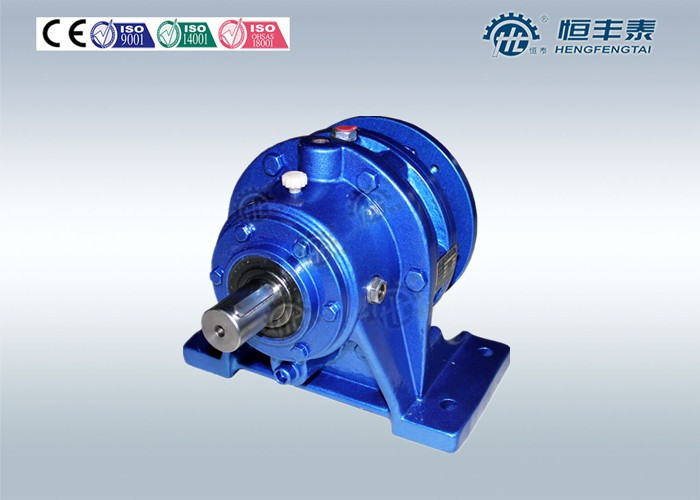

Bearing Steel Inline Gear Reducer Industrial Power Transmission Cycloidal Gearbox





Quick Details:



Output Torque 70Nm-20000 N.m
Rated Power 0.37-55KW
Input Speed 960-1500 rpm
Output Speed 11-167RPM
Ratio 9-87
Output shaft diameter 25-130MM





1) Input power: 0.25-18.5Kw



2) Single stage: 11,17, 23, 29, 35,43, 59,71,87



3) Double stage: 121, 187, 289, 385, 473, 595



4) Output form:Solid shaft







Descriptions:





1) Structure: base-mounted, flange-mounted



2) Chief part material: bearing steel



3) Simultaneous multi teeth operation, strong capability for resisting overloading, reliable in operation and



   long life.



4) Input and output shafts in the same axis for small volume



5) Smooth and stable run and low noise



6) High speed ratio and efficiency







Specifications:



Model

Ratio

Power

Max torque

HXW1

9-87

0.25-0.37kw

70N.m

HXW2

9-87

0.25-1.5kw

150N.m

HXW3

9-87

0.55-2.2kw

250N.m

HXW4

9-87

0.75-4kw

500N.m

HXW5

9-87

1.5-11kw

1000N.m

HXW6

9-87

2.2-15kw

2000N.m

HXW7

11-87

3-15kw

2700N.m

HXW8

11-87

4-18.5kw

4500N.m

HXW9

11-87

4-22kw

9000N.m

HXW10

11-87

11-45kw

12000N.m

HXW11

11-87

15-55kw

20000N.m





Other name:



Foot mounted Cyclo gearmotor



      cyclo gearbox



      inline cycloid gearmotor







Warranty:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.





Applications:





Ceramic, drinking, food, light industry, textile, mineral and metallurgical, lifting and transportation, printing



and dyeing industry etc.



Main models of this kind of MB series cyclo gearbox :

MBW , MBWY

MBL(F),MBL(F)Y

MBW-C

MBL(F)-C,MBL(F)Y-C

MBWY-CT

MB-WJ and MBY-XW





Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.







3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.



Bearing Steel Inline Gear Reducer Industrial Power Transmission Cycloidal Gearbox 0
