Shaft Mounted Cycloidal Inline Motor Gear Reducer For Turbine Fan / Concrete Mixer

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXL series
Minimum Order Quantity 5 PIECES
Price DEPENDS ON REQUIREMENTS
Packaging Details 1pcs packed in one small box, 7-8 small boxes packed in one wooden crate
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 2000pcs/month
Product Details
High Light

cyclo gear reducer

,

speed reduction gearbox
Leave a Message
Product Description

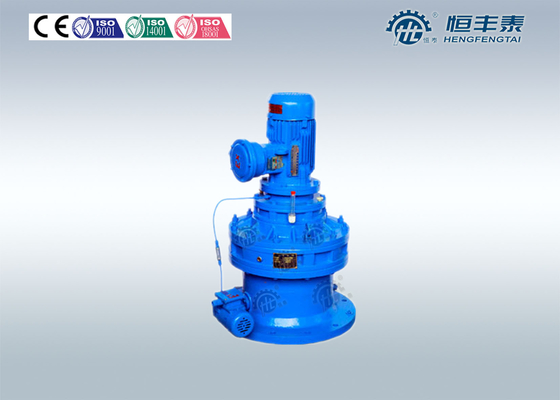

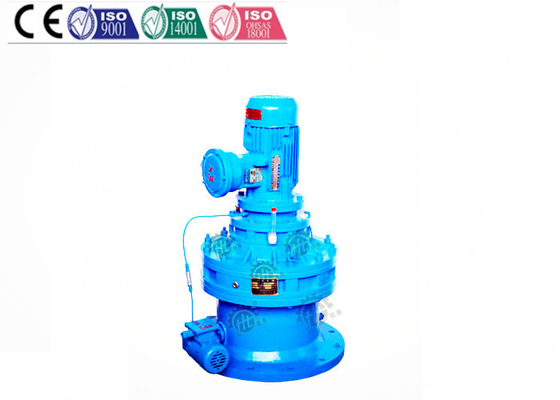

Shaft Mounted Cycloidal Inline Motor Gear Reducer For Turbine Fan / Concrete Mixer





Quick Details:



1) Structure: base-mounted, flange-mounted



2) Chief part material: bearing steel



3) Simultaneous multi teeth operation, strong capability for resisting overloading, reliable in operation and



   long life.





·                                 Output Torque: 70Nm-20000 N.m



·                                 Rated Power: 0.37-55KW



·                                 Input Speed: 960-1500 rpm



·                                 Output Speed: 11-167RPM



·                                 Brand Name: HENGTAI



·                                 Ratio: 9-87



·                                 Material for box: cast iron



·                                 Output shaft:Solid output shaft



.                                 Output shaft diameter: 25-130MM









Descriptions:





HXL series cycloidal gear reducer is in accordance with planetary transmission principle and cycloid pin



gear engagement to achieve a mechanical gear.HXL series cycloidal gear reducer can reach the 96%



transmission  efficiency in condition of stand - alone.







Other name:





 Cyclo gearmotor HXL series cycloidal gear reducer



       cyclo gearbox



       inline gearmotor





Warranty:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





Ceramic, drinking, food, light industry, textile, mineral and metallurgical, lifting and transportation, printing



and dyeing industry etc.





Specifications:



Model

Ratio

Power

Max torque

HXL1

9-87

0.25-0.37kw

70N.m

HXL2

9-87

0.25-1.5kw

150N.m

HXL3

9-87

0.55-2.2kw

250N.m

HXL4

9-87

0.75-4kw

500N.m

HXL5

9-87

1.5-11kw

1000N.m

HXL6

9-87

2.2-15kw

2000N.m

HXL7

11-87

3-15kw

2700N.m

HXL8

11-87

4-18.5kw

4500N.m

HXL9

11-87

4-22kw

9000N.m

HXL10

11-87

11-45kw

12000N.m

HXL11

11-87

15-55kw

20000N.m





Main models of this kind of MB series cyclo gearbox :

MBW , MBWY

MBL(F),MBL(F)Y

MBW-C

MBL(F)-C,MBL(F)Y-C

MBWY-CT

MB-WJ and MBY-XW





Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.







3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
