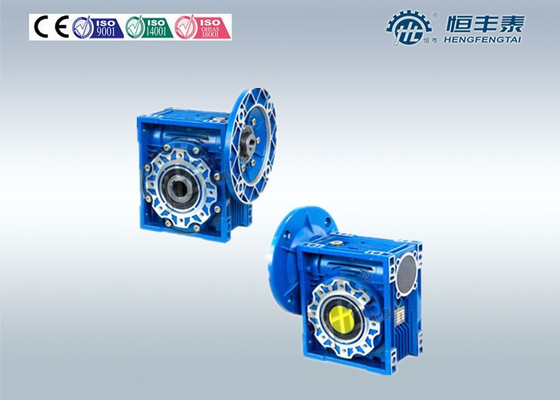

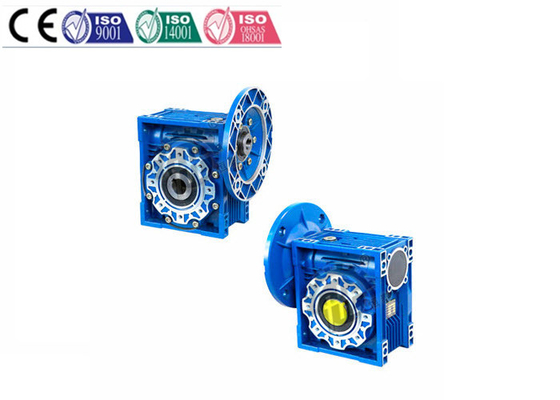

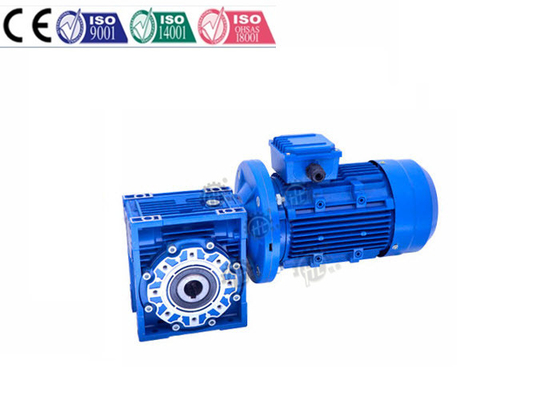

Motor Worm Flange Mounted Gearbox , Worm Gear Speed Reducer Low Noise

  • Motor Worm Flange Mounted Gearbox , Worm Gear Speed Reducer Low Noise
  • Motor Worm Flange Mounted Gearbox , Worm Gear Speed Reducer Low Noise
  • Motor Worm Flange Mounted Gearbox , Worm Gear Speed Reducer Low Noise
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number NMRV series
Minimum Order Quantity 5 PIECES
Price USD 35-562
Packaging Details 1pcs packed in one small box, 7-8 small boxes packed in one wooden crate
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 2000 pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

worm gear motor

,

worm gear boxes
Leave a Message
Product Description

Motor Worm Flange Mounted Gearbox , Worm Gear Speed Reducer Low Noise





Quick Details:



Your benefits:



Number Your benefits
1 High reliability
2 Runs steadily with low noise
3 Saves space for mounting
4 Light weight
5 Compact
6 Small size
7 High efficiency

Input power



0.06kW-22kW

Output torque

4-2320N.m

 Speed ratio

(5-100)  5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100



1.  Adapt for IEC, NEMA



2.  High quality aluminum alloy, elegant appearance, efficient heat radiation, high carrying ability



3.  Combination of two single-

     step worm gear speed reducers, meeting  the requirements of super speed ratio.




4.  Installed in multiple surfaces, hollow output shaft, various input and output types, conjoins with other

       transmission machinery easily



5.  By motor direct connection and shaft input, shaft and hollow shaft output


      form, by feet, shaft installation and flange mounting forms.





Descriptions:



Type:

NMRV Worm Gear Speed Reducer

Model:

NMRV025-150

Ratio:

1:7.5,10,15,20,25,30,40,50,60,80,100

Color:

Blue/Silver Or On Customer Request

Material:

Housing-Casting iron-HT200 -250#/ Aluminum

Worm Gear- alloy

Worm-20CrMnTi with carburizing and quenching, surface hardness is 58-62HRC

Shaft-chromium steel-45#

Bearing:

Chinese famous brand bearings

Seal

Chinese famous brand seals

Packing:

Carton and Wooden Case

Input Power:

0.55KW,0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW

Usages:

Industrial Machine: Food , Ceramics, Chemical, Packing, Dyeing,
Woodworking, Glass etc

IEC Flange:

56B5,63B5,71B5,80B5,90B5,100B5,112B5,132B5,160B5,180B5,200B5

Lubricant:

Synthetic & Mineral







Specification:





Number Model
1 NMRV025
2 NMRV030
3 NMRV040
4 NMRV050
5 NMRV060
6 NMRV075
7 NMRV090
8 NMRV110
9 NMRV130
10 NMRV150
11 NMRV180







Warranty:



HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:



Industrial Machine

Food

Ceramics

Chemical

Packing

Dyeing

Woodworking

Glass etc









Competitive Advantage:



      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.



2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.



3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
