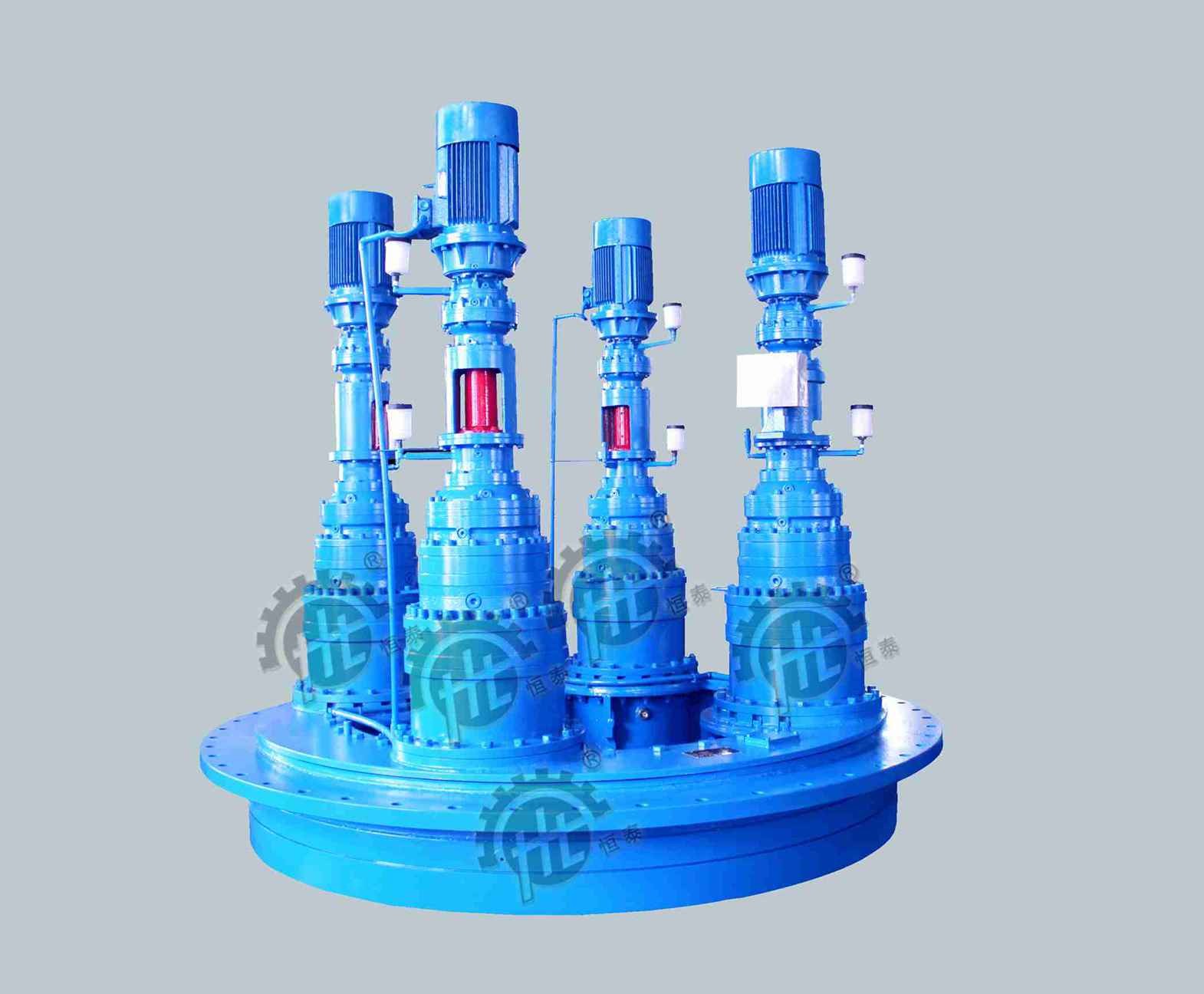

High Torque Solid Liquid Separator CQH Series Center Drive Thickener Gearbox

High Torque Solid Liquid Separator CQH Series Center Drive Thickener Gearbox

Quick Detail:

• With multi drive unit include inner gearbox and multi gear drive.
• Each gear drive unit include 1 planetary gear reducer.
• With PLC modular can realize multi automation controll mode.
• 1-4 drive unit can configuration freely.
• 2 series with 8 models.
• Meet continue rating torque 159 Kn.m to 1780 KN.m torque.
• Apply in center column big diameter high rate efficiency thickener.
• Output rpm 0.1-0.4
• Input power 3-15 Kw

Other name:

CQH series center drive concentrate thickener

CQH series rotating rake arm settle solid

CQH series wastewater treatment thickener drive

Applications:

§ Contact Clarifiers for Raw Water

§ Concentrate and Tailings Thickeners

§ Paste thickeners

§ CCD Circuits

§ DAF units for Oily Wastes

§ Circular Oil/Water Separators

§ General Duty Clarifiers and Thickeners

Benefits:

§ Eliminates chain and belt transmissions.

§ Makes accurate torque measurement, sounds alarm and cuts power per operator pre-sets.

§ Improves safety and reduces maintenance requirements.

§ Prevents overhung loads.

§ Increases load distribution and reduces gear wear.

§ Optimal corrosion resistance.

§ Stronger and more rigid than cast iron with better fatigue strength and ductility.

§ Ease of lubrication and ease of condensate removal for maintenance.

§ High power transfer efficiency of 95% and greater.

§ Handles high mechanism shock loads with no heat build-up or associated wear.
