Reduction Electric Motor Gearbox Cycloidal Speed Reducer 225-360 degree
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | TUV,CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HDR series |
| Minimum Order Quantity | 1pcs |
| Price | US $ 3000 - 90000 / Piece |
| Packaging Details | STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 40-60 days |
| Payment Terms | T/T or LC or WESTERN UNION |
| Supply Ability | 50 PCS PER MONTH |
Product Details
| Model | Hdr30,Hdr50,Hdr100,Hdr190,Hdr270,Hdr470,Hdr600 | Application | Tower,disc,parabolic Solar Power Tracking Drive |
|---|---|---|---|
| Ratio | 8437.4-55372.5 | Torque | 3150-62500Nm |
| Rotate Range | 225-360 Degree | Use Life | 25 Years |
| High Light | Electric Gear Motors,planetary geared motors |
||
Product Description

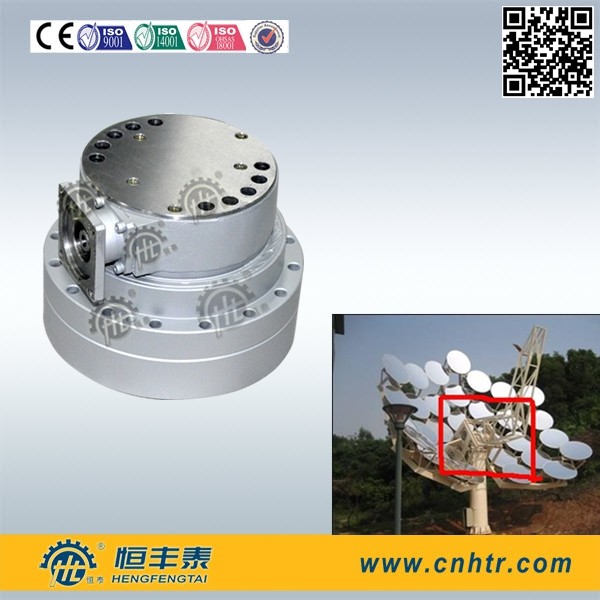

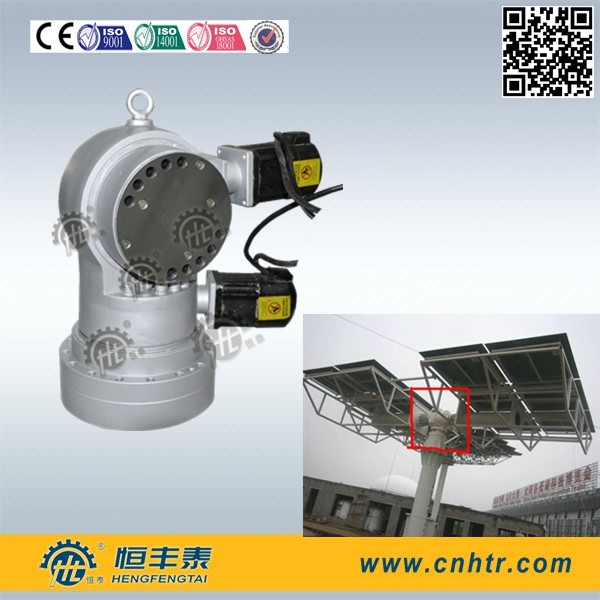

Thermal Solar Tracker Slewing Drive Hdr270 Backlash 0.015 Electric Motor Gearbox
Quick Details:
|
Model |
Ratio range |
Torque range |
Weight (Kg) |
Apply for mirrors |
|
HDR30 |
8438.4-11088 |
3150-5500 |
35 |
>12㎡ |
|
HDR50 |
8438.4-11088 |
4950-8500 |
58 |
15-20㎡ |
|
HDR100 |
40200-40367.5 |
10190-22500 |
170 |
20-40㎡ |
|
HDR190 |
40200-40367.5 |
18670-44000 |
340 |
40-65㎡ |
|
HDR270 |
50250-50417.5 |
27500-70000 |
420 |
65-100㎡ |
|
HDR400 |
50250-50417.5 |
39900-90000 |
625 |
90-120㎡ |
|
HDR600 |
55200-55372.5 |
62500-110000 |
800 |
120-144㎡ |
Description:
A new generation solar tracker drive device developed by HENGFENGTAI Reducer Mfg Company
With independent intellectual property rights
Output backlash 0.015°
The core transmit parts all are surface hardened and grinded processing precisely.
HDR series output use precision planetary device which realize multi teeth contact mesh output.
In the same outline dimensions the transmission capacity is 2-4 times bigger than double lead,second formed worm drive.
|
Model/Data |
Ratio |
Max dynamic torque(N.m) |
Max static torque(N.m) |
Tilting moment toque |
Torsional Stifness (N.m/rad) |
Backlash (degree) |
|
|
HDR30 |
Horizontal |
11088 |
3150 |
4500 |
5500 |
3.53*10e6 |
0.015 |
|
Elevation |
8348.4 |
||||||
|
HDR50 |
Horizontal |
11088 |
4950 |
7030 |
8500 |
5.41*10e6 |
0.015 |
|
Elevation |
8348.4 |
||||||
|
HDR100
|
Horizontal |
40200 |
10190 |
15500 |
22500 |
6.84*10e6 |
0.015 |
|
Elevation |
40367.5 |
||||||
|
HDR190 |
Horizontal |
40200 |
18670 |
28290 |
44000 |
11.27*10e6 |
0.015 |
|
Elevation |
40367.5 |
||||||
|
HDR270
|
Horizontal |
50250 |
27500 |
45800 |
70000 |
23.69*10e6 |
0.015 |
|
Elevation |
50417.5 |
||||||
|
HDR400 |
Horizontal |
50250 |
39900 |
66500 |
90000 |
32.07*10e6 |
0.015 |
|
Elevation |
50417.5 |
||||||
|
HDR600 |
Horizontal |
55200 |
62500 |
104000 |
110000 |
47.7*10e6 |
0.015 |
|
Elevation |
55372.5 |
||||||
About Hengtai reducer,We control every tiny aspect to maintain high quality:
