Low Backlash Cycloidal Speed Reducer Radar Or Antenna Tracking System
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | Hengtai Reducer |
| Certification | CE, ISO, SGS, TUV |
| Model Number | HDR - 30, 50, 100, 190, 270, 450, 600 |
| Minimum Order Quantity | 1 PCS |
| Price | USD800.00 |
| Packaging Details | standard export wooden case package. |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 1000 PCS/month |
Product Details
| Rotate | Horizontal; Vertical | Power | 0.1-0.75 KW |
|---|---|---|---|
| Ratio | 2000-50000 | Torque | 3150-62500 N.m |
| Weight | 35-800 Kg | Application | Radar, Antenna, Solar Sun Tracking··· |
| High Light | inline planetary gearbox,electric motor gear reducer |
||
Product Description

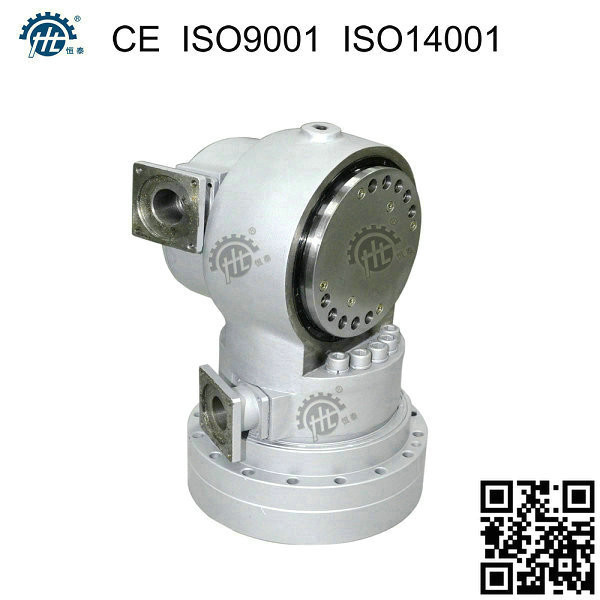

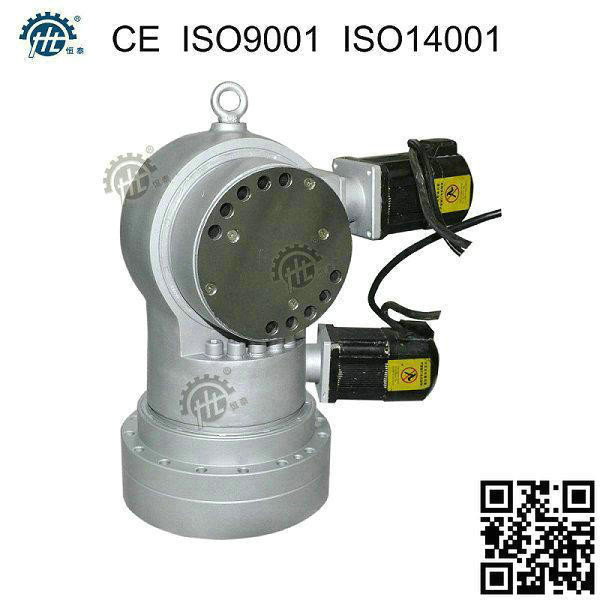

Radar or antenna tracking system used low backlash high precision dual axis gearbox:
High-precision drive, low backlash, the inaccuracy is limited to less than 3 arc centimeter, no gap for the output shaft.
HDR dual drive transmission device is composed by the horizontal, pitching drive mechanism parts, which adopts the drive principle of a high-precision gears and precision rolling gears, to accomplish full 360 tracking and accurate location.
Mainly characters:
1). Application: solar sunshine tracking, antenna tracking, radar tracking system and controller
2). High precision, output backlash below 0.045° .
3). Big ratio, 20000-50000
4). Power 0.01-0.75KW
5). Horizonal and vertical dual axis output
Model details:
|
Model |
Ratio |
Max torque(N.m) |
|
|
|
Horizontal |
Vertical |
|||
|
HDR30 |
11088 |
8348.4 |
3150 |
|
|
HDR50 |
11088 |
8348.4 |
4950 |
|
|
HDR100 |
40200 |
40367.5 |
10190 |
|
|
HDR190 |
40200 |
40367.5 |
18670 |
|
|
HDR270 |
50250 |
50417.5 |
27500 |
|
|
HDR400 |
50250 |
50417.5 |
39900 |
|
|
HDR600 |
55200 |
55372.5 |
62500 |
|
