HXG50-50D Reduction 15/1 Speed Reducer for Conveyor Belt Application With Shaft Mounted

  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name HENGTAI
Certification CE,ISO,TUV,SGS,etc
Model Number HXG50-50D
Minimum Order Quantity 50PCS
Price USD $150-1000/PCS
Packaging Details Standard export wooden case for HXG
Delivery Time 7-30 DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 1000PCS/MONTH
Product Details
Precision Grade 6 Ratio 15/1
Hot Market Mid-East Hardness 58-62HRC
Accessories Back Stop, Tie Rod Dia. Of Bore 35-125mm
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Characteristic:



1. Bearings for HXG: High quality chinese brand or NSK brand

2. Oil Seal: NAK brand (VITON, high temperature resistance, oil resistance)

3. Gear Precision: DIN6 (Ground by the Machine imported from Swizerland)

4. Gear Hardness: HRC58-62

5. Use low-carbon alloyed steel cementation processing completely.

6. Small volume, Big torque, Compact structure.



Type

Ratio

Model

Standard bore (mm)

Rated power(KW)

Rated torque(N.m)

Mining conveyor belt gearbox HXG series

5;
7;
10;
12.5;
15;
20;
25;
31

HXG 30

30

3

180

HXG 35

35

5.5

420

HXG  40

40; 45

15

950

HXG 45

45; 50; 55

22.5

1400

HXG  50

50; 55; 60

37

2300

HXG  60

60; 65; 70

55

3600

HXG  70

70; 85;

78

5100

HXG 80

80; 100

110

7000

HXG 100

100; 120

160

11000

HXG 125

125; 135

200

17000



Maintenance:

After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Please do not mix the mineral oil and synthetic oil.
Please check the oil level in regular time.



Company Information:

Company name: Zhejiang Hengfengtai Reducer MFG.CO.,Ltd

Founding year: 1991

Quantity of employees: 500 employees

Factory square: 50000 square meters


Main products: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments
Qualifications of quatity: CE, ISO9001

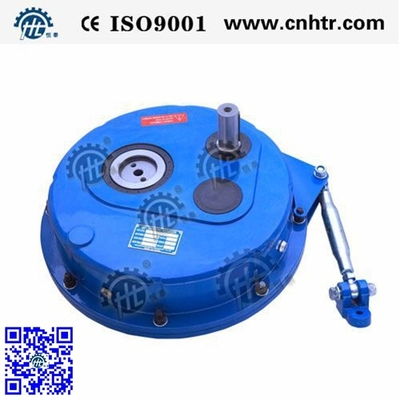

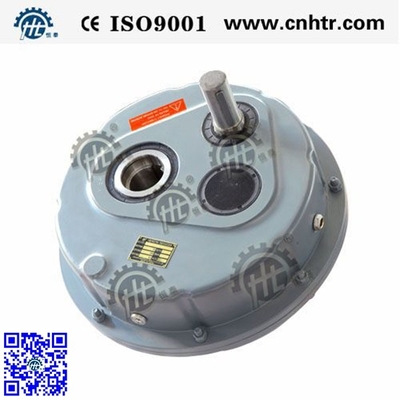

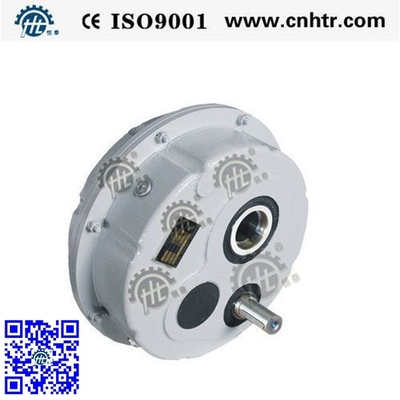

Product Show:

HXG50-50D Reduction 15/1 Speed Reducer for Conveyor Belt Application With Shaft Mounted 0


Mining application:



HXG50-50D Reduction 15/1 Speed Reducer for Conveyor Belt Application With Shaft Mounted 1
