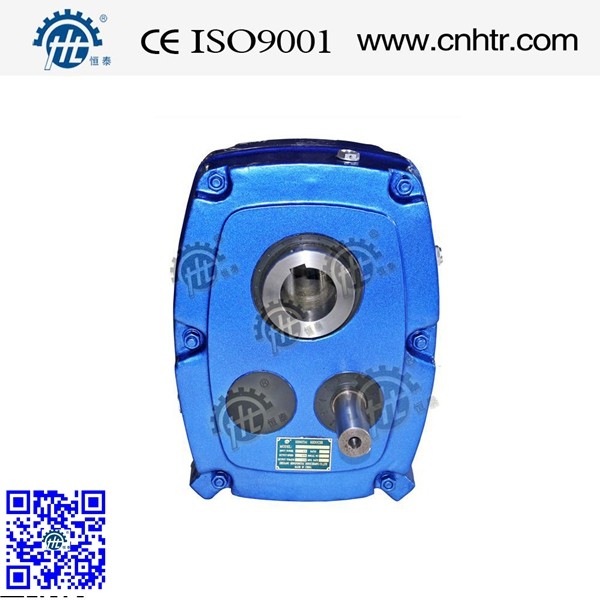

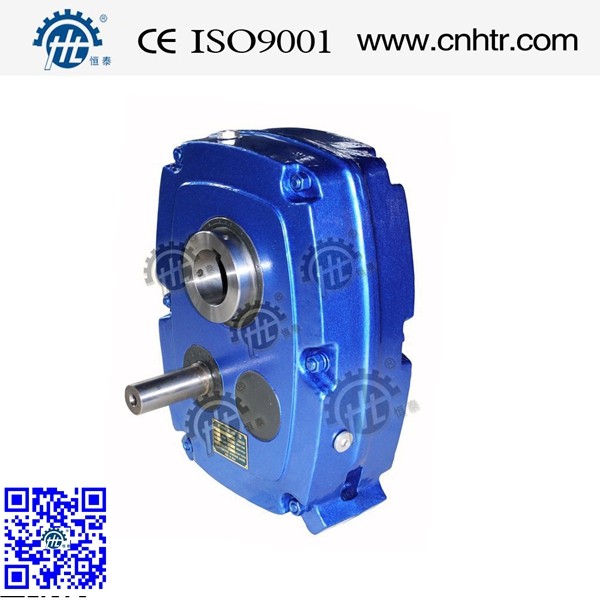

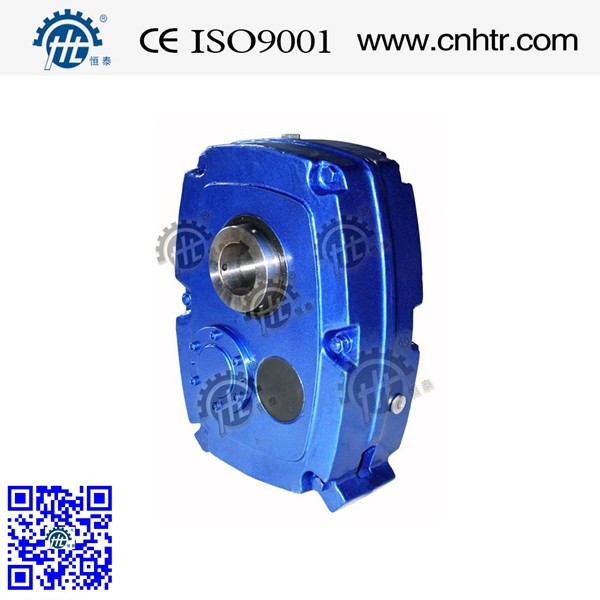

Helical Anti Back Stop Gear Shaft Mounted Gearbox For Power Transmission Application

  • Helical Anti Back Stop Gear Shaft Mounted Gearbox For Power Transmission Application
  • Helical Anti Back Stop Gear Shaft Mounted Gearbox For Power Transmission Application
  • Helical Anti Back Stop Gear Shaft Mounted Gearbox For Power Transmission Application
Certification CE,ISO, etc
Model Number HXGF30-100
Minimum Order Quantity 50 Pieces
Price USD $150
Packaging Details 8-12 pcs packed in one big pallet.
Delivery Time 7-30 Days
Payment Terms T/T; L/C, Western Union
Supply Ability 1000 Pieces Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color No. Blue RAL5010 Bore Size 30-120mm
Input Speed Up To 2000RPM Rated Power Up To 200KW
HS Code 8483409000 Input Form Solid Shaft Input
Highlight

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Description for Helical Anti Back Stop Gear Shaft Mounted Gearbox For Power Transmission Application:



The Hengtai Reducer offers a rugged design and a 50% increase in the power to weight ratio over the older version. The PowerPLUS is more compact for easier handling and features an increased range of bore sizes.

  • Compact, rugged design
  • Bore sizes ranging from 20mm to 190mm available
  • Metric and imperial reducing bushes available
  • Easy fit backstops available
  • Comprehensive output speeds available with a simple Fenner belt drive
  • ATEX certification available

The unique Taper Grip™ bush locking system allows Fenner SMSR's to be secured onto the driven shaft thus overcoming the difficulties that can be experienced with other methods of mounting - Particularly in corrosive environments.

  • Transmits 300% more torque and accommodates shaft tolerances to h11
  • Resistant to fretting corrosion
  • Allows easy removal of gear unit
  • Wide selection of metric and imperial bush sizes available

Ratio:5:1:



Model HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Output(RPM) 100-400 100-400 100-400 100-400 100-400 100-400 100-400 100-400
Power Rating(KW) 2.68-7.14 4.2-9.66 6.62-15.65 10.29-24.57 15.12-35.91 25.2-59.9 36.2-81.9 62.2-134.2
Permissible torque(Nm) 256 401 632 983 1444 2407 3457 5940



Ratio:13:1 and 20:1:



Model HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Output(RPM) 10-115 10-115 10-115 10-115 10-115 10-115 10-115 10-115
Power Rating(KW) 0.29-3.11 0.49-4.62 0.82-7.81 1.25-11.55 1.97-17.01 3.11-27.09 4.9-40.7 7.8-60.5
Permissible torque(Nm) 277 468 783 1194 1881 2970 4680 7449





Maintenance:



After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.

Please do not mix the mineral oil and synthetic oil.





Applications:



Screw conveyors, belt conveyor bulk handing machinery and process equipment for:Baggage handing.



Aggregate and mining.



Mixers and process equipment.



Grain and agriculture.
