Dual Drive Planetary Gear Box Solar Gearbox Csp Tower 2000Kg

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HDR series
Minimum Order Quantity 1pcs
Price US $ 3000 - 90000 / Piece
Packaging Details 1 PCS packed in ONE WOODEN CRATE
Delivery Time 40 days
Payment Terms T/T or LC
Supply Ability 100pcs/month
Product Details
Backlash 0.015 Degree Model HJR01-08
Torque 3000Nm Mirror Volume 30 Square Meters
Heliostat Weight 2000Kg Material Cast Iron
High Light

Low Backlash Planetary Gearbox

,

helical planetary gearbox
Leave a Message
Product Description

Dual Drive Planetary Gear Box Solar Gearbox Csp Tower 2000Kg




Quick Details

Minimum Order Quantity:

ONE PIECE

Price:

DEPENDS ON REQUIREMENTS

Packaging Details:

STRONG EXPORTING WOODEN CASE AND PALLETS

Delivery Time:

DEPENDS ON QUANTITY

Payment Terms:

T/T or LC

Supply Ability:

DEPENDS ON THE SPECIFIC MODEL


Gearing Arrangement: Dual drive transmission device

Ratio: up to 49295

Nominal output torque up to 40000Nm

Max output torque up to 100000Nm

Static load 120 KN

Dynamic Load 75KN

Place of Origin: Zhejiang, China (Mainland)

Brand Name: HENGTAI

Color: According to customer

Packing: Strong wooden cases for exporting


HDR high precision dual shafts drive device performance features



Multitooth meshing output, big output torque radius value, powerful carrying capacity with self-locking

capacity.


Break through the general rigidity mesh transmission only 1-2 pair teeth mesh limitations. Realized the

multitooth mesh together and drive output. Therefore it had high carrying capacity and anti-impact

overload capacity.

Inside with big diameter bearings construction increase the loading capacity of outside support. Increase

the torque stiffness and max allow torque. In the same outline dimensions the transmission capacity is

 2-4 times bigger than double lead, second formed worm drive.


High-precision transmission, large output stiffness, low retrace tolerance, output backlash error below

0.015°



 Performance

Model

Ratio

Rotate range
(o)

Horizontal allowable maximum dynamic torque
(N.m)

Horizontal allowable maximum static torque
(N.m)

Elevation allowable maximum dynamic torque
(N.m)

Elevation  allowable maximum static torque
(N.m)

Maximum torsional stiffness
(N.m/rad)

Backlash
(o)

HJR01

35000
~
50000

360

5578

9296

5132

8553

15.7×10e6

0.015

HJR02

35000
~
50000

360

5976

9960

5756

9593

18.4×10e6

0.015

HJR03

35000
~
50000

360

10160

16933

9865

16442

36.0×10e6

0.015

HJR04

35000
~
50000

360

15216

25360

14512

23587

38.0×10e6

0.015

HJR05

35000
~
50000

360

27430

45717

26381

43968

10.5×10e7

0.015

HJR06

35000
~
50000

360

36887

61479

35785

59642

14.4×10e7

0.015

HJR07

35000
~
50000

360

48285

80474

47665

79442

19.0×10e7

0.015

HJR08

35000
~
50000

360

62595

104325

61758

102930

33.3×10e7

0.015



Competitive Advantage:
Hengfengtai started the research and produce on Solar Thermal Plant Drive Device from 2008. We cooperated with Chinese Academy of Sciences electrician research institue, Huangming solar power, Huaneng Clean power academy, First flight energy saving solar thermal company, China Sciences Group Spring Scenery, Beijing Union Communicate heart thermal, Guangdong Five Star Solar Energy, One Japan company etc.
After yearly trial use,customer usually feedback the drive device had small output backlash, large loading capacity, high transmission efficiency.

Manufacture capacity

  • 350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
  • 2 manufacture plants with area more than 50000 square meters.
  • More than 300sets of advanced imported equipments: German CNC,  Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc


Quality Control System

  • ISO 9001-2000 Certificate
  • ISO 14001 Certificate
  • GB/T 28000 Certificate
  • CMM Inspection on each batch of gears
  • Gear Inspection Center
  • Material Inspection Lab
  • Trial Run Inspection
  • Leakage Inspection
  • and etc

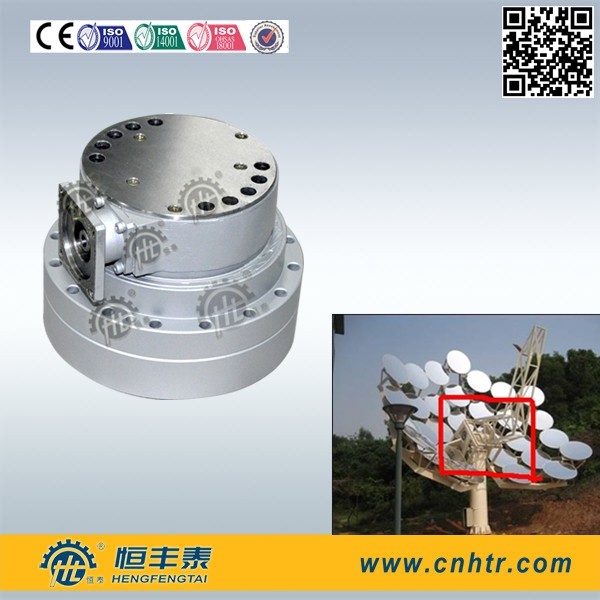

Dual Drive Planetary Gear Box Solar Gearbox Csp Tower 2000Kg 0

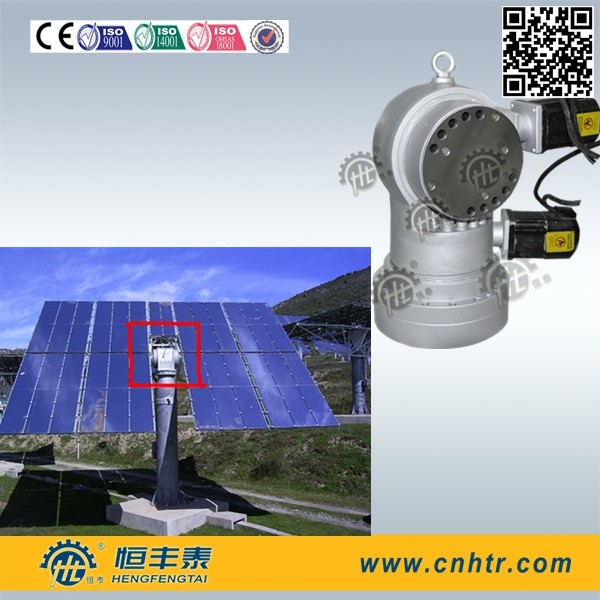

Dual Drive Planetary Gear Box Solar Gearbox Csp Tower 2000Kg 1
Dual Drive Planetary Gear Box Solar Gearbox Csp Tower 2000Kg 2
