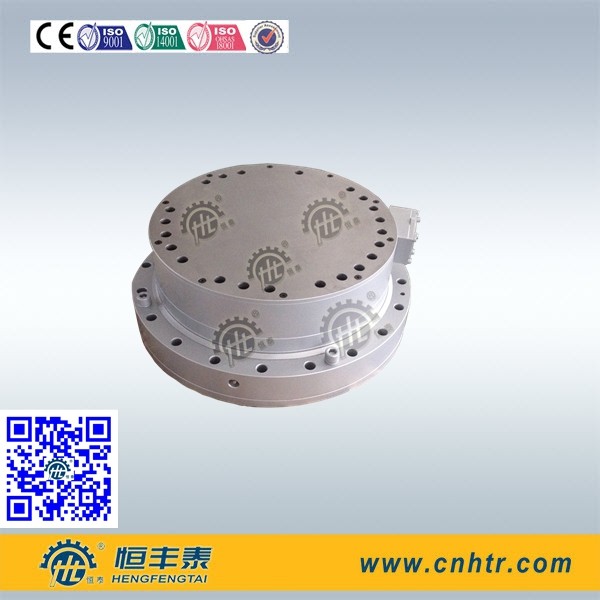

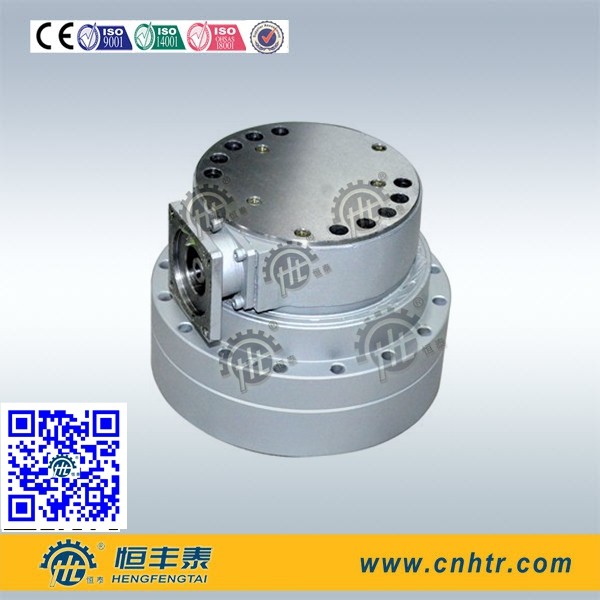

TUV Cycloidal Speed Reducer Single Axis Solar Tracking System Hesliostat
Product Details
| Rated Power | According To Request | Output Torque | Up To 62500Nm |
|---|---|---|---|
| Ratio | 8000-60000 | Output Type | Horizonal And Vertical |
| Model | HDR30-600 | Backlash | ＜0.015° |
| High Light | planetary reduction gearbox,electric motor gear reducer |
||
Product Description
About Single Axis Solar Tracking System Hesliostat Cycloidal Planetary Gear Reducer High Precision Transimission
Dual shafts drive device is new generation solar tracker drive device which developed by Hengtai Reducer Mfg Company.The HDR high precision dual shafts drive deveice is independent research and developed which had already declare domestic paten for invent-on 3 items, European Union and Amecica patent for 1 item.
Performance features:
a) Multitooth meshing output, big output torque radius value, powerful carrying capacity with self-locking capacity.
b) High-precision transimission, large output stifiness, low retrace tolerance, output backlash error below 0.015.
c) Compact structure, small volume, low weight, low cost.
d) Large transmission ration, high efficiency, long use life.
The Designation of Model:
Model and technical details:
|
Model |
Ratio |
Max dynamic torque(N.m) |
Max static torque(N.m) |
|
|
Horizontal |
Vertical |
|||
|
HDR30 |
11088 |
8348.4 |
3150 |
4500 |
|
HDR50 |
11088 |
8348.4 |
4950 |
7030 |
|
HDR100 |
40200 |
40367.5 |
10190 |
15500 |
|
HDR190 |
40200 |
40367.5 |
18670 |
28290 |
|
HDR270 |
50250 |
50417.5 |
27500 |
45800 |
|
HDR400 |
50250 |
50417.5 |
39900 |
66500 |
|
HDR600 |
55200 |
55372.5 |
62500 |
104000 |
