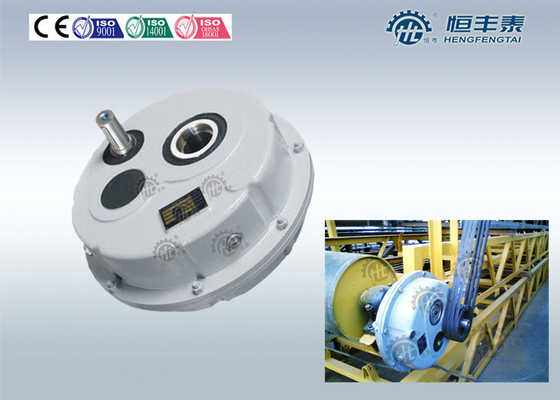

High Torque HXG60-60D Hollow Shaft Gear Reducer Industrial for head drum drive
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,TUV,SGS,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG60-60D |
| Minimum Order Quantity | 5 pcs |
| Price | US$ 500/PCS |
| Packaging Details | STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 30-35 days for shaft mounted speed reducer |
| Payment Terms | T/T or LC |
| Supply Ability | 2000 pcs/month |
Product Details
| Ratio | 15/1 | Dia Of Bore | 60MM |
|---|---|---|---|
| Input Shaft | 38MM | Mounting Position | Shaft Mounted |
| Housing Material | HT250 | Weight | 102KG |
| High Light | hollow shaft gear reducer,shaft mounted gearbox |
||
Product Description
Quick Details:

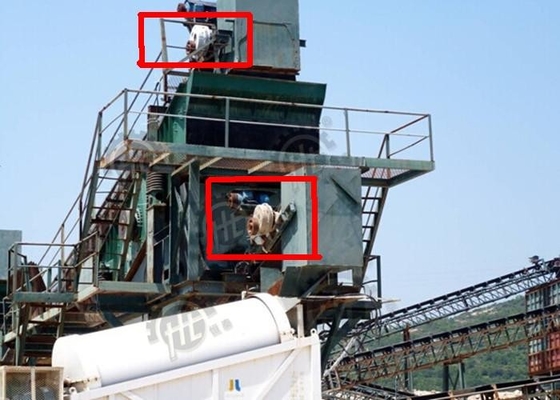

TUV certificated same as TA series HXG shaft mounted speed reducer used for head drum drive for
screen feeder
· Ratio: 15/1
· Rated Power: 0.92-226 KW
· Input Speed:500-1400 rpm
· Output Speed: 15.1-280RPM
· Output Torque: 180Nm-17000 N.m
· Output shaft diameter: 35-135MM
· Model Number: HXG30-HXG125
Description:
TUV certificated same as TA series HXG shaft mounted speed reducer used for head drum drive for
screen feeder
Products benefits:
1. High efficiency
2. Small volume
3. Simple structure and convenient to be installed and maintained
4. Strong capacity of being overloaded
5. Long service life
Specifications:
|
Ratio |
Input speed (rpm) |
Output speed (rpm) |
Model |
Rated output torque (Nm) |
Rated input power (Kw) |
Overhung loads (N) |
|
15/1 |
1400 |
93 |
HXG35-35D |
350 |
3.6 |
500 |
|
HXG40-40D HXG40-45D |
750 |
7.7 |
850 |
|||
|
HXG45-45D HXG45-50D HXG45-55D |
1200 |
12.3 |
1150 |
|||
|
HXG50-50D HXG50-55D HXG50-60D |
1900 |
19.5 |
1700 |
|||
|
HXG60-60D HXG60-70D |
3200 |
33.0 |
2600 |
|||
|
HXG70-70D HXG70-85D |
4400 |
45.0 |
3400 |
|||
|
HXG80-80D HXG80-100D |
6100 |
63.0 |
4200 |
|||
|
HXG100-100D HXG100-125D |
9500 |
98.0 |
5000 |
|||
|
HXG125-125D HXG125-135D |
12500 |
128.0 |
5500 |
WARRANTY:
Quality warranty of TUV certificated same as TA series HXG shaft mounted speed reducer used for head
drum drive for screen feeder is 15 Monthsafter received the gearbox, during the period of time it is free of
cost to repair while it is broken undernormal usage according to theinstructure.
Applications:
TUV certificated same as TA series HXG shaft mounted speed reducer used for head drum drive for
screen feeder
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. There are more than 40 professional technical engineers and 49 items patents we have.
3. Relying on high quality products and perfect service, our products have been successfully applied by
more than 5000 customers.
Quality Control:
