Power Transmission Shaft Mounted Speed Reducer With 25Kw Motor

  • Power Transmission Shaft Mounted Speed Reducer With 25Kw Motor
  • Power Transmission Shaft Mounted Speed Reducer With 25Kw Motor
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF series
Minimum Order Quantity 5 PIECES
Price USD200-USD2500
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model BCDEFGHJ Output Shaft Diameter 75mm-85mm
Input Shaft Diameter 42mm
Highlight

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Power Transmission Shaft Mounted Speed Reducer With 25Kw Motor


Quick details


Torque:256 to 44.000 Nm
Ratios:5:1, 13:1, 20:1, 25:1
Power:0.18 kW to 280 kW
Sizes:103 to 608
Bore sizes:30 to 190 mm, optionally in inches
Mounting:Vertical, Horizontal, and Direct drive mounting configurations
Lubrication:Oil lubrication, synthetic lubricant optional
Housing:Grey cast iron


Product description
HSMR Model in 7 sizes B,C,D,E,F,G,H with nominal gear ratios of 5:1, 13:1 and 20:1
Extended 2 year warranty (optional).
Mounts direct onto the driven shaft:
No alignment problems.
No shaft couplings.
Flexible motor mounted in a convenient position.

Applications
Ideal for screw conveyors, conveyor belts, processing plant

  • Luggage conveying
  • Fibre, paper processing and forestry industry
  • Mineral working and mining
  • Mixing
  • Grain processing & agriculture



Specifications:

Power Rating (KW)

OUTPUT
RPM

B5

C5

D5

E5

F5

G5

H5

J5

50

1.35

2.50

3.85

5.55

8.30

12.10

19.30

31.50

100

2.69

4.60

6.30

11.20

16.50

25.20

39.00

61.00

150

3.60

5.70

8.90

14..00

20.00

35.00

50.40

78.00

200

4.30

6.70

10.50

16.60

24.00

40.00

60.00

93.00

250

4.60

7.70

12.00

18.00

27.50

46.00

68.00

107.0

OUTPUT
RPM

B13
B20

C13
C20

D13
D20

E13
E20

F13
F20

G13
G20

H13
H20

J13
J20

10

0.29

0.50

0.80

1.30

1.90

3.30

4.70

7.45

20

0.60

1.10

1.70

2.50

4.10

7.00

10.00

15.80

30

0.80

1.70

2.60

4.20

6.20

10.50

15.00

24.00

40

1.15

2.20

3.50

5.50

8.10

14.00

20.00

31.00

50

1.40

2.50

4.00

6.30

9.40

16.00

23.00

36.00

60

1.70

3.00

4.70

7.40

11.10

19.00

27.00

42.5

70

1.90

3.30

5.20

8.25

12.10

21.00

30.00

46.00

80

2.20

3.90

6.15

9.65

14.20

24.50

35.00

54.00

90

2.40

4.40

6.80

10.70

15.70

27.00

39.00

60.00

100

2.70

4.60

7.20

11.30

16.60

28.50

41.00

63.50

TORQUE
AT 10RPM
 in NM

275

510

810

1270

1865

3230

4650

7100

TORQUE
AT 70 RPM
in NM

260

420

740

1120

1790

2950

4550

6600

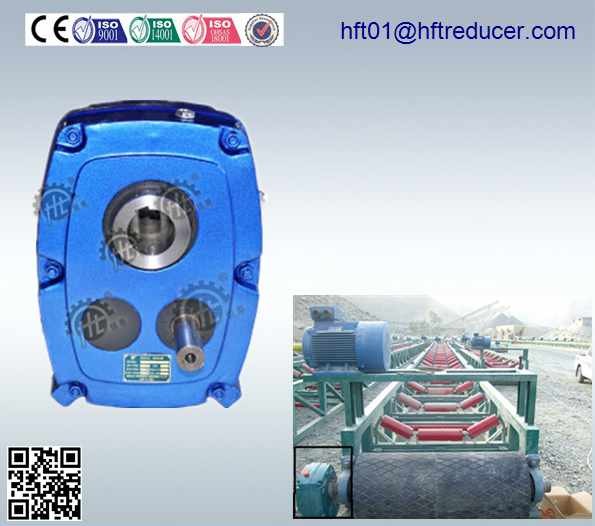

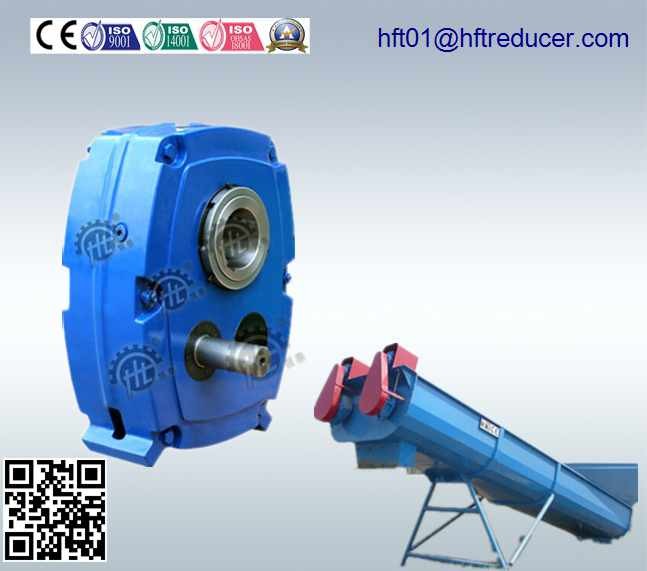

The way of mounting:
