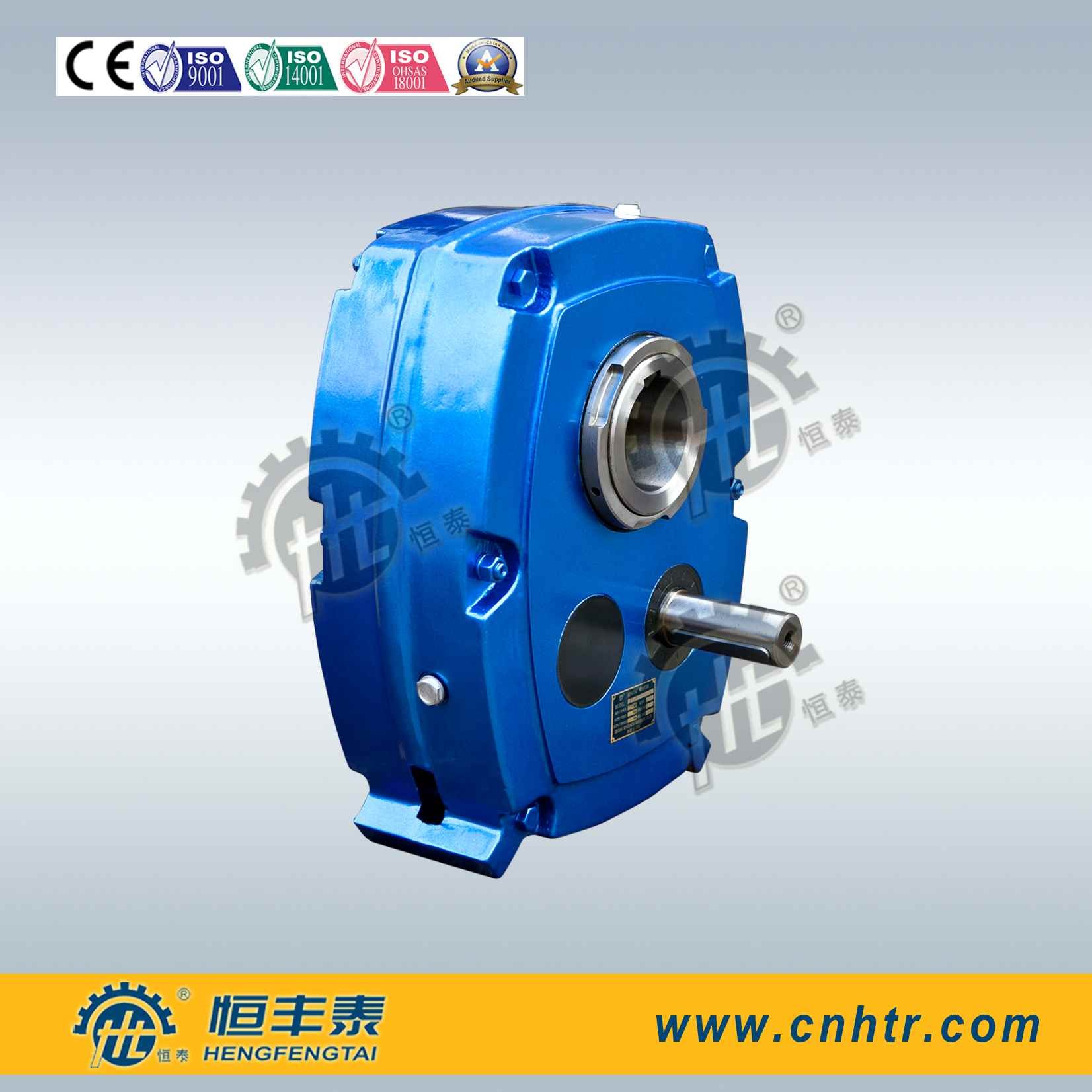

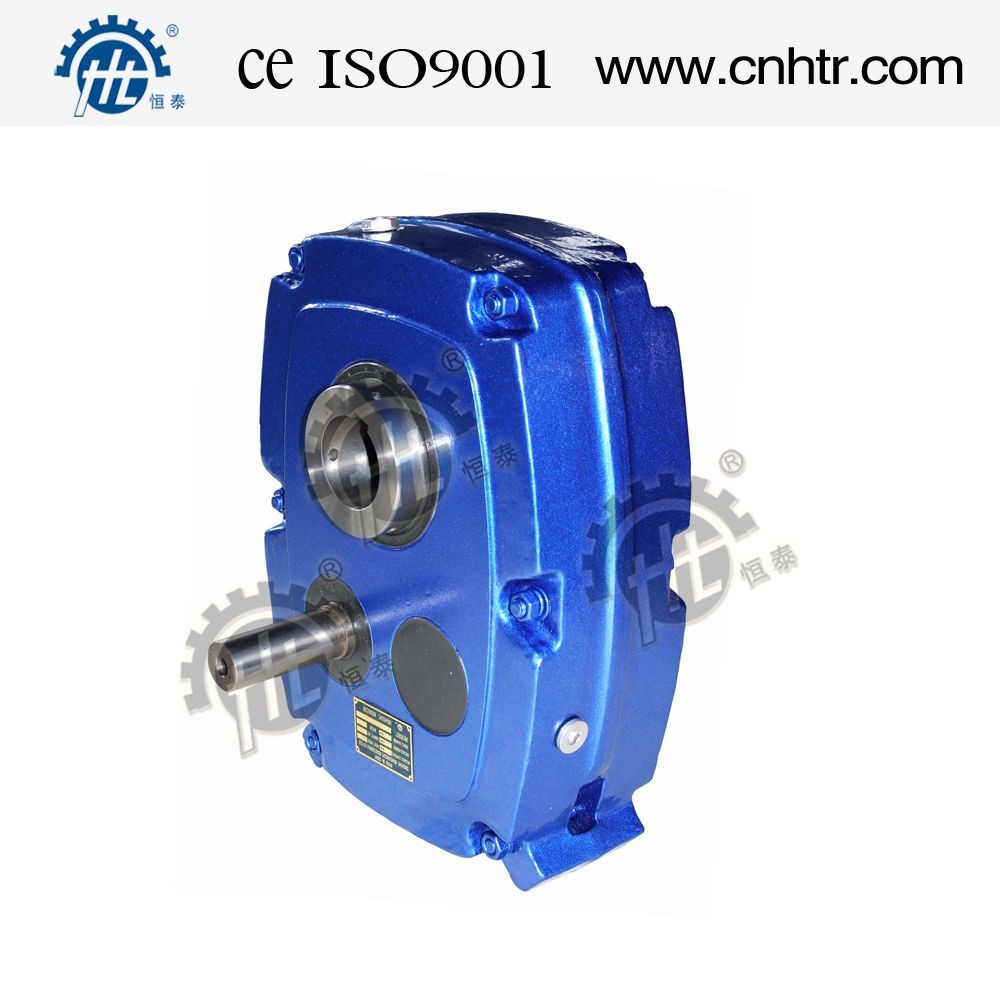

Low Backlash Shaft Mounted Speed Reducer Smsr Gearbox Tie Rod 750mm Ratio
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | 5pcs |
| Price | USD180-3500 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000pcs/month |
Product Details
| Features | Low Backlash | Model | Smsr |
|---|---|---|---|
| Torque Arm | 600-750mm | Export Country | Jordan |
| Colar | Ral5010 | Name | Shaft Mounted Speed Reducer |
| High Light | hollow shaft gear reducer,shaft mounted gearbox |
||
Product Description
Low Backlash Shaft Mounted Speed Reducer Smsr Gearbox Tie Rod 750mm Ratio
Descriptions:
- Sizes: The “HXGF” Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter “B” To “J”. (B- C – D – E – F – G - H -J)
- Ratios: These 8 Sizes May Have Nominal Ratios
- 05:1, 13:1, 20:1.
Quick details
| Torque: | 256 to 44.000 Nm |
| Ratios: | 5:1, 13:1, 20:1, 25:1 |
| Power: | 0.18 kW to 280 kW |
| Sizes: | 103 to 608 |
| Bore sizes: | 30 to 190 mm, optionally in inches |
| Mounting: | Vertical, Horizontal, and Direct drive mounting configurations |
| Lubrication: | Oil lubrication, synthetic lubricant optional |
| Housing: | Grey cast iron |
Product description
Features:
Quick & easy installation and adjustment of gearbox. (Elimination of foundations)
- Various ranges of output RPM and power requirements with durability.
- Low power consumption and provide high range of torque.
- Flexible motor mounted in a convenient position.
- High efficiency and low maintenance.
Applications
Ideal for screw conveyors, conveyor belts, processing plant
- Luggage conveying
- Fibre, paper processing and forestry industry
- Mineral working and mining
- Mixing
- Grain processing & agriculture
Specifications:
|
Dimension(mm) |
HXGF Size |
|||||||
|
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
|
|
Standard size of shaft |
30 |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
|
Alternative size of shaft |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
120 |
|
Input shaft keyway |
6x3.5x50 |
6x3.5x59 |
8x4x63 |
8x4x70 |
10x5x70 |
12x5x90 |
14x5.5x100 |
16x6x100 |
Permitted Torque:
|
Model(single/double) |
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
||||||||
|
Nm(100rpm) |
256 |
277 |
401 |
468 |
632 |
783 |
983 |
1194 |
1444 |
1881 |
2407 |
2970 |
3457 |
4380 |
5940 |
7449 |
|
Model Number
|
Input shaft Diameter |
Output shaft hollow bore diameters:
|
Output torque range |
Torque arm length |
Input Speed |
Reduction Ratio:
|
|
B |
19mm |
30mm |
277Nm |
220mm |
1400rpm 900rpm 500rpm |
5:1 13:1 20:1 |
|
C |
22mm |
40mm |
468Nm |
240mm |
||
|
D |
25mm |
50mm |
783Nm |
260mm |
||
|
E |
28mm |
55mm |
1194Nm |
280mm |
||
|
F |
32mm |
75mm |
1881Nm |
300mm |
||
|
G |
42mm |
85mm |
2970Nm |
320mm |
||
|
H |
48mm |
100mm |
4680Nm |
380mm |
||
|
J |
55mm |
125mm |
7449Nm |
520mm |
