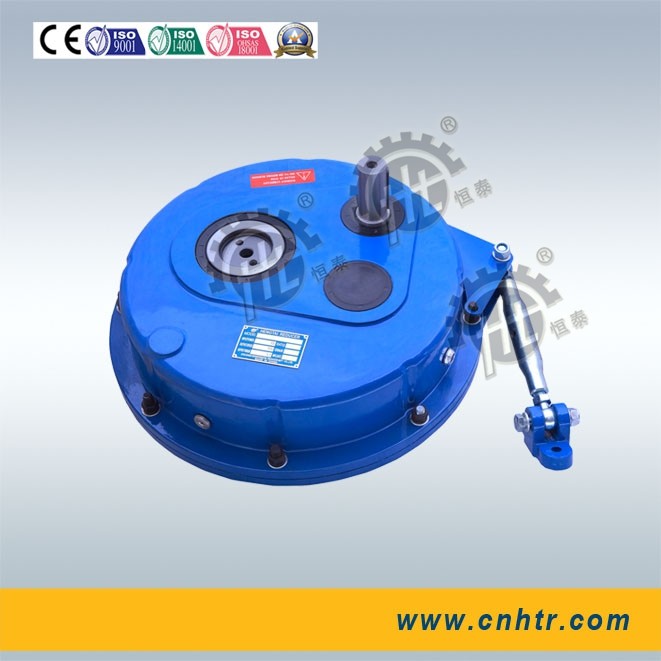

TA50 Planetary Shaft Mounted Speed Reducer Gearbox With Torque Arm Tie Rod

  • TA50 Planetary Shaft Mounted Speed Reducer Gearbox With Torque Arm Tie Rod
  • TA50 Planetary Shaft Mounted Speed Reducer Gearbox With Torque Arm Tie Rod
Certification CE,TUV,SGS
Model Number TA50
Minimum Order Quantity FIVE PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details Wooden Case, Standard Export Package
Delivery Time 30days
Payment Terms T/T or LC
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model TA50-50D Spare Parts Torque Arm
Backstop With Or Without Ratio 15:1 25:1
Accessories Backstop, Torque Arm Applications Mining Plant
Highlight

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Quick Details:





Model Number



HXG30-HXG125



Output shaft diameter



35-135MM



Ratio



 5-31



Input Speed



500-1400 RPM



Output Speed



15.1-280RPM



Rated Power



0.92-226 KW



Output Torque



180Nm-17000 N.m



Other Details:



·                                 Gearing Arrangement: Helical



·                                 Place of Origin: Zhejiang, China (Mainland)·



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc





Specifications:


Model HXG30 HXG35 HXG40 HXG45 HXG50
Permitted Torque (Nm) 180 420 950 1400 2300
Model HXG60 HXG70 HXG80 HXG100 HXG125
Permitted Torque (Nm) 360 5100 7000 11000 17000



Applications



Ideal for screw conveyors, conveyor belts, processing plant

  • Luggage conveying
  • Fibre, paper processing and forestry industry
  • Mineral working and mining
  • Mixing
  • Grain processing & agriculture

Ratio

Input Speed (rpm)

Output Speed

(rpm)

Model

Rated output torque(Nm)

Rated input power(Kw)

Overhung loads

(N)

15/1

1400

93

HXG35-35D

350

3.6

500

HXG40-40D

HXG40-45D

750

7.7

850

HXG45-45D

HXG45-50D

HXG45-55D

1200

12.3

1150

HXG50-50D

HXG50-55D

HXG50-60D

1900

19.5

1700

HXG60-60D

HXG60-70D

3200

33.0

2600

HXG70-70D

HXG70-85D

4400

45.0

3400

HXG80-80D

HXG80-100D

6100

63.0

4200

HXG100-100D

HXG100-125D

9500

98.0

5000

HXG125-125D

HXG125-135D

12500

128.0

5500



TA50 Planetary Shaft Mounted Speed Reducer Gearbox With Torque Arm Tie Rod 0
