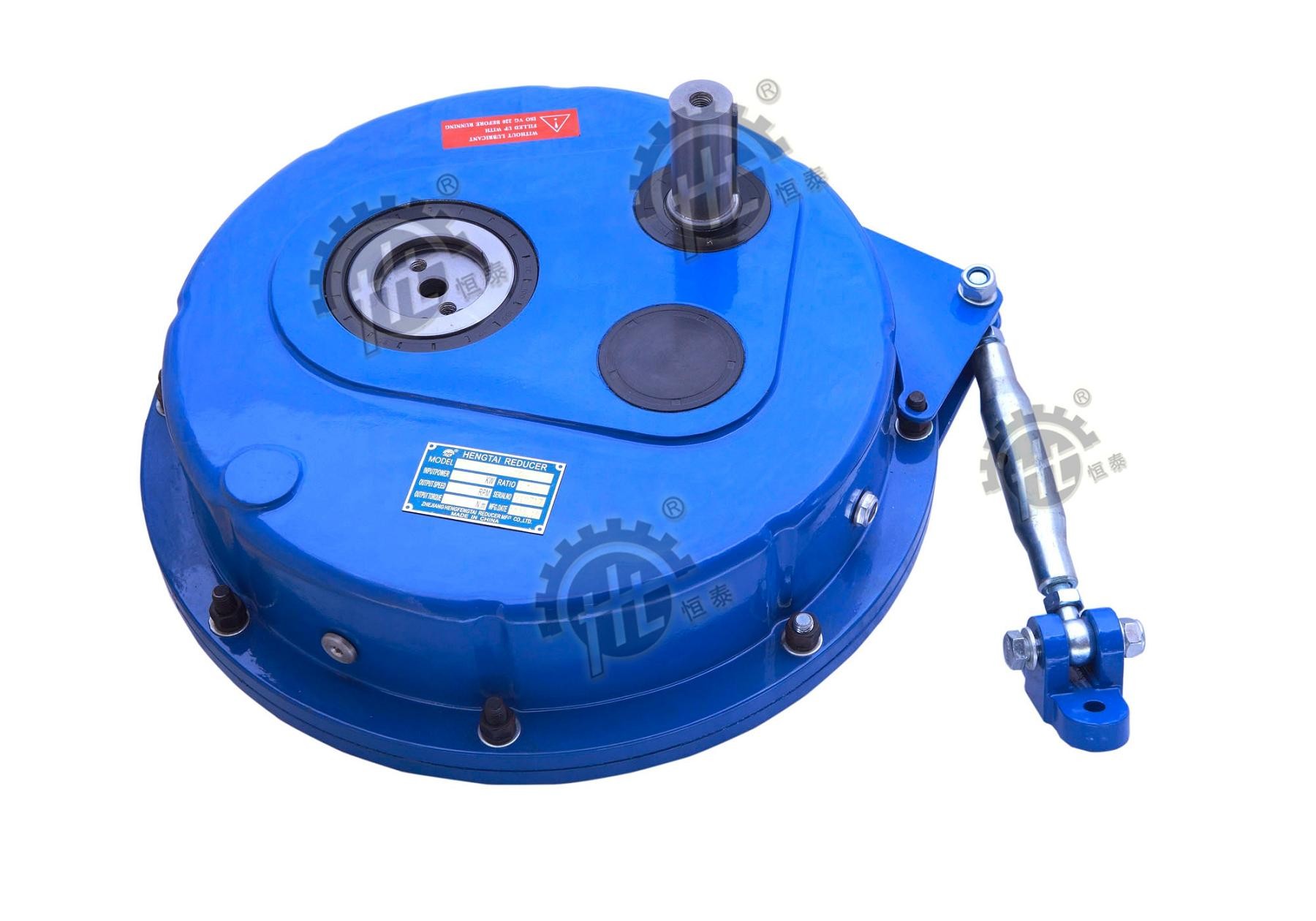

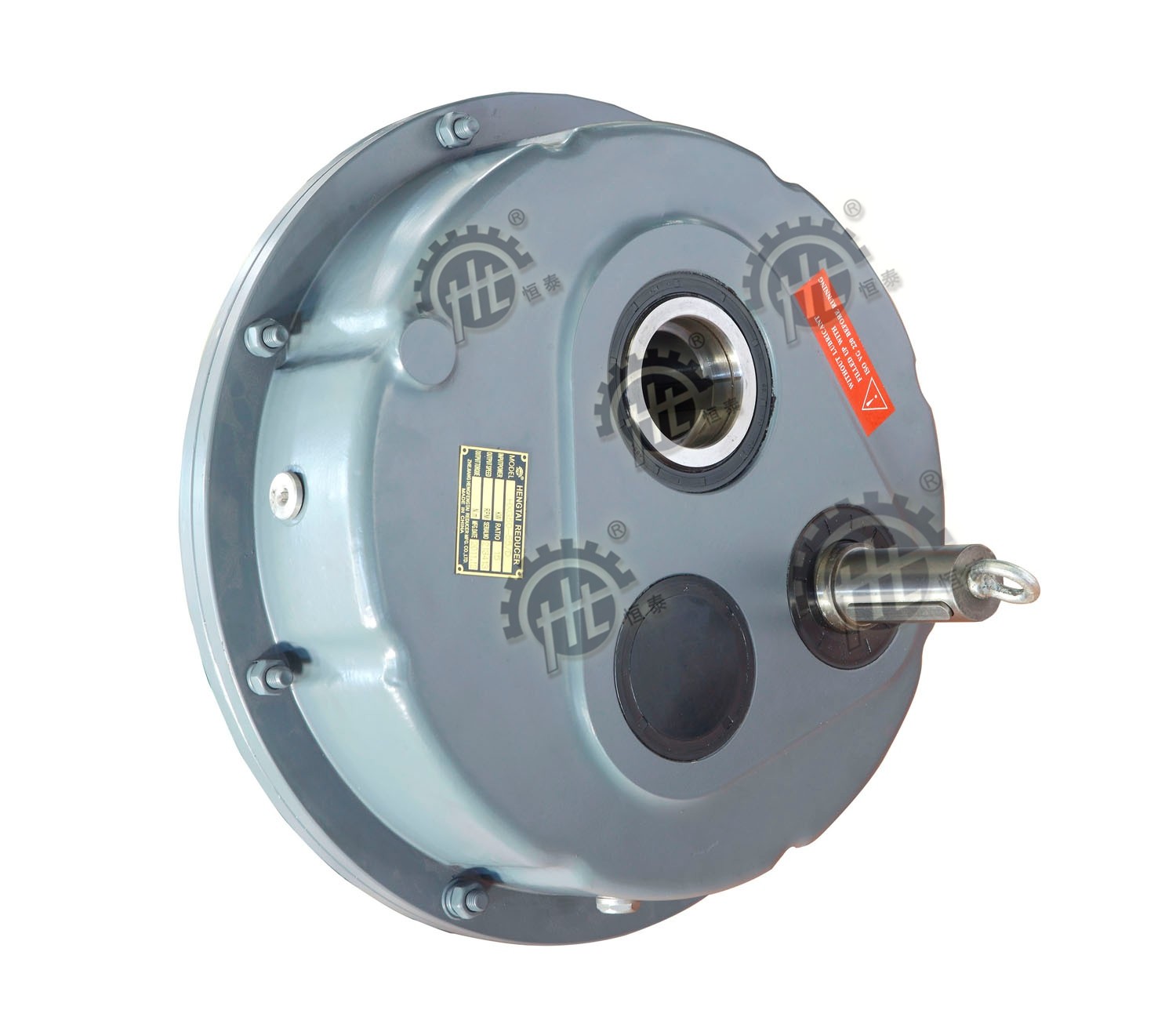

TA/HXG Shaft Mounted Gear Reduction Box Speed Reducer With Anti Backlash

  • TA/HXG Shaft Mounted Gear Reduction Box Speed Reducer With Anti Backlash
  • TA/HXG Shaft Mounted Gear Reduction Box Speed Reducer With Anti Backlash
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number TA35-125
Minimum Order Quantity 10 Pieces
Price USD 100-1700
Packaging Details Wooden Case, Standard Export Package
Delivery Time 30 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ratio 15:1, 25:1 Color Ral5010, Ral7040
Export Market Mid East Bearings Brand NSK, HRB,LYC,ZWZ
Material HT250
Highlight

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Description:

The TA series - Shaft mounted reducer has long established itself in the industry until becoming a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors.
Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.



Technical data:



Torque Range (n1= 900 min-1)
150 Nm ... 16.000 Nm

Mechanical Rating (n1= 900 min-1)
1,1 kW ... 156 kW

Gear ratios
5,0 ... 31,5

Output
Keyed hollow shaft



 Specification:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Hxg35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Hxg40-40D



24mm

40mm



1350Nm

240mm

Hxg45-45D



28mm

45mm



2050Nm

260mm

Hxg50-50D



42mm

50mm



2100Nm

280mm

Hxg60-60D



48mm

60mm



3500Nm

300mm

Hxg70-70D



48mm

70mm



4900Nm

320mm

Hxf80-80D



55mm

80mm



6600Nm

380mm

Hxg100-100D



55mm

100mm



10500Nm

520mm

Hxg124-125D



60mm

125mm



16000Nm

560mm



Application:

TA/HXG Shaft Mounted Gear Reduction Box Speed Reducer With Anti Backlash 0





TA/HXG Shaft Mounted Gear Reduction Box Speed Reducer With Anti Backlash 1TA/HXG Shaft Mounted Gear Reduction Box Speed Reducer With Anti Backlash 2
