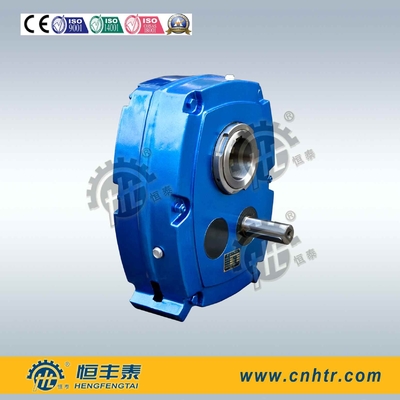

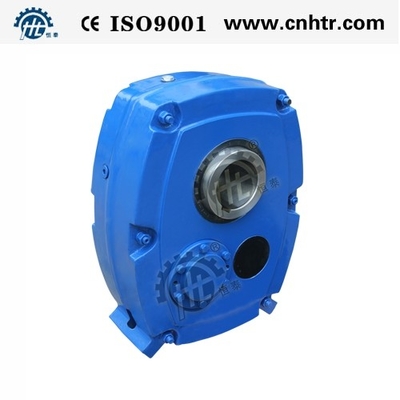

Hxgf Series Fenner Smsr Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt

  • Hxgf Series Fenner Smsr Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt
  • Hxgf Series Fenner Smsr Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt
Certification CE; ISO9001; ISO4001;TUV; SGS
Model Number Smsr B/C/D/E/F/G/H/J
Minimum Order Quantity 1 Pieces
Price USD 100-1000
Packaging Details Wooden Case, Standard Export Package
Delivery Time 15-25 Days
Payment Terms T/T; L/C
Supply Ability 2000 Pieces Per Month
Product Details
Housing HT250 Hollow Bore 30-120mm
Oil Seal NAK,KSK Gear Material 20CrMnTi
Ratio 5; 13; 15; 20 Mounting Position Shaft Mounted
Sapres With Torque Arm Shaft 30~120 Mm
Highlight

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Quick Details for Fenner Smsr Hxgf Series Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt:





Trade Mark



Hengtai Gearbox



Gear Arrangement



Shaft Mounted Gearbox



Mounting Position



Shaft Mounted



Output Torque



180-17000 N.M



Rated Power



0.92-226 Kw



Transmission Ratio



5- 31



Output Shaft



Keyed Hollow Output Shaft



Color



Ral 5010& 7031& 7040


Description:


Model
Number


Input
shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque
arm length

Input Speed

Reduction Ratio:


B

19mm

30mm



277Nm

220mm



1400rpm
900rpm
500rpm



5:1
13:1
20:1

C

22mm

40mm



468Nm

240mm

D

25mm

50mm



783Nm

260mm

E

28mm

55mm



1194Nm

280mm

F

32mm

75mm



1881Nm

300mm

G

42mm

85mm



2970Nm

320mm

H

48mm

100mm



4680Nm

380mm

J

55mm

125mm



7449Nm

520mm



Applications:

Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:


Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture



Dimension:


SIZES

A

B

C

D

E

F

Input Shaft Keyway

H

J

K

P

T

U

V

W

X

Y

Hub Dia

STD

ALT

B

134

30

40

63

59

80

19j6

6x3.5x50

104

131

55

10

186

226

81

75

25

79

C

142

40

50

72

65

90

22j6

6x3.5x5.6

108

156

59

10

218

270

96

90

31

95

D

152

50

55

77

68

100

25j6

8x4x63

118

188

76

12

258

328

117

110

37

116

E

170

55

65

85

76

115

28j6

8x4x70

130

222

90

12

278

377

129

125

43

133

F

189

65

75

90

87

130

32k6

10x5x70

149

242

98

16

317

414

143

141

50

150

G

212

75

85

105

110

145

42k6

12x5x90

172

277

110

16

365

468

162

156

56

166

H

242

85

100

116

115

170

48K6

14x5.5x100

190

330

88

16

434

550

195

189

62

200




Hxgf Series Fenner Smsr Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt 0Hxgf Series Fenner Smsr Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt 1

Hxgf Series Fenner Smsr Shaft Mounted Gearbox In Power Transmission Crusher Conveyor Belt 2
