Industrial Helical Shaft Mounted Motor Speed Reducer Zero Backlash

  • Industrial Helical Shaft Mounted Motor Speed Reducer Zero Backlash
  • Industrial Helical Shaft Mounted Motor Speed Reducer Zero Backlash
Certification CE,ISO,SGS,TUV, etc
Model Number HXG 30-125
Minimum Order Quantity 10 Pieces
Price USD 100-1700
Delivery Time 25 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gear Helical Rated Power 0.92-226kw
Ratio 5-31 Torque 180-17000nm
Name Motor Speed Reducer Application HPC Cone Crusher
Highlight

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Quick Details:







HXG(TA) Shaft Mounted Speed Reducer





Model



 Ratio Standard bore (mm) Power(Kw) Rated torque(N.m)
30

5;
7;
10;

12.5;
15;
20;
25;
31

30

 3 180
35

35

 5.5 420
40

40; 45

 15 950
45 45; 50; 55 22.5 1400
50 50; 55; 60 37 2300
60 60; 65; 70 55 3600
70

70; 85;

 78 5100
80

80; 100

 110 7000
100

100; 120

 160 11000
125

125; 135

 200

17000







Description:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Hxg35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Hxg40-40D



24mm

40mm



1350Nm

240mm

Hxg45-45D



28mm

45mm



2050Nm

260mm

Hxg50-50D



42mm

50mm



2100Nm

280mm

Hxg60-60D



48mm

60mm



3500Nm

300mm

Hxg70-70D



48mm

70mm



4900Nm

320mm

Hxf80-80D



55mm

80mm



6600Nm

380mm

Hxg100-100D



55mm

100mm



10500Nm

520mm

Hxg124-125D



60mm

125mm



16000Nm

560mm


Application:



HPC Cone Crusher
Deep Rotor VSI Crusher
B Series VSI Crusher
CS Cone Crusher
Impact Crusher
Secondary Impact Crusher
Primary Impact Crusher
Jaw Crusher
JC Series Jaw Crusher
HJ Series Jaw Crusher

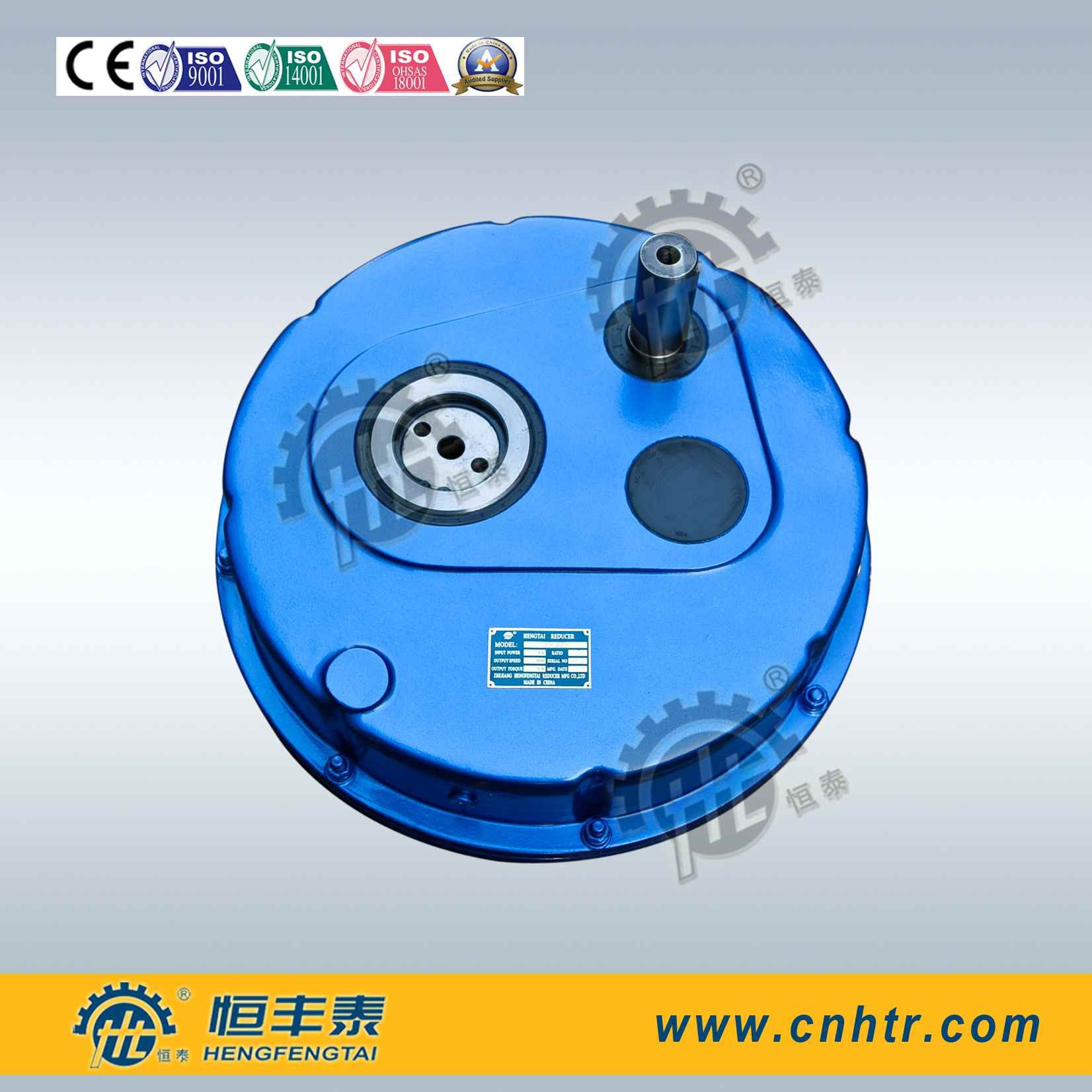

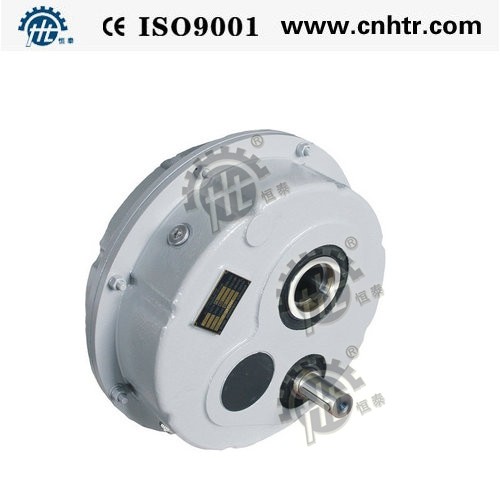

Industrial Helical Shaft Mounted Motor Speed Reducer Zero Backlash 0Industrial Helical Shaft Mounted Motor Speed Reducer Zero Backlash 1

Industrial Helical Shaft Mounted Motor Speed Reducer Zero Backlash 2
