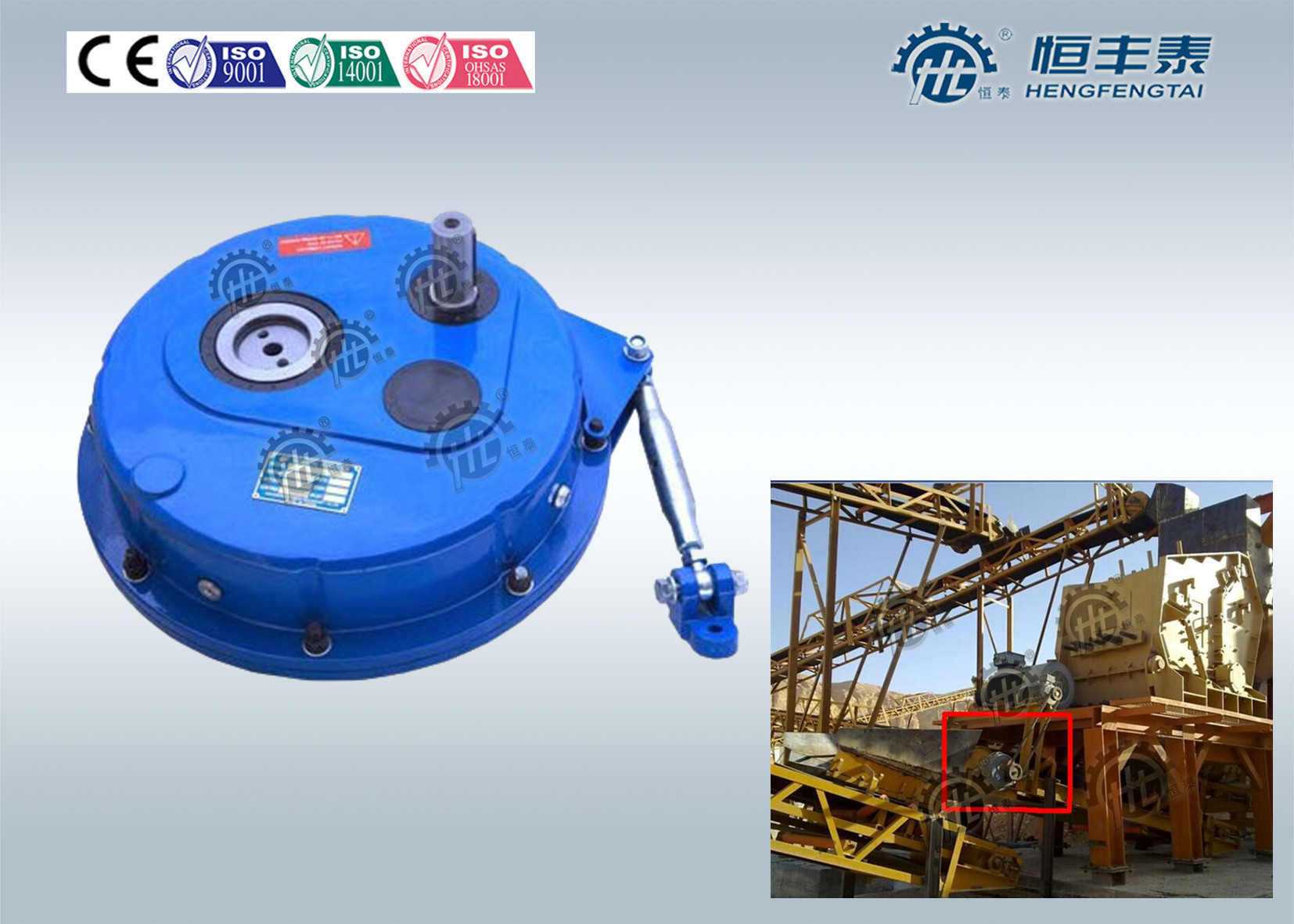

HXG Conveyor Shaft Mounted Speed Reducer Parallel Shaft Helical Gearbox

  • HXG Conveyor Shaft Mounted Speed Reducer Parallel Shaft Helical Gearbox
Certification CE,ISO9001:2008,TUV,SGS
Model Number HXG series
Minimum Order Quantity 50 PIECES
Price USD500PCS
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 7-30DAYS
Payment Terms T/T or LC
Supply Ability 1500 PCS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Reduction Ratio 5/1, 15/1, 20/1, 25/1 Normal Ratio 15/1
Finishing Smooth Housing Material HT250
Bearings NSK, SKF, Etc Stages One, Two Stage
Highlight

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Descriptions:

Gravel Conveyor Shaft Mounted Speed Reducer ratio 15  with great material.



Housing: Cast Iron HT250



Gears: 20CrMnTi, the surface hardness after carburizing is 58-63HRC





The grade of Gear WE CAN DO:



Standard ISO GB ANSI AGMA JIS DIN BS FN
Grade 6 6 3 12 2 6 A2 C





Quick Details:



  • Model Number: HXG30-HXG125
  •
  • Ratio: 15
  •
  • Output Torque: 180~17000 Nm
  •
  • Rated Power: 0.92~226 Kw
  •
  • Output Speed: 15.1~280 rpm
  •
  • Input Speed: 500~1400 rpm



Your benefits:

  1. Small volume
  2. Simple structure and convenient to be installed and maintained
  3. Strong capacity of being overloaded
  4. Long service life

Specifications:





Ratio Input Speed (rpm)

Output Speed

(rpm)

 Model Rated output torque(Nm) Rated input power(Kw)

Overhung loads

(N)
15/1 1400 93 HXG35-35D 350 3.6 500

HXG40-40D

HXG40-45D

 750 7.7 850

HXG45-45D

HXG45-50D

HXG45-55D

 1200 12.3 1150

HXG50-50D

HXG50-55D

HXG50-60D

 1900 19.5 1700

HXG60-60D

HXG60-70D

 3200 33.0 2600

HXG70-70D

HXG70-85D

 4400 45.0 3400

HXG80-80D

HXG80-100D

 6100 63.0 4200

HXG100-100D

HXG100-125D

 9500 98.0 5000

HXG125-125D

HXG125-135D

 12500 128.0 5500



HXG application:



HXG Conveyor Shaft Mounted Speed Reducer Parallel Shaft Helical Gearbox 0

HXG Conveyor Shaft Mounted Speed Reducer Parallel Shaft Helical Gearbox 1
