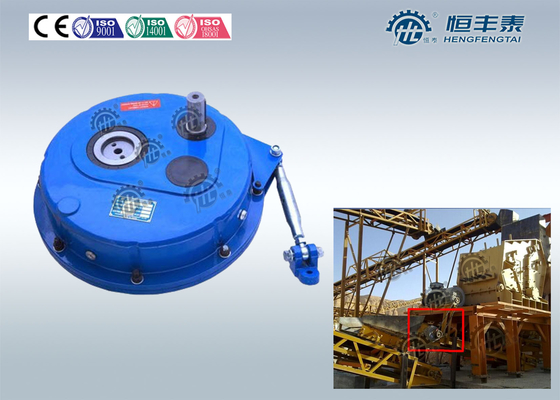

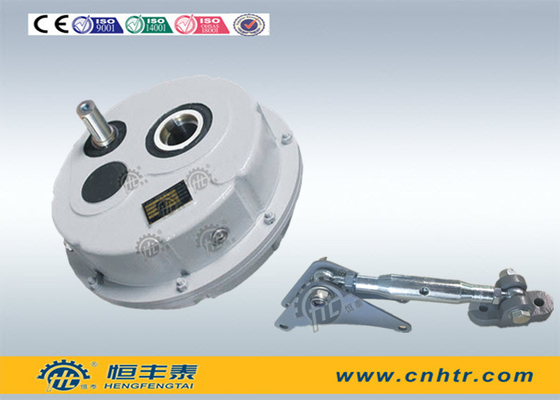

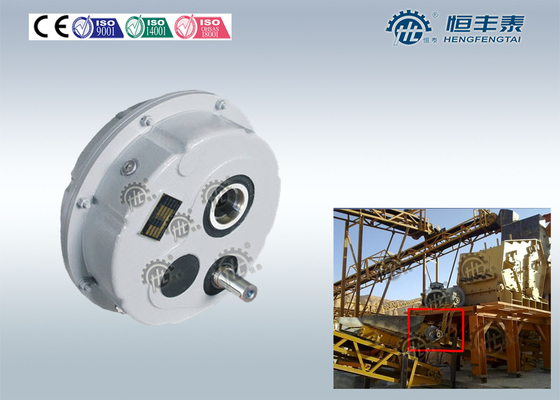

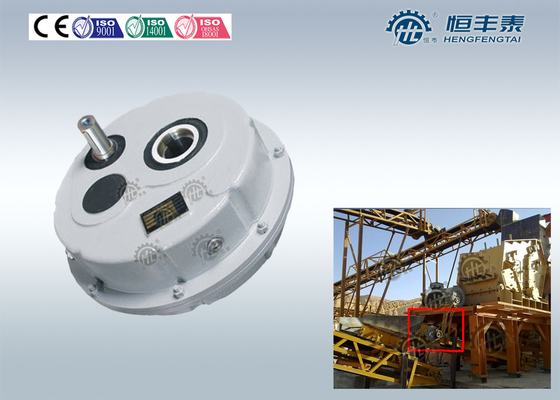

Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner

  • Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner
  • Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner
  • Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner
  • Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner
Certification ISO14001,CE,ISO9001:2008,GB28001
Model Number HXG50
Minimum Order Quantity 1 pc
Price USD 120-260 PC
Packaging Details 12 sets per wooden carton,carton size 1.13x1x1.1m
Delivery Time 30 days
Payment Terms D/P, L/C, T/T
Supply Ability 1000 pieces per 15 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Gray Ral 5010 Hollow Shaft Diameter 50,55,60mm
Weight 62kg Gear Mateiral 20CrMnTi
Input Shaft Diameter 38mm Ratio 15
Highlight

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner




Descriptions:



Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner with great material.



The grade of Gear WE CAN DO:

Standard ISO GB ANSI AGMA JIS DIN BS FN
Grade 6 6 3 12 2 6 A2 C





Quick Details:



1. Model Number: HXG50D

​2. Ratio:15

​3. Output Torque: 1900 Nm

​4. Rated Power: 19.5 Kw

​5. Output Speed: 93 rpm

​6. Input Speed: 1400 rpm





Other Models:



Shaft Mounted Speed Reducer Gearbox With Tensioner Ratio 15



Ratio Input Speed (rpm)

Output Speed

(rpm)

 Model Rated output torque(Nm) Rated input power(Kw)

Overhung loads

(N)
15/1 1400 93 HXG35-35D 350 3.6 500

HXG40-40D

HXG40-45D

 750 7.7 850

HXG45-45D

HXG45-50D

HXG45-55D

 1200 12.3 1150

HXG50-50D

HXG50-55D

HXG50-60D

 1900 19.5 1700

HXG60-60D

HXG60-70D

 3200 33.0 2600

HXG70-70D

HXG70-85D

 4400 45.0 3400

HXG80-80D

HXG80-100D

 6100 63.0 4200

HXG100-100D

HXG100-125D

 9500 98.0 5000

HXG125-125D

HXG125-135D

 12500 128.0 5500





Dimensions of HXG50D:



a1

a2

H

h1

B

b1

b2

b3

b4

D1

D2

d

E

e

g

f1

t1

S

s1

L

140

117

143

40

169

68

15

24

46

435

410

38

80

70

5

41

10

M12

11

194






Two Stage Reduction Ratio 15 HXG50 Shaft Mounted Speed Reducer Gearbox With Tensioner 0
