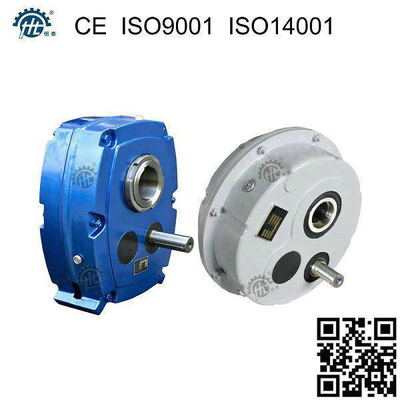

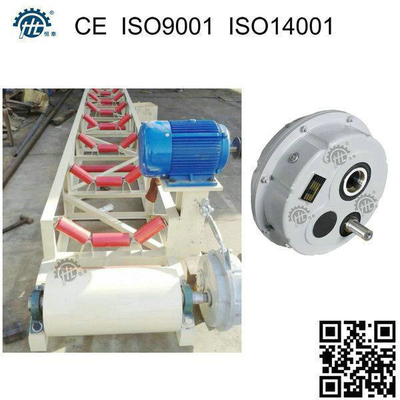

Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR

  • Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR
  • Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR
Certification CE, ISO9001, ISO14001, SGS
Model Number HXG30-HXG125; SMSR C, D, E, F, G, H, J, K
Minimum Order Quantity 1 pcs
Price USD120.00-USD2000.00
Packaging Details 8 or 12 pcs packed in 1 pallet
Delivery Time 18-35 day according to qty.
Payment Terms TT, L/C and others
Supply Ability 5000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Shaft 19, 22, 24, 25, 28, 32, 38, 42, 48, 55, 60 Mm Output Shaft 30-135 Mm
Spares Torque Arm Anti-back Backstop
Color RAL5010(blue), RAL7031(grey), RAL7040(white) Torque 110-17000 N.m
Power 1.1-200 KW Ratio 5, 7, 10, 12.5(13), 15, 20, 25, 31
Highlight

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR:





HXG(TA) shaft mounted gearbox:



Type Ratio Model Standard bore (mm) Rated power(KW) Rated torque(N.m)

Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 0

5;

7;

10;

12.5;

15;

20;

25;

31

 HXG30 30 3 180
HXG35 35 5.5 420
HXG40 40; 45 15 950
HXG45 45; 50; 55 22.5 1400
HXG50 50; 55; 60 37 2300
HXG60 60; 65; 70 55 3600
HXG70 70; 85; 78 5100
HXG80 80; 100 110 7000
HXG100 100; 120 160 11000
HXG125 125; 135 200 17000







SMSR shaft mounted reducer:

Type Ratio Model Standard bore (mm) Rated power(KW) Rated torque(N.m)

Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 1





5;

13;

15;

20;



 HXGF30 (SMSR-B) 30; 40 5.5 280
HXGF40 (SMSR-C) 40; 50 7.5 470
HXGF50 (SMSR-D) 50; 55 15 780
HXGF55  (SMSR-E) 55; 60; 65 22.5 1200
HXGF65 (SMSR-F) 65; 70; 75 30 1800
HXGF75 (SMSR-G) 75; 85; 55 2900
HXGF85 (SMSR-H) 85; 100; 75 4600
HXGF100 (SMSR-J) 100; 120 110



7500





Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 2









About us:



Company name: Zhejiang Hengfengtai Reducer Mfg.Co.,Ltd

Founding year:    1991

Area:                   50000 m²

Employee:           400
Qualifications:   ISO9001:2008, CE, ISO14001, GB/T28001 etc



Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 3 Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 4

Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 5 Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 6



Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 7



Torque arm mounted belt conveyor gearbox shaft mounted speed reducer TA and SMSR 8
